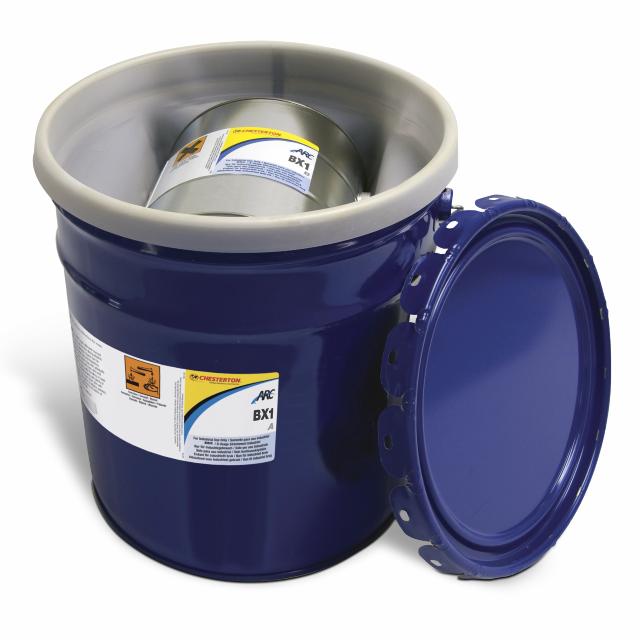

    ARC BX1

    Trowel-Grade Coating for Coarse-Particle, Severe-Sliding Wear
    100% solids, modified epoxy formulation reinforced with a proprietary blend of ceramic beads and powders for extremely abrasive sliding wear environments.



    Product Features

    • Extends equipment life exposed to coarse particle wear
    • Improves safety by reducing hotwork
    • Simplifies maintenance procedures
    • Reduces the need for spare parts
    • High volumetric ceramic particle loading
    • Applied by trowel or plastic applicator tool
    • Applied at a minimum thickness of 6 mm (1/4"") or more
    • Approved to NSF Std 61 for drinking water

    Product Literature

    Technical Data

    Applications
    • Separators and cyclones
    • Hoppers/chutes
    • Coal pulverizers
    • Hydro pulpers
    • Wear plates
    • Slurry pumps
    • Pipe elbows
    • Pulverized fuel lines
    • Screws
    Dry Temperature (Max) 205°C (400°F)
    Wet Temperature (Max) 95°C (205°F)
    Tensile Adhesion (ASTM D4541) - kg/cm2 - MPa (psi) 238 – 23.5 (3400)
    Color Gray
    Available Container Sizes

    Nominal, based on a 6 mm (240 mil) thickness

    • 1.5 liter kit covers 0.25 m2 (2.69 ft2)
    • 12 kg kit covers 0.82 m2 (8.82 ft2)

    Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions plus tools.
