150/150L
- Simple Installation and Increased Reliability Plant-Wide for General Duty Applications

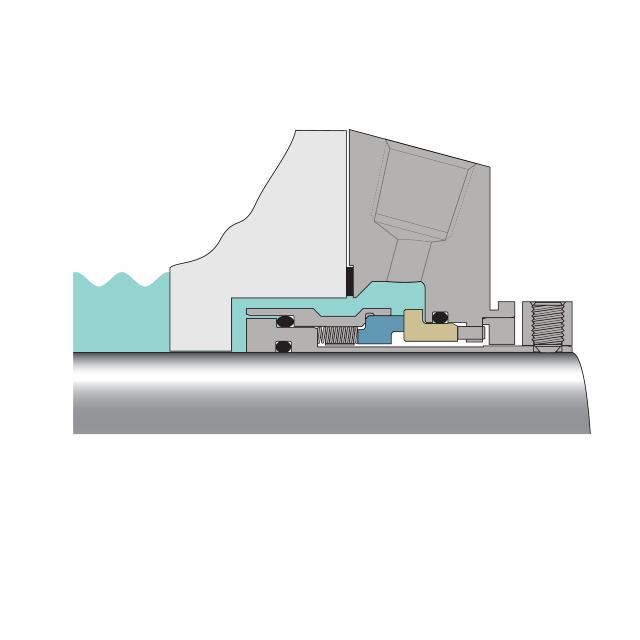

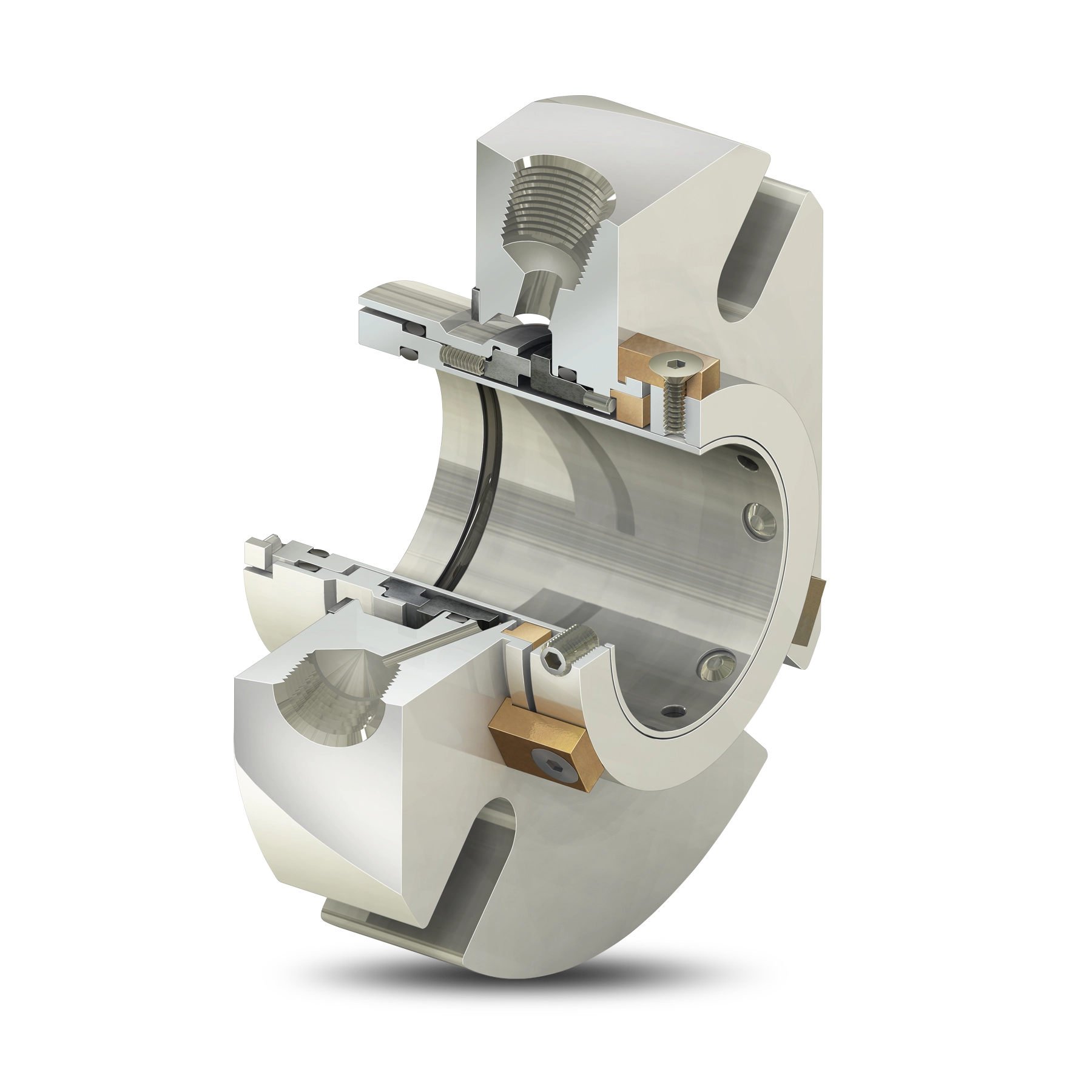

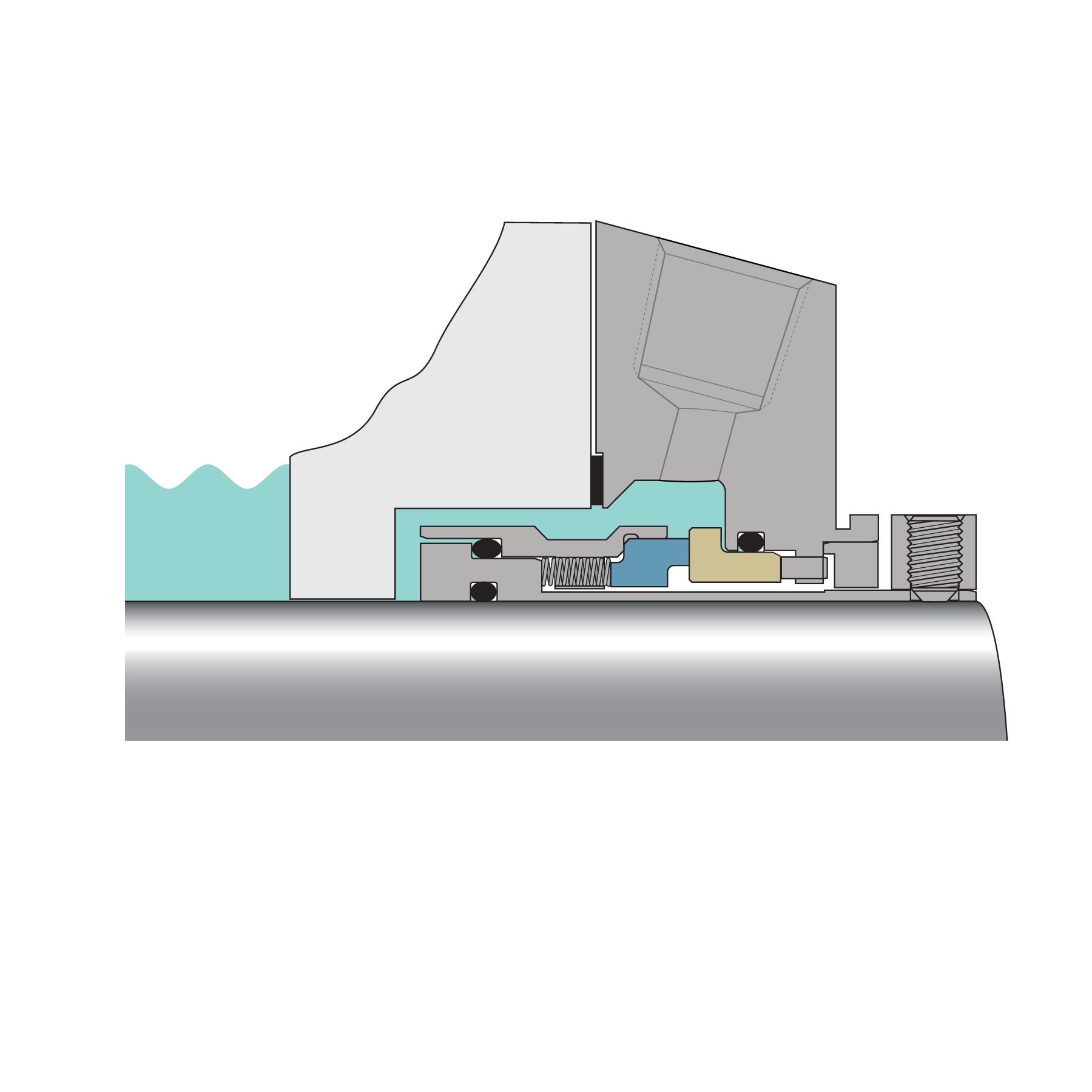

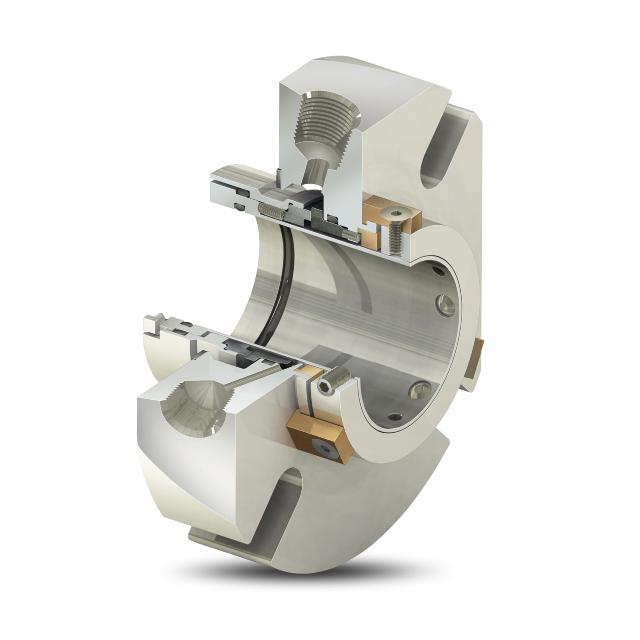

Designed for upgrading equipment sealed with packing or component style mechanical seals, the 150 single seal makes general industry sealing simple, reliable, and affordable. With a compact cartridge profile designed to fit standard ANSI/ISO process pumps, the seal is engineered to install easily and reliably. The single screw clamp lock ring design (150L) further increases efficiency and reduces installation error.
Product Features
-
- Economical upgrade from packing and component seals
- Field repairable cartridge design
- Engineered gland annulus increases cooling and improves seal reliability
Technical Data
| Size Range | 25 mm to 120 mm (1.000 inch to 4.750 inch) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ISO-3069C, ASME B73.1, ACS |
| Variants | Single Screw, Clamp Lock Ring |
Materials
| Faces | CB, TC, SSC |
|---|---|
| Metallurgy | EN 1.4401 (316SS), Other Metallurgies available on request |
| Springs | EN 2.4819 (Alloy C-276) |
Operating Conditions
| Pressure | 711 mm (28") Hg Vacuum to 20 BARg (300 PSIg) |
|---|---|
| Temperature | -30 to 205 °C (-20 to 400 °F) |
| Speed | 20 m/s ( 4000 fpm ) |
| Notes | Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering. |
