1510/1510L
- Simple Installation and Increased Reliability Plant-Wide for General Duty Applications

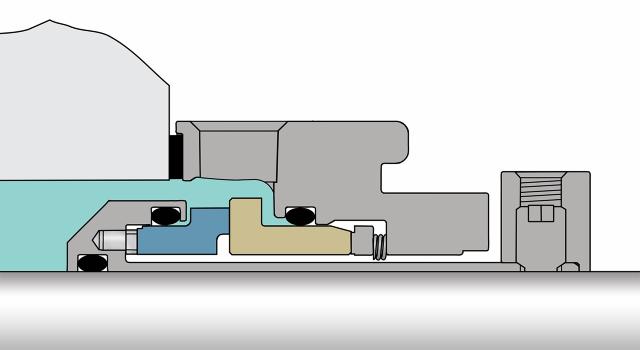

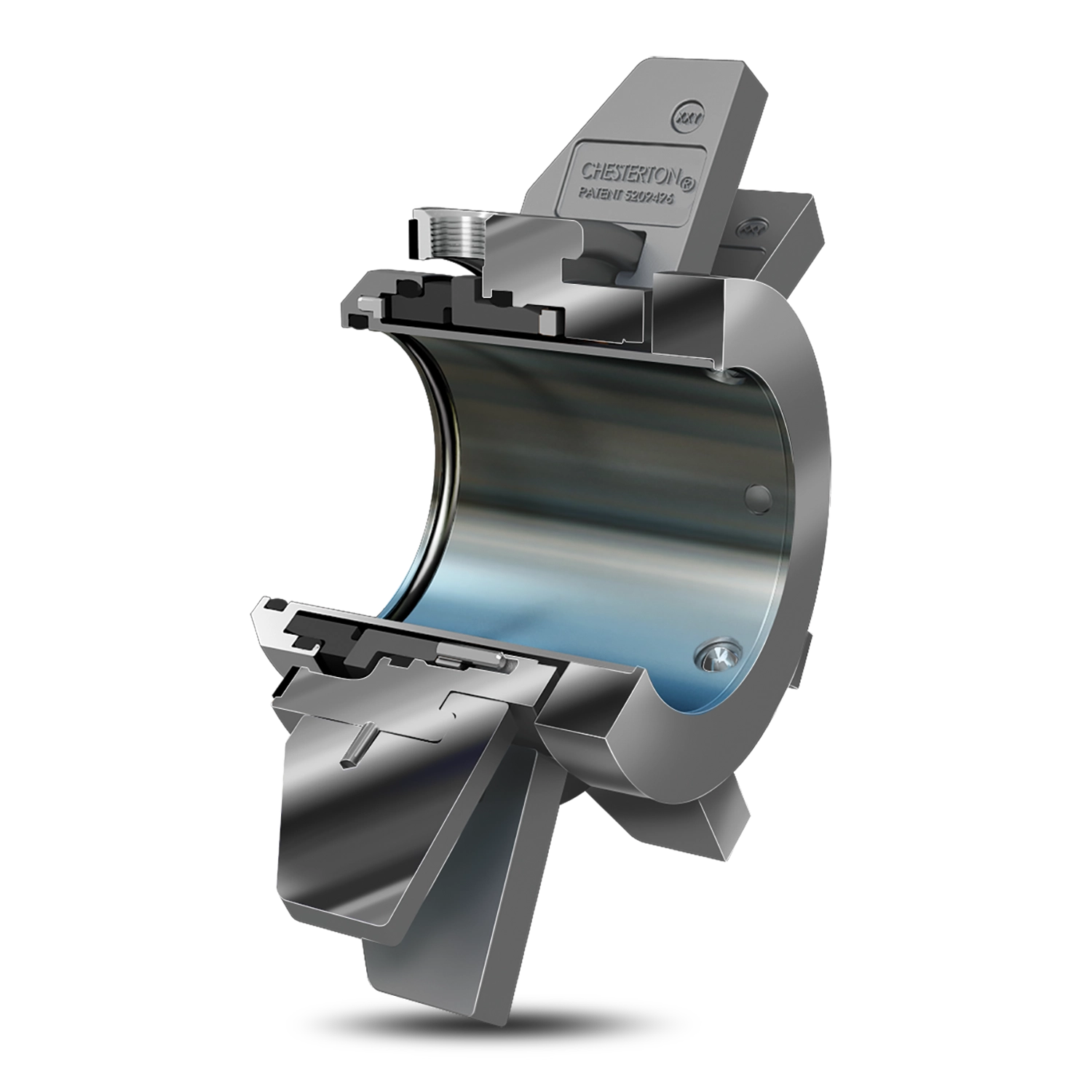

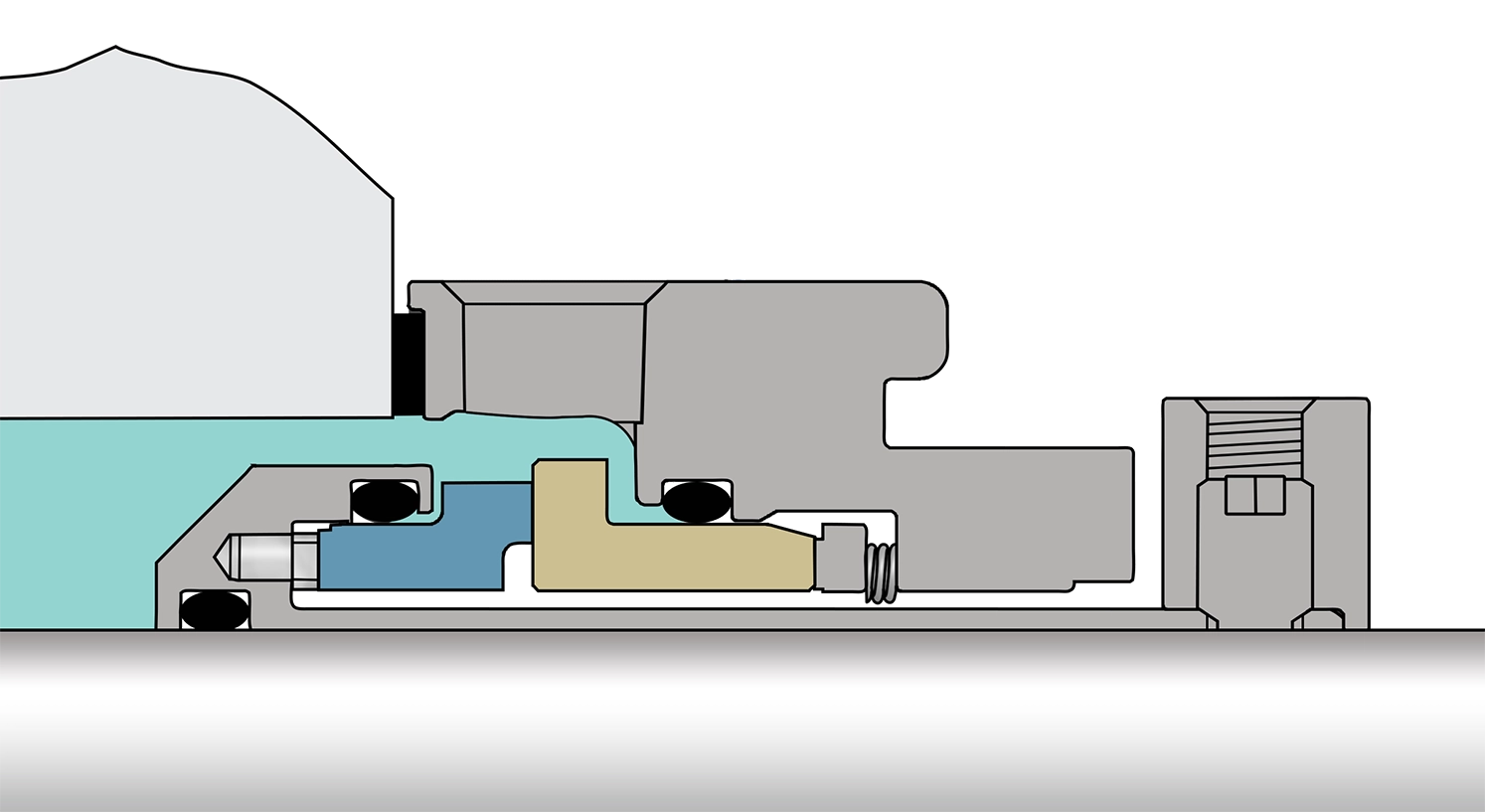

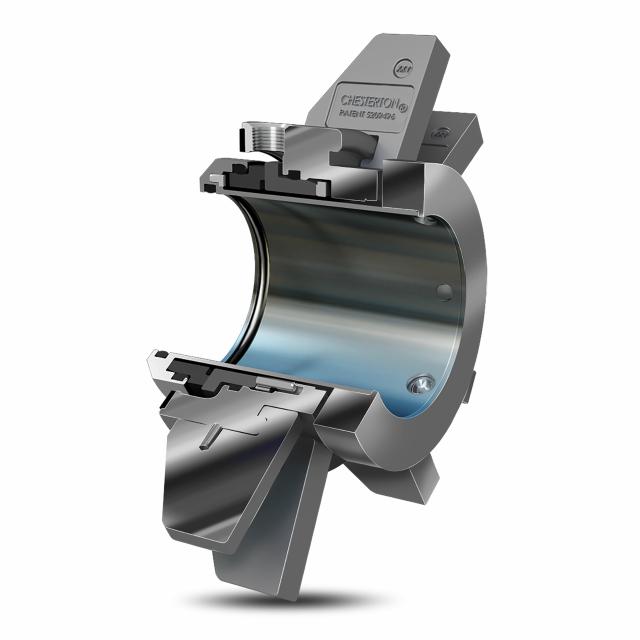

Maximize maintenance efficiency and increase plant productivity with the 1510 Single Cartridge Seal. Designed to fit process equipment plant-wide by incorporating Chesterton T.A.B.S.™ (Tapered Adjustable Bolting System), the compact profile makes seal installation easy. The use of monolithic seal faces and true non-fretting construction offers reliability through temperature variations and intermittent operations. Impeller adjustments after seal fitment are accommodated with the unique resettable centering strap, even when adjustment is required between routine maintenance. Incorporating Chesterton 5 key features of good mechanical seal design, the 1510 sets the new standard for general duty cartridge seals.
Product Features
-
- Reliable through temperature cycling and intermittent process with monolithic seal faces
- In-service impeller adjustment is possible with the unique centering strap
- Mounts easily on various types of rotating equipment using Chesterton T.A.B.S.
- Prevents damage to your equipment and internal components via true non-fretting design
Technical Data
| Size Range | 25 mm to 120 mm (1.000 inch to 4.750 inch) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ISO-3069C, ASME B73.1, ACS, WRAS |
| Variants | 1510L, Single Screw, Clamp Lock Ring |
Materials
| Faces | CB, TC, SSC |
|---|---|
| Metallurgy | Other Metallurgies available on request |
| Springs | EN 2.4819 (Alloy C-276) |
Operating Conditions
| Pressure | 711 mm (28") Hg Vacuum to 20 BARg (300 PSIg) |
|---|---|
| Temperature | -55 to 300 °C (-67 to 570 °F) |
| Speed | 25 m/s ( 5000 fpm ) |
| Notes | Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering. |
Let's talk
For inquires about products, sales, or to request a quote, please contact our Sales Office.
Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Case Study: Chesterton 1510 Seal and Connect Monitoring Increase MTBR (English) | 422 KB |
