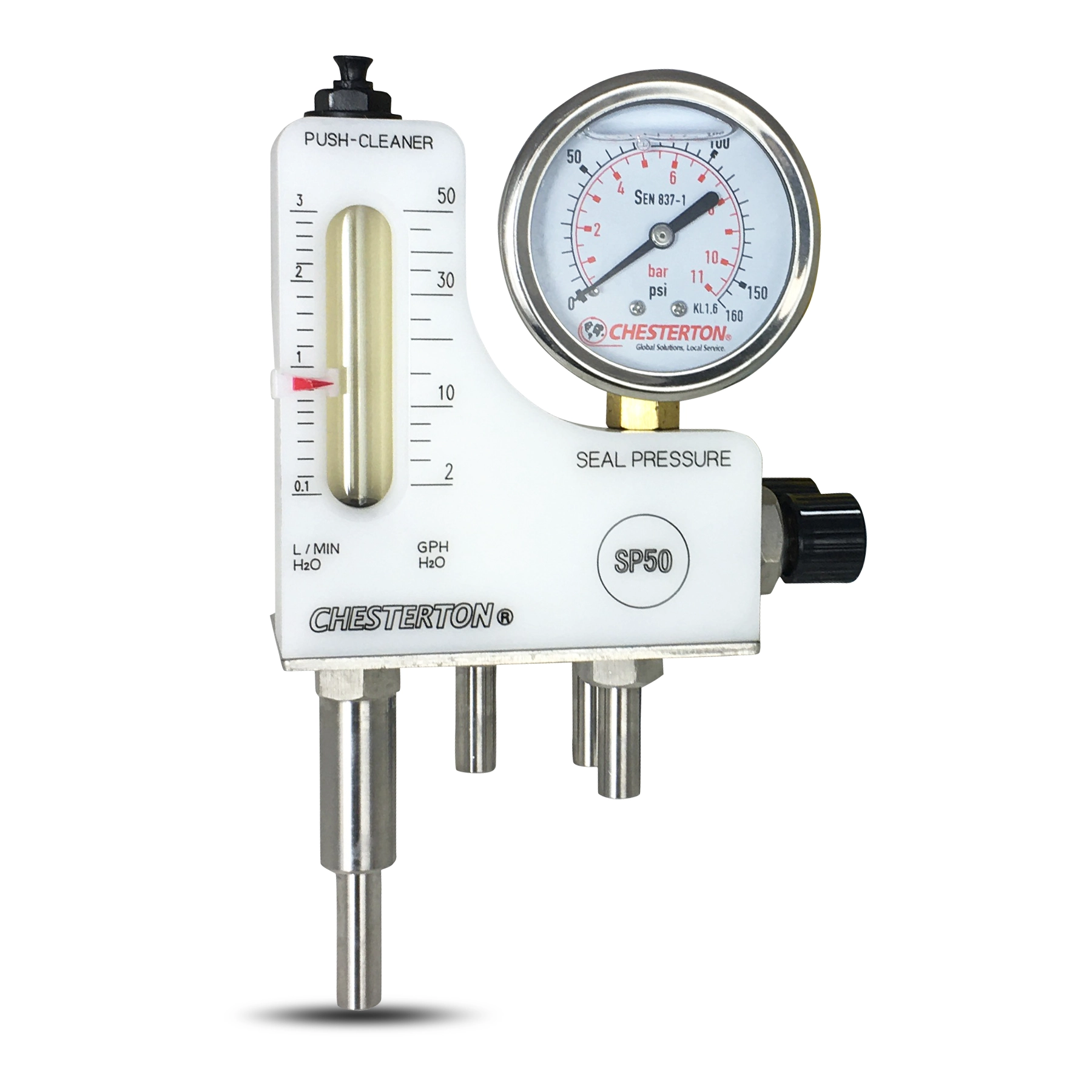

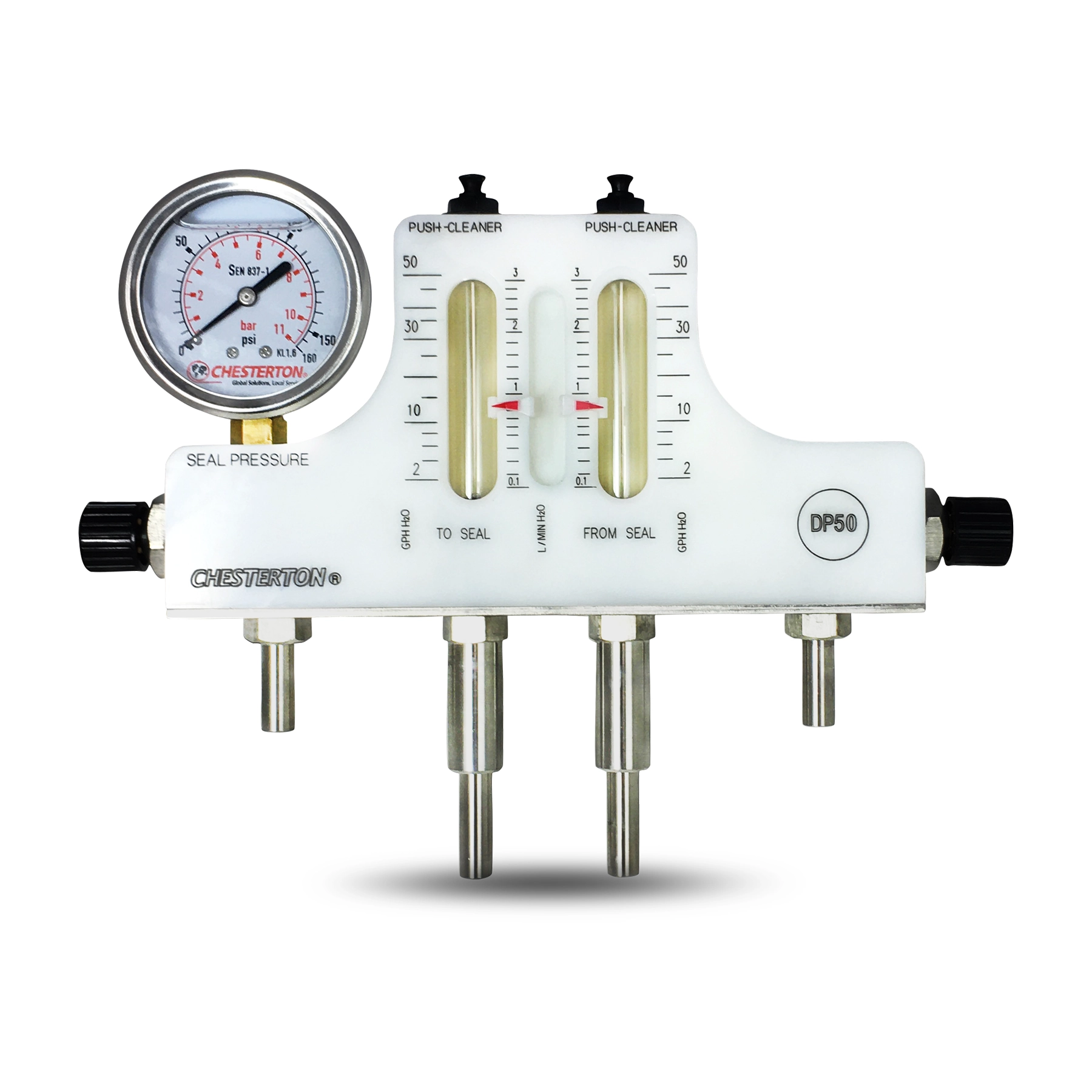

Flow Guardian™
- Flowmeters for Single and Double Seals
Chesterton Flow Guardian flow meters are specifically designed to supply uninterrupted, regulated seal flush water and deliver operational efficiency when used with mechanical seals and packings. Adding Flow Guardian meters can help to reduce costly equipment failures as well as contribute to plant water conservation initiatives.
Product Features
-
- Built-in plunger cleaner and pressure regulator
- Rugged, compact design
- Tamper-proof locking system
- Alarm sensor-ready
Technical Data
| Connections | 3/8" compression or hose barb connectors |
|---|
Materials
| Material |
Polyoxymethylene (POM) |
|---|
Operating Conditions
| Temperature | 100 C (212 F) |
|---|---|
| Flow Range | 2-50 GPH (0.1-3 liters/min) |
| Pressure |
10 bar g (145 psig) |
