359
- Graphite Gasket

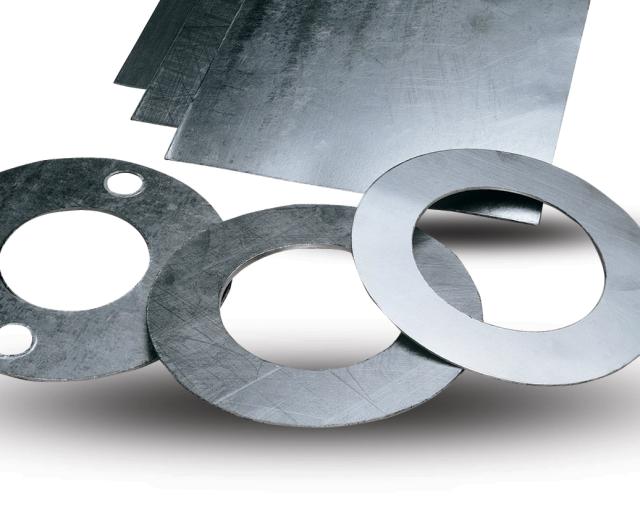

Chesterton 359 is a cost-effective, general purpose graphite sheet reinforced with 304 Stainless Steel foil insert. Its excellent chemical resistance and thermal stability make this sheet a superior choice to compressed fiber sheet gasket for virtually all applications in the plant.
Product Features
-
- Cost effective
- General purpose
- Graphite sheet reinforced with 304 Stainless Steel foil insert
Technical Data
| Applications | Excellent chemical resistance and thermal stability makes this sheet suitable for virtually all applications in the plant |
|---|---|
| Presssure Limit | 140 bar g (2000 psig) |
| Temperature Limit |
870°C (1600°F) non-oxidizing service; 425°C (800°F) oxidizing service |
| Size Low | 0.75 mm ( 0.031 inch ) |
| Size High | 3.2 mm ( 0.125 inch ) |
