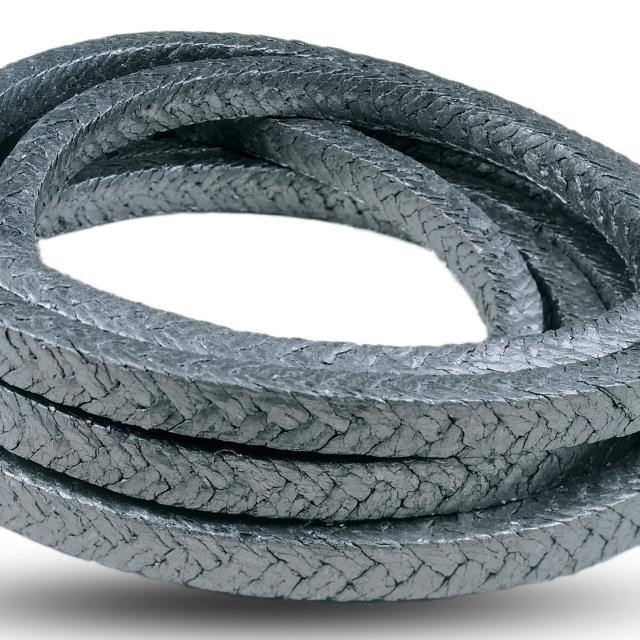

1400R
- Carbon-Reinforced Graphite Tape
Chesterton 1400R is a unique, reinforced, braided, graphite tape packing with a corrosion inhibitor. The carbon yarn reinforcement is provided within the graphite tape yarn as well as the braided construction. 1400R forms a homogeneous mass under gland pressure, so that leakage is minimized in the packing set. The all-carbon/ graphite set withstands higher shaft speeds while limiting shaft/stem friction. The structural carbon fiber reinforcement drastically lowers extrusion when 1400R sets are installed in valves at higher pressures. In addition to its excellent sealing capabilities in rotating equipment, 1400R is a superior valve sealing material. This dual purpose design makes it a truly universal mechanical packing.
Product Features
-
- Best choice for high temperature
- Eliminates flush and effectively reduces stuffing box leakage
- Self-lubricating to reduce 455°C (850°F) oxidizing atmosphere shaft or stem scoring and extend packing life
Technical Data
| Applications | Agitators, boiler feed pumps, condensate pumps, pulpers, stock pumps, refiners, mixers, also ideal for use in steam valves |
|---|---|
| Speed Max | 20 m/s ( 4000 fpm ) |
| Presssure Limit |
275 bar g (4000 psig) valves; 14 bar g (200 psig) pumps |
| Temperature Limit |
650°C (1200°F) steam; 455°C (850°F) oxidizing atmosphere |
| Chemical Resistance | pH 0 – 14 except oleum, fuming nitric acid, and aqua regia |
| Size Low | 3.2 mm ( 0.125 inch ) |
| Size High | 1 mm ( 25.4 inch ) |
