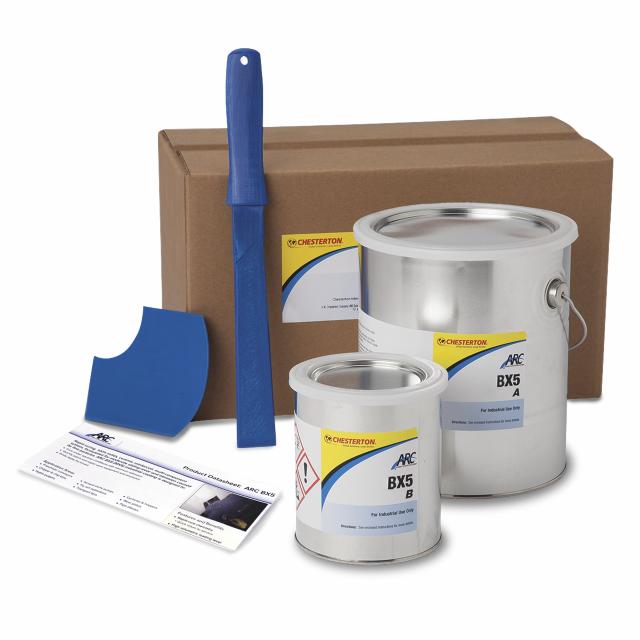

ARC BX5

Rapid-Curing, Trowel-Grade Coating for Fine-Particle Moderate Sliding Wear
Rapid curing, 100% solids, ceramic-reinforced, multi-component system, formulated for moderate sliding-wear and abrasion caused by fine particles.



Product Features

  • High adhesion
  • Greater than 60% ceramic reinforcement
  • Surface tolerant
  • Cure under adverse conditions with maximum adhesion
  • Quickly patch and repair worn equipment and structures
  • Easily apply by trowel

Technical Data

Applications
  • Pneumatic conveyors
  • Chipper and chip bins
  • Turbo separators
  • Ni-hard slurry pumps
  • Fly ash separators
  • Cyclones and hoppers
  • Transport fans
  • Hydro pulpers
  • Wear plates
  • Pipe elbows
  • Pulverizers
  • Screw conveyor

Dry Temperature Max 248 °F ( 120 °C )
Wet Temperature Max 140 °F ( 60 °C )
Tensile Adhesion 22.1 Mpa ( )
Color Gray, Red
Available Container Sizes

Nominal, based on a 3 mm (120 mil) thickness

  • 0.75 liter kit covers 0.25 m2 (2.69 ft2)
  • 2.5 liter kit covers 0.83 m2 (8.93 ft2)

Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions plus tools.
