1. ARC Industrial Coatings
    2. Abrasion Resistant Composites for Metal

    ARC I BX1 RC

    Rapid-Curing, Trowel-Grade Coating for Coarse Particle Severe Sliding Wear with Impact

    A rapid-curing high impact-resistant, 100% solids, epoxy/urethane hybrid with ceramic reinforcements for severe wear regions and impact.

    Not available in EMEA.



    Product Features

    • Bonds to metal, concrete, ceramic, and many plastics
    • High impact resistance
    • Simplifies maintenance proc• High volumetric ceramic particle loading
    • Applied by trowel or plastic applicator tool
    • Applied at minimum thickness of 6 mm (1/4"") or more
    • Cures to functional state in less than 4 hours

    Product Literature

    Technical Data

    Applications
    • Rubber pump liners
    • Slurry pump cutwaters
    • Pipe elbows
    • Rubber-lined agitators
    • Tile-lined chutes
    • Pulverized fuel lines
    • Vibrating screen decks
    • FD/ID fan housing
    • Discharge plates
    Dry Temperature (Max) 205ºC (400ºF)
    Wet Temperature (Max) 95ºC (203ºF)
    Tensile Adhesion (ASTM D4541) - kg/cm2 - MPa (psi) 238.2 – 23.4 (3390)
    Color Brown

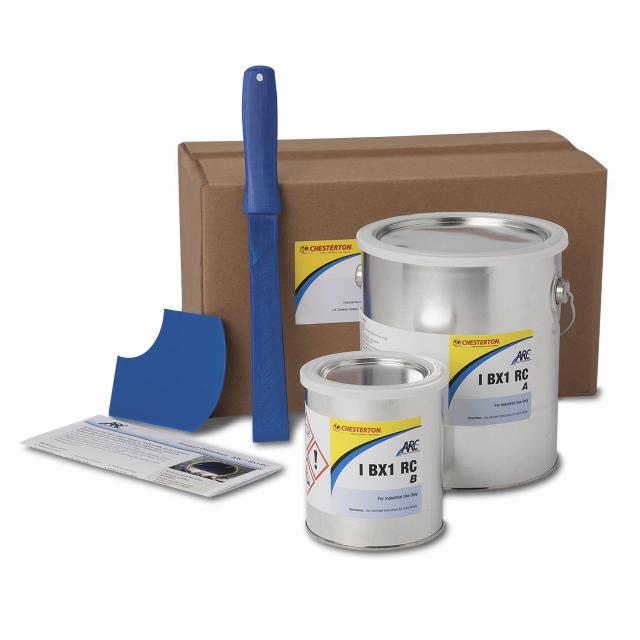

    Available Container Sizes

    ​Nominal, based on a 6 mm (240 mil) thickness

    • 2.5 liter kit covers 0.42 m2 (4.52 ft2)​

    Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions plus tools.
