ARC MX FG

Abrasion Resistant Coating for Fine Particle Wear
ARC MX FG is a trowel applied 100% solids, zero VOC, ceramic-reinforced epoxy coating designed for protecting surfaces against dry and wet slurry abrasive flow. This two-part system complies to 21 CFR 175.300 and is suited for direct food contact.



Product Features

  • Tough, ceramic-reinforced coating that resists broad range of slurries
  • Protects metal surfaces from extreme sliding-wear and abrasion caused by fine particles
  • Restores worn equipment to near original condition
  • Provides a longer lasting alternative to rubber linings and ceramic wear tiles
  • Extends life of equipment exposed to fine particle wear
  • Resists a broad pH spectrum
  • Applies easily by trowel

Technical Data

Applications
  • Cyclones
  • Valves
  • Hopper bins
  • Transport screws
  • Wear plates
  • Slurry pumps
  • Agitators
  • Mixers
  • Cleaner cones
  • Pipe spools
  • Pipe elbows
  • Pulverizers
Notes

Complies with 21 CFR 175.300 for direct food contact as follows:

  • Type II – Acidic (pH 5.0 or below), aqueous products; may contain salt or sugar or both, including oil-in-water emulsions of low or high fat content food.
  • Type III – Aqueous, acid or non-acid products containing free oil or fat; may contain salt, and including water-in-oil emulsions of low or high fat content.
  • Type IVA – Dairy products and modifications: Water in oil emulsion, high or low fat.
  • Type IVB – Dairy products and modifications: Oil in water emulsion, high or low fat.
  • Type V – Low moisture fats and oils. Condition C.
  • Type VIII – Dry solid foods.
Dry Temperature Max 400 °F ( 205 °C )
Wet Temperature Max 203 °F ( 95 °C )
Tensile Adhesion 22.1 Mpa ( )
Color White
Available Container Sizes

Nominal, based on a 3 mm (120 mils) thickness

  • 1.5 liter kit covers 0.5 m2 (5.4 ft2)​
  • 5 liter kit covers 1.67 m2 (18 ft2)​

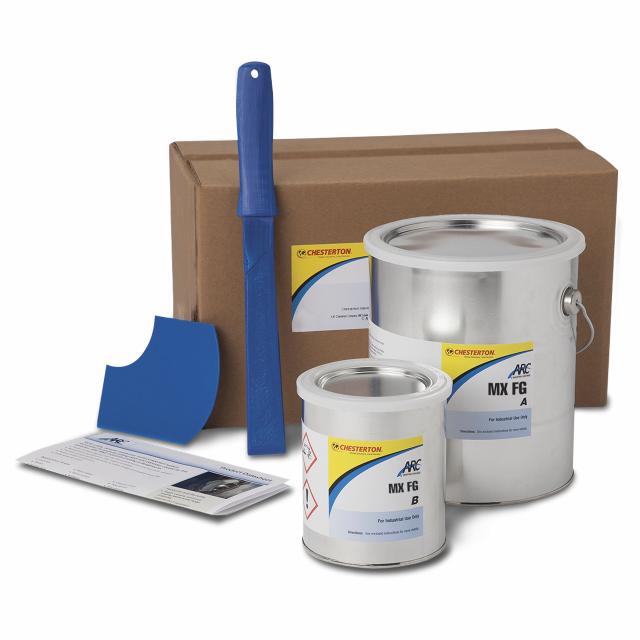

​Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions plus tools.
