ARC MX1

Trowel-Grade Coating for Coarse Particle Extreme Sliding Wear and Impact
100% solids, ceramic-reinforced, multi-component system, formulated for extreme impact, sliding-wear abrasion, and impact caused by medium-to-coarse  particle flow.



Product Features

  • Replaces hard alloy blends as wear-resistant material
  • Easily apply by trowel
  • Restores worn equipment to near original condition
  • Protects surfaces against dry coarse particle erosion, wet slurry abrasion, and impact
  • Provides a longer lasting alternative to rubber linings and ceramic wear tiles
  • >90% by weight ceramic reinforcement
  • 100% solids; no VOCs; no free isocyanates
  • Novel toughened polymer matrix for improved impact resistance

Technical Data

Applications
  • Pulverizers
  • Dredge pumps
  • Hoppers and silos
  • Conveyor screws
  • Pumps and pipe elbows
  • Fans/blowers/cyclones
  • Slurry pipelines and pumps
  • Ceramic tile deflector hoods
  • Fan housings
  • Ceramic tile-lined chutes
  • Rubber-lined deflector hoods

Dry Temperature Max 400 °F ( 205 °C )
Wet Temperature Max 205 °F ( 95 °C )
Tensile Adhesion 22.1 Mpa ( )
Color Blue
Available Container Sizes

Nominal, based on a 6 mm (240 mil) thickness
6 kg kit covers 0.37 m2 (3.97 ft2)

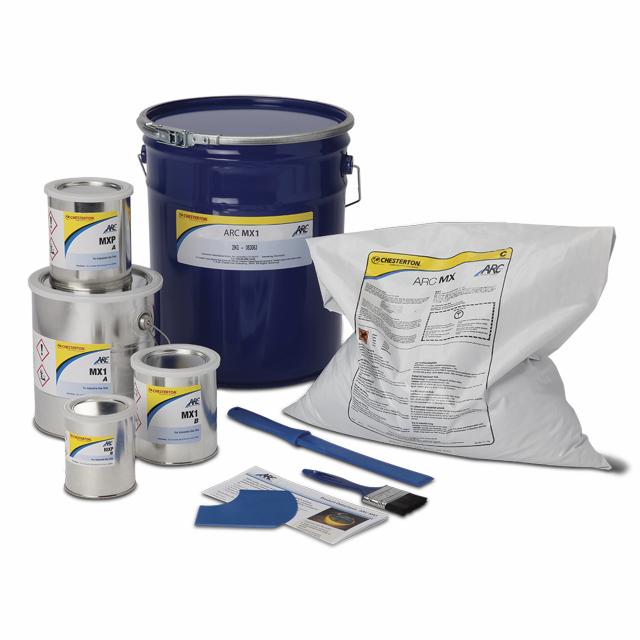

Contains:

  • 1 x MXP (primer) part A and B
  • 1 x MX1 (top coat) part A and B
  •  1 x MX (ceramic reinforcement) part C

20 kg kit covers 1.23 m2 (13.23 ft2)Contains:

  • 1 x MXP (primer) part A and B
  • 1 x MX1 (top coat) part A and B
  • 1 x MX (ceramic reinforcement) part C

Note: Components are pre-me​asured and pre-weighed. Each kit includes mixing and application instructions plus tools.
