ARC MX2

Trowel-Grade Coating for Fine Particle Severe Sliding Wear
100% solids, ceramic-reinforced, multi-component system, formulated for extreme sliding wear and abrasion caused by fine particles.



Product Features

  • 92% pure alumina ceramic reinforcement yields maximum hardness and abrasion resistance
  • Preferred for slurries or particle flow with particulates less than 3 mm (1/8"") in size
  • Easily apply by trowel
  • Applied up to 6 mm (1/4") without sag
  • Bright white
  • No primer required

Technical Data

Applications
  • Cyclones
  • Valves
  • Hopper bins
  • Pulp dewatering screws
  • Wear plates
  • Slurry pumps
  • Agitators
  • Mixers
  • Cleaner cones
  • Pipe spools
  • Pulverizers
Dry Temperature Max 400 °F ( 205 °C )
Wet Temperature Max 203 °F ( 95 °C )
Tensile Adhesion 23.5 Mpa ( )
Color White
Available Container Sizes

Nominal, based on a 3 mm (120 mil) thickness

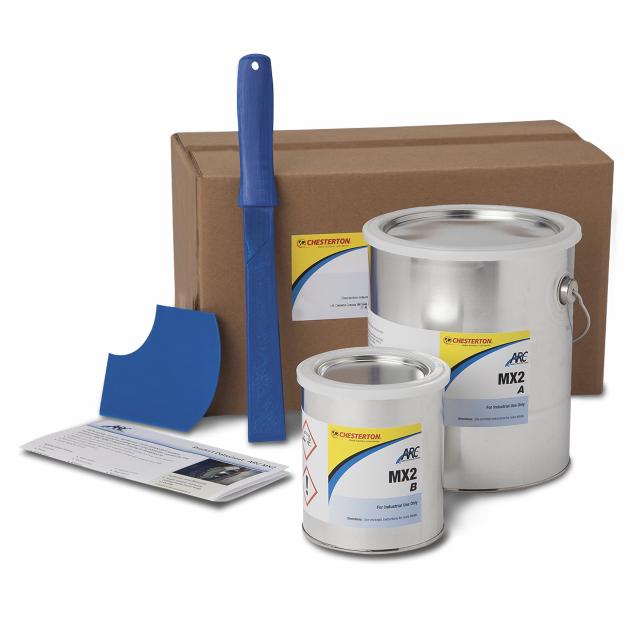

  • 2.5 liter kit covers 0.83 m2 (8.9 ft2)​
  • 16 liter kit covers 5.28 m2 (56.8 ft&lt2)

Note: All components are pre-measured and pre-weighed. Also included in every kit are mixing and application instructions. 2.5 liter kit includes tools.
