ARC S1HB

High Build, Single Coat, Edge-Retentive Barrier Coating
ARC S1HB is a mineral reinforced, amidoamine cured modified epoxy lining for the protection of metallic and cementitious surfaces from corrosive exposures. Its high build, edge-retentive nature provides maximum coverage over hard 90° edges and corners with minimal thinning at the sharp edge.



Product Features

  • Low VOCs
  • 100% solids
  • Greater than 70% edge retention
  • Provides excellent barrier protection against corrosion and chemical attack
  • Provides resistance to erosive flow
  • High build (1 – 2  mm/ 40 – 80 mils) coating designed for rough surfaces
  • Easily applied by heated plural component spray with brush application for touch-up
  • UV sensitive pigment for QC inspection

Technical Data

Applications
  • Crude oil storage tanks
  • Chemical storage tanks
  • Thickener tanks
  • Pipelines/penstocks
  • Wastewater clarifiers
  • Grit chambers
  • Wet wells/junction boxes
  • Manholes
  • Acceptable for use with cathodic protection systems
Dry Temperature Max 175 °F ( 80 °C )
Wet Temperature Max 125 °F ( 52 °C )
Tensile Adhesion 2.7 Mpa ( )
Salt fog 10000 minutes
Color Light Gray
Available Container Sizes

ARC S1HB: Nominal, based on a 750 µm (30 mil) DFT

  • 1125 ml cartridge covers 1.5m2(16.1 ft2)
  • 60 liter kit covers 80 m2(850 ft2)
  • 600 liter kit covers 800 m2 (8500 ft2)

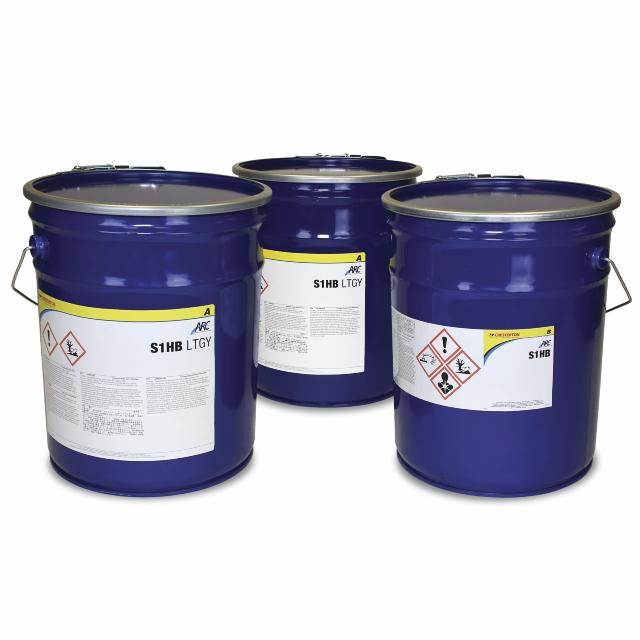

Note: Each kit is comprised of two equal size units of Part A and one equal size unit of Part B
