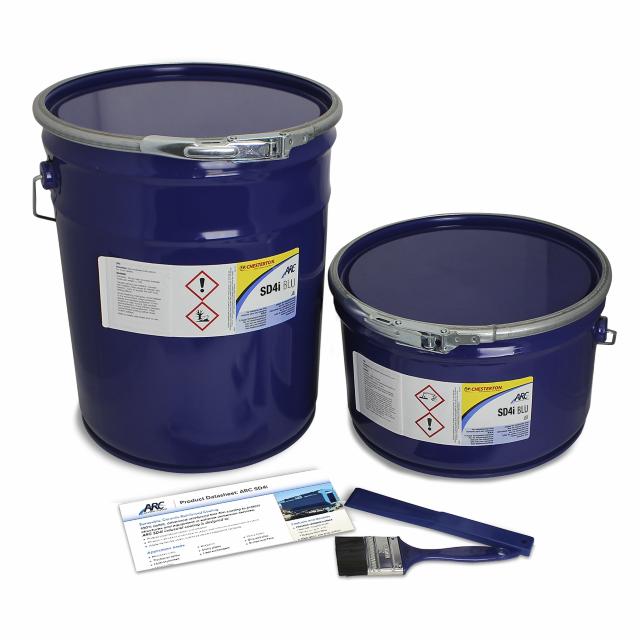

ARC SD4i

Sprayable, Ceramic-Reinforced Coating
100% solids, advanced reinforced thin film coating to protect structures and equipment in extreme immersion services.



Product Features

  • Protect against corrosion and erosion
  • Provide extended protection in aggressive chemical immersion services
  • Apply by brush, roller, airless, or plural component spraying
  • Erosion-resistant surface
  • 100% solids, no VOCs
  • Low viscosity, thin film
  • Brush, roller and spray applied

Technical Data

Applications
  • Flotation cells
  • Heat exchangers
  • Hoppers
  • Hydrocyclones
  • Bins and silos
  • Deaerators
  • Thickener  tanks
  • Slurry tanks
  • Slurry pipes

Dry Temperature Max 248 °F ( 120 °C )
Wet Temperature Max 149 °F ( 65 °C )
Taber Abrasion (ASTM D4060) H-18/1000 cycles/1 kg load 26 Mg loss
Tensile Adhesion 23.7 Mpa ( )
Color Gray, Blue
Available Container Sizes

Nominal, based on 1 coat; total DFT 375 μm (15 mil)

  • 1125 ml cartridge covers 2.95 m2 (31.8 ft2)
  • ​5 liter kit covers 13.3 m2 (143.1 ft2)
  • 16 liter kit cover​s 42.7 m2 (460 ft2)​

Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions. 5 liter kit includes tools.
