ARC 10

Machinable Polymer Alloy Coating

A machinable polymer alloy blend used to resurface scored and pitted regions that may be machined at a later stage to tight tolerances.

Broad chemical resistance to acids, alkalis, and solvents
100% solids, VOC‑free, and isocyanate‑free for safer use
High‑build material restores pitted and scored surfaces in one coat (>6 mm / 0.236”)
Polymer‑alloy‑reinforced for strength and easy machining
Easily apply by trowel

Applications	Flange faces Scored hydraulic rams Worn keyways Worn valve bodies Bearing housings Corroded stuffing boxes Shafts Pitted metal
Wet Temperature (Max)	66°C (150°F)
Dry Temperature (Max)	93°C (200°F)
Tensile Adhesion (ASTM D4541) - kg/cm2 - MPa (psi)	> 256 - > 25.2 (>3650)
Color	Gray

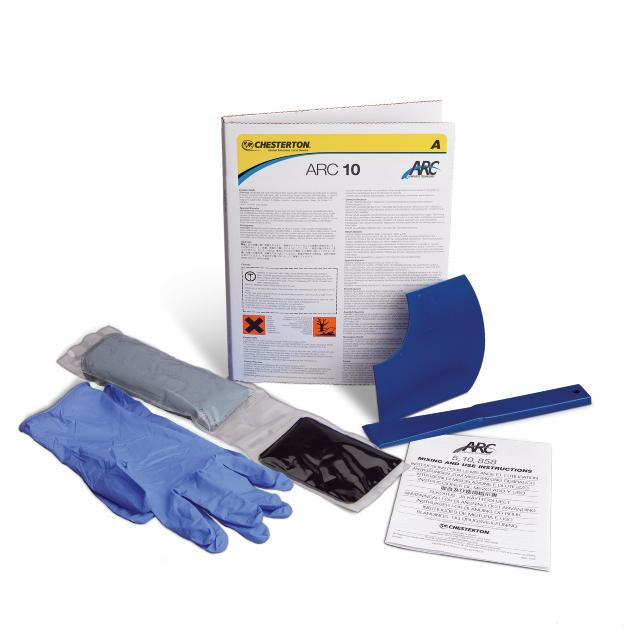

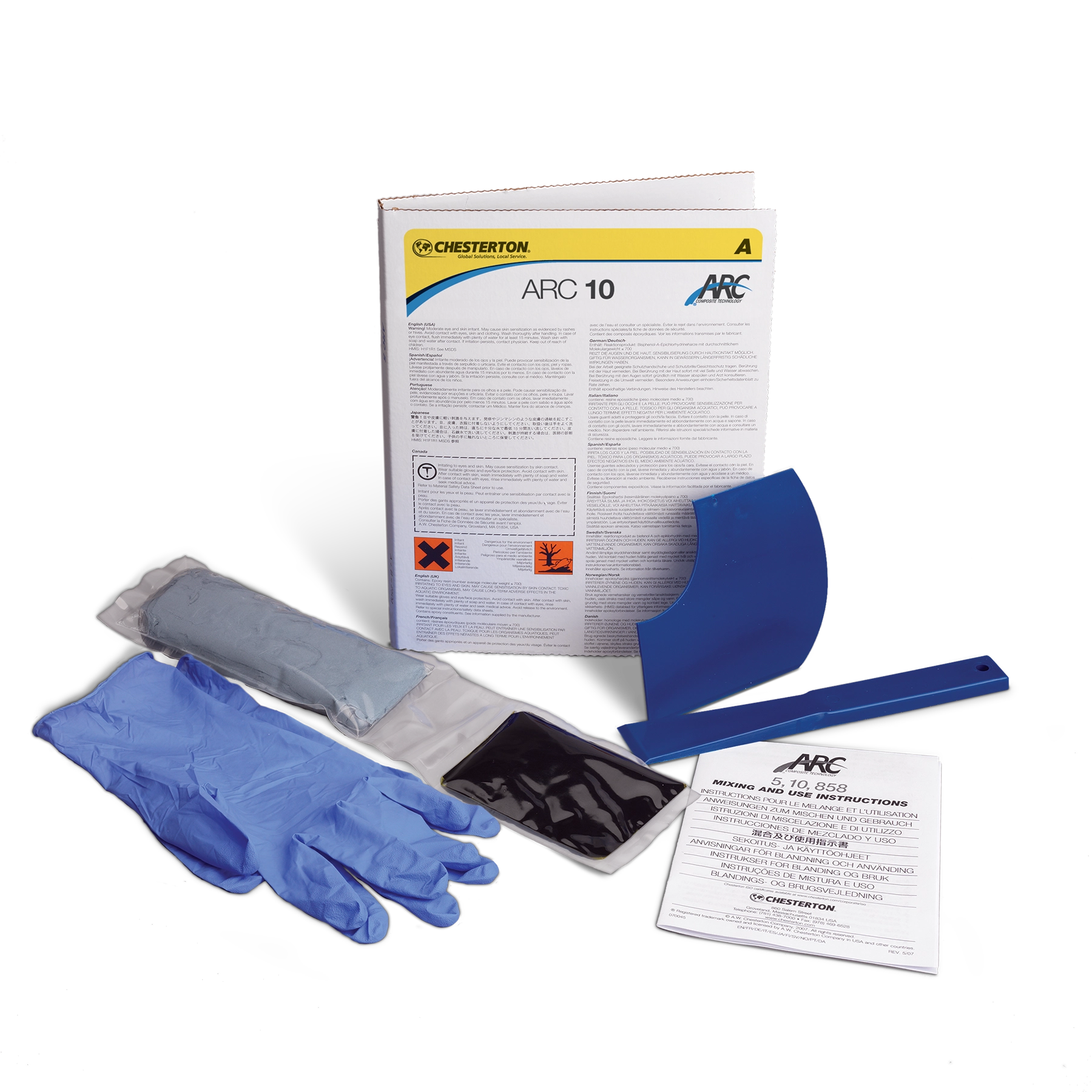

Available Container Sizes	Nominal, based on a 3 mm (120 mil) thickness 250 g kit covers 0.04 m² (0.45 ft²) 1.5 liter kit covers 0.50 m² (5.38 ft²) Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions plus tools.
