    ARC CFW-CR

    Carbon fiber reinforced novolac epoxy laminate repairs for corrosive conditions up to 93C (200F)

    ARC CFW-CR is a fiber reinforced epoxy composite repair system which is compliant with ASME PCC2 Article 401 for low-risk applications. It incorporates a 100% solids, load transfer putty for faring smooth rough irregular surface, and highly chemically resistant, low viscosity saturating epoxy resin blend which is used to wet out and impregnate a carbon or glass fiber matt which is then applied to a damaged or weakened surface to improve structural integrity.


    Not available in EMEA.



    Product Features

    • Seals leaks
    • Structurally reinforces weakened systems avoiding costly replacement
    • Easily applied to pipe, tanks, equipment
    • Rated for agressive chemical exposures

    Product Literature

    Technical Data

    Applications
    • Tanks (steel or fiberglass)
    • Pressure vessels
    • Pipes
    • Elbows, flanges, and fittings
    • Equipment casings
    • Heat exchanger shells
    • Ducting
    • Structural beams
    Tensile Adhesion 20.7 MPa ( 3000 psi )
    Available Container Sizes

    CFW-CR comes in a package able to repair pipes up to 24” in diameter. Contact your ARC salesperson for larger packaging options available.

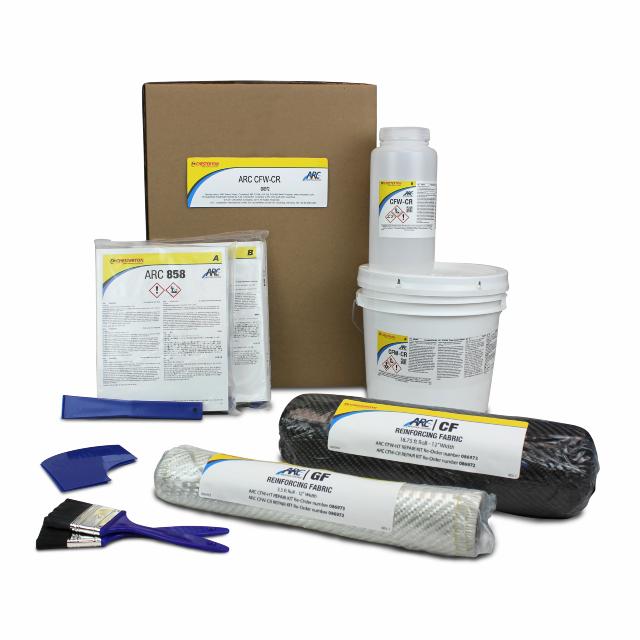

    Each kit contains the following:

    • 2 x 250 packs of ARC 858 (faring compound)
    • 1.2 gallons of ARC CFW-CR saturating resin blend
    • 12" x 3.5' Bidirectional glass fiber mat
    • 12" x 19.5' Bidirectional carbon fiber
    • Mixing and application tools
    • Nitrile gloves
