    ARC NVE Veil Coat Kit

    High-Temperature and Chemical Resistant, Epoxy Novolac Vinyl Ester Coating
    2-Layer system, high performance modified novolac vinyl ester coating for concrete where extreme chemical resistance is required.




    Product Features

    • Serve as a stand-alone, thin film coating
    • Protect against a wide range of concentrated acids, organic solvents, and alkalis
    • Engineered with a specialized blend of reinforcements to deliver long-term resistance to permeation
    • Versatile coating suitable for multiple applications, applied as a thin-film system or as a seal coat for ARC NVE TC
    • Easily apply by brush, roller, squeegee or airless spray

    Product Literature

    Technical Data

    Applications
    • Battery rooms
    • Pickling/Plating lines
    • Bleaching areas
    • Sumps, trenches and pits
    • Chemical containments
    • Pump equipment
    • Pickling rooms
    • Loading stations
    • Equipment rooms
    Notes

    Colors: Red or Gray*

    *Gray available from our EME Manufacturing Facility only
    Wet Temperature (Max) 130˚C (266˚F)
    Dry Temperature (Max) 200˚C (392˚F)
    Tensile Adhesion (ASTM D4541) - kg/cm2 - MPa (psi) >38 - 3.8 (551)
    Available Container Sizes

    Nominal System Kit coverage: 9.60 m² (103.30 ft²) at 500 μm (20 mil) thickness

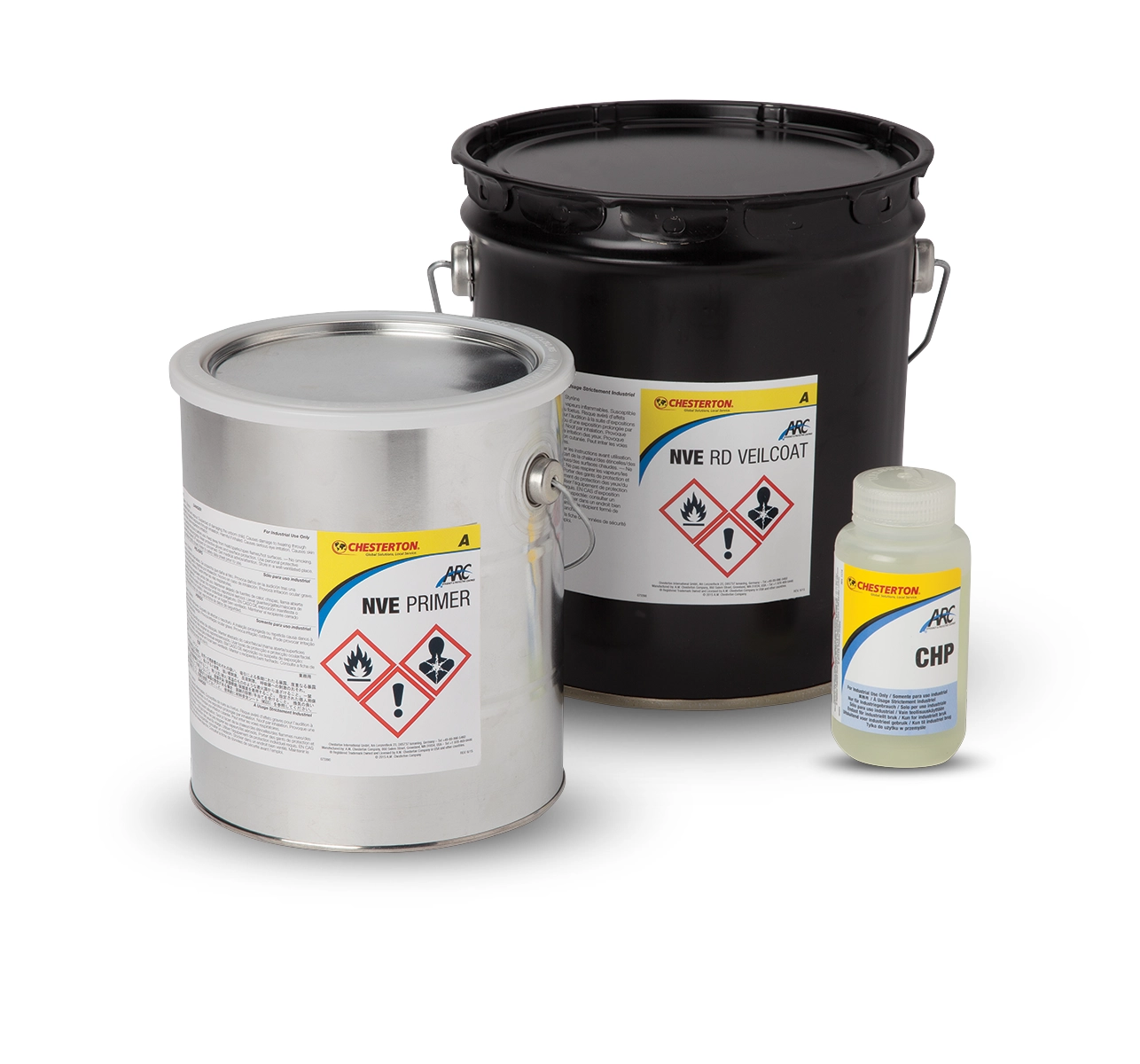

    NVE VC 2-Layer System has 3 components:

    1. NVE Primer Coat (PC)
      - 1 x 2.1 liter (0.55 gal) container
      - Nominal DFT of 125–180 µm (5–7 mils)

    2. NVE Veil Coat (VC)
      - 1 x 4.8 liter (1.27 gal) container
      - Nominal WFT* of 250–375 µm (10–15 mils)

    3. ARC CHP Catalyst
      - 1 x 250 ml containers

    Note: Components are pre-measured and pre-weighed. Each kit includes mixing and application instructions.
