16K/17K Bearing Bands
- Bearing Band Strips for Hydraulic and Pneumatic Applications

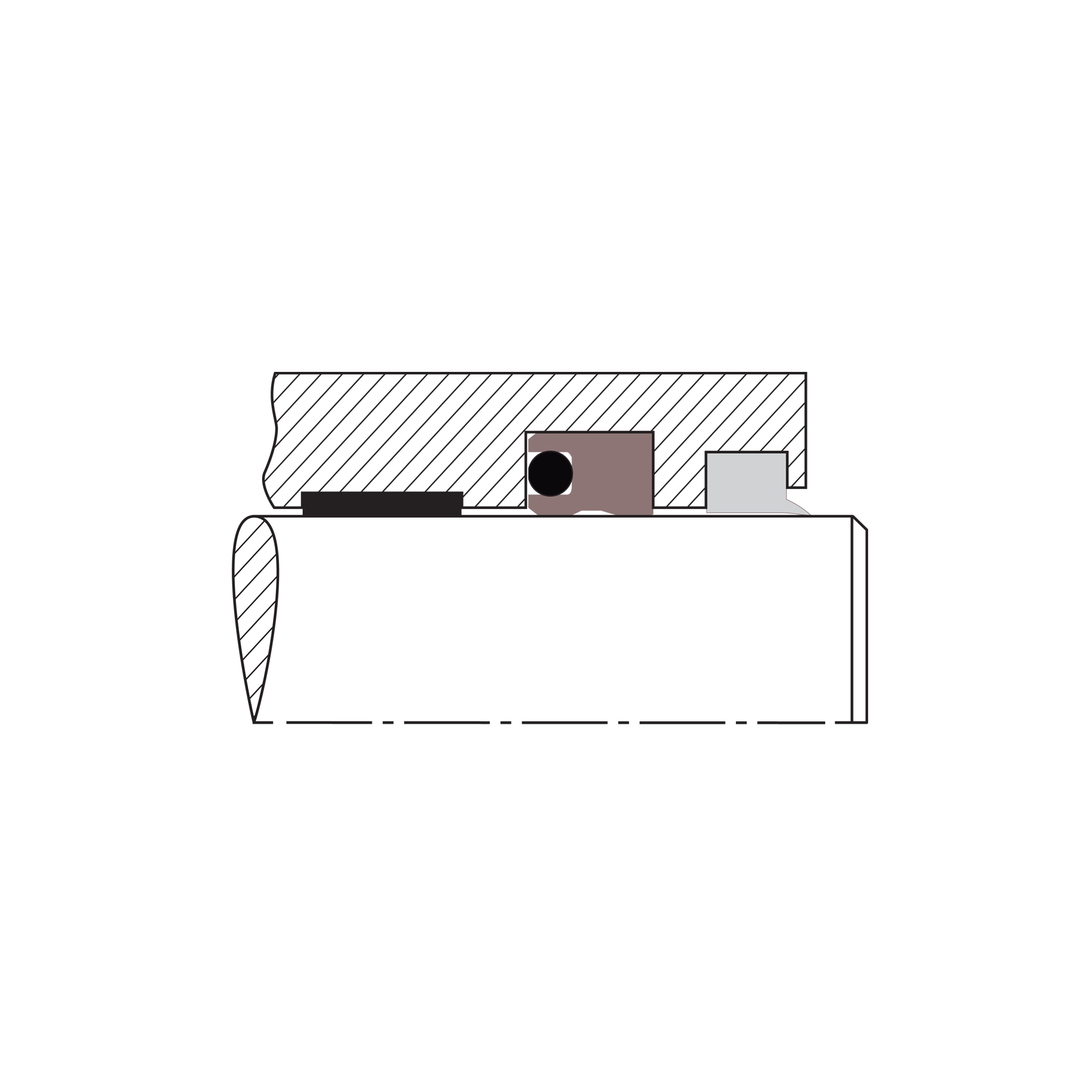

Chesterton 16K (metric) and 17K (inch) replaceable Bearing Band Strips are the solution to costly cylinder re-machining and repairs for large diameter hydraulic or pneumatic equipment. These split, replaceable bearings minimize metal-to-metal scoring and reduce radial movement, extending seal and equipment life.
The split, continuous coil designs are made from a combination of composite polyester resin reinforced with synthetic fibers specifically designed to support heavy loads. These designs are suitable for use on rams and pistons in reciprocating applications due to their exceptional physical properties and built-in lubricants.
Product Features
-
- Minimizes metal-to-metal scoring, helps prolong equipment life
- Reduces radial movement, extends seal life
- Built-in lubricant for lower coefficient of friction between mating surfaces
- Split continuous coil accommodates large diameter equipment
Technical Data
| Compressive Strength | 50000 psi ( 345 MPa ) | |
|---|---|---|
| Temperature Min | -40 °F ( -40 °C ) | |
| Temperature Max | 250 °F ( 121 °C ) | |
| Permissible Compressive Load | 100 MPa ( 14500 PSI ) | |
| Speed Max | 1 m/s ( 200 fpm ) | |
| Cross Section / Height / Diameter (Inch) |
|
|
| Notes |
Temperature and pressure for AWC640 material
|
