16K Wear Ring Strips (Metric Sizes)
- Replaceable Split-Bearing Guides for Presses

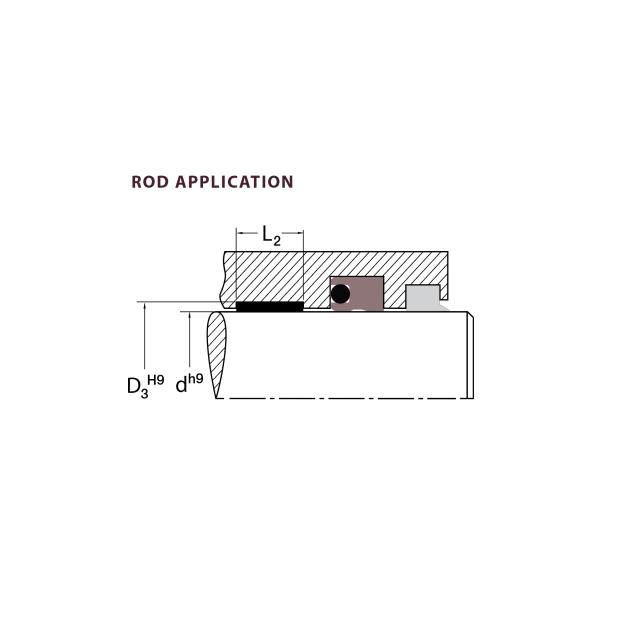

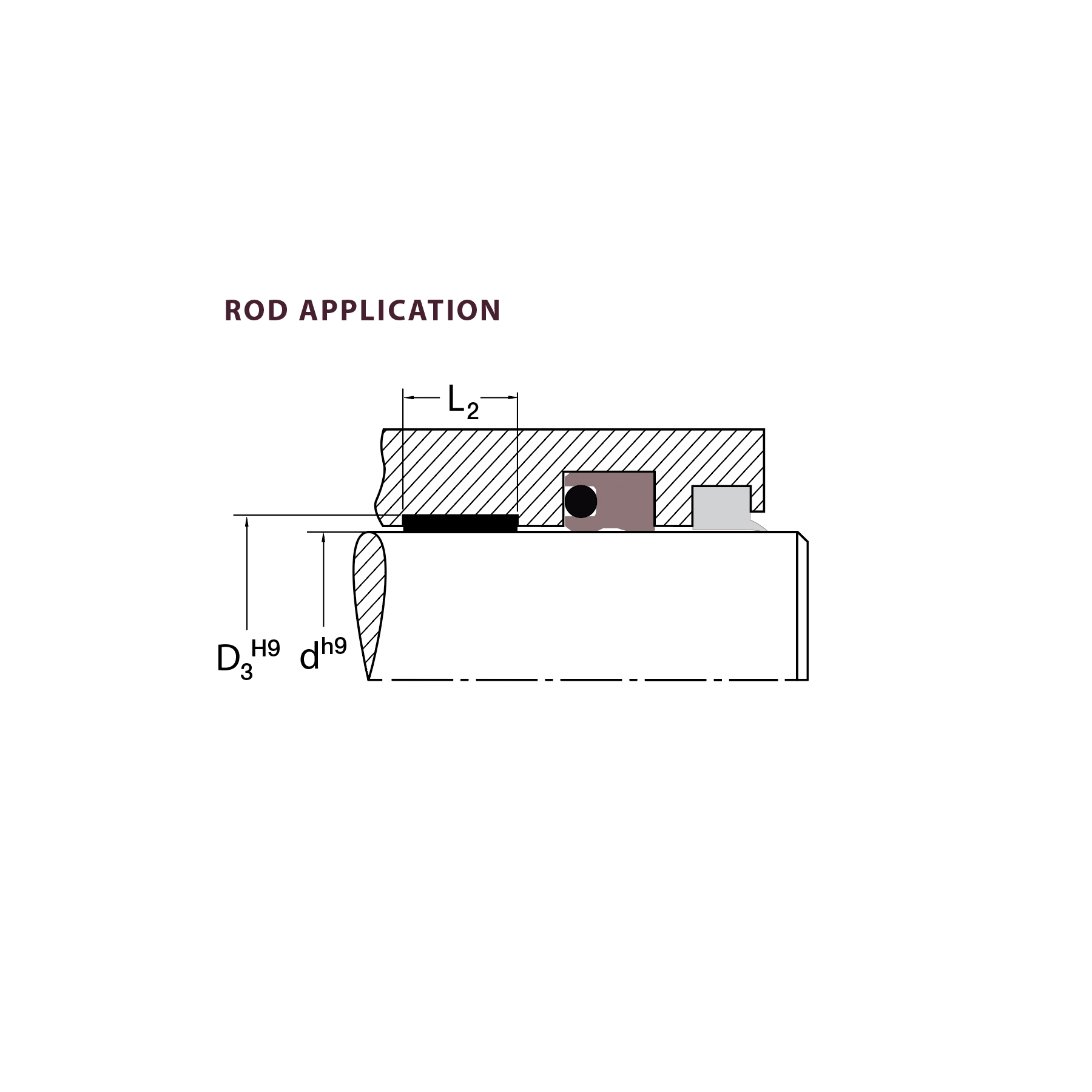

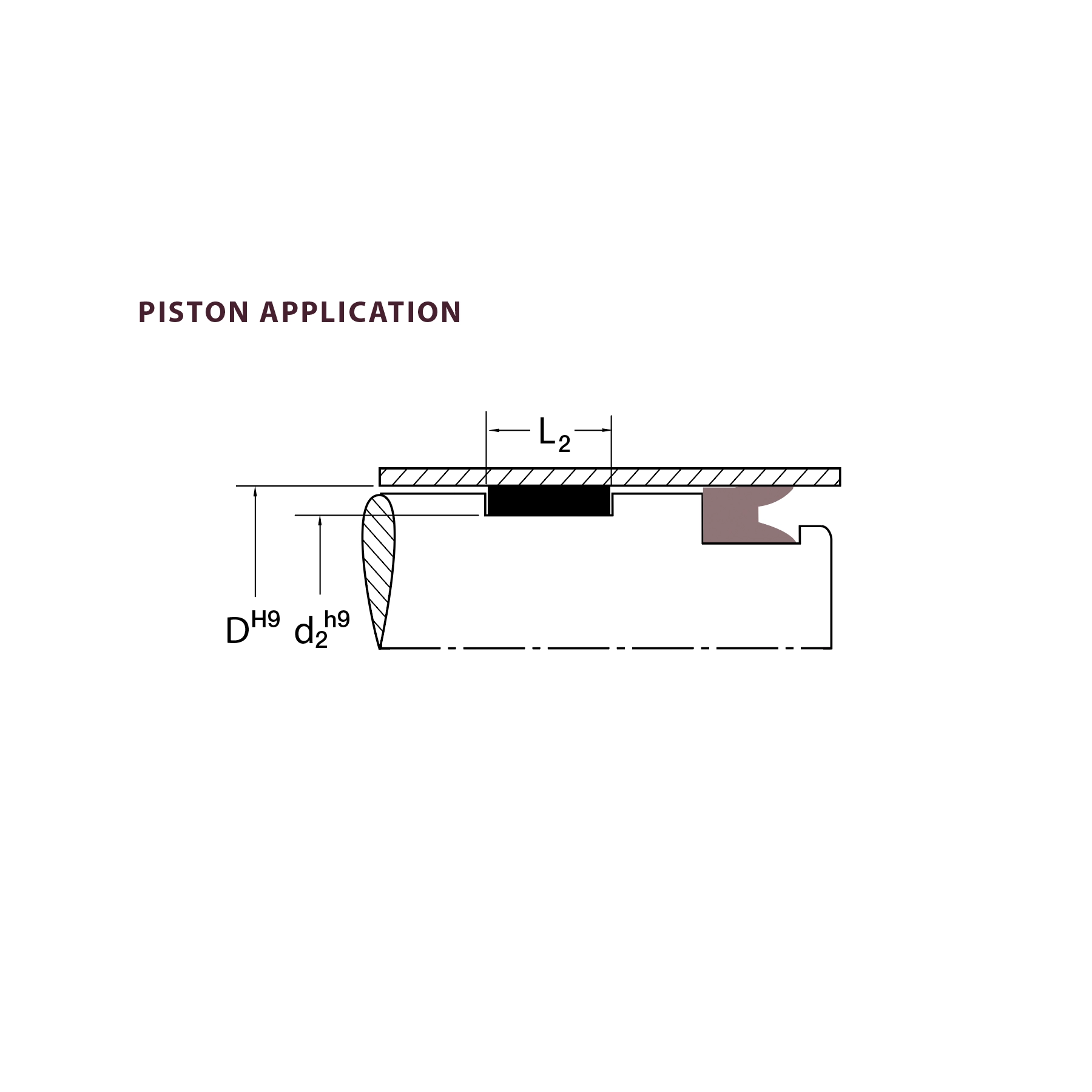

High performance, replaceable bearing strips for heavy-duty hydraulic cylinders and forming machines. The exceptional physical properties and built-in lubricants make is suitable for use on rams or pistons on most of reciprocating applications.
Product Features
-
- Prevents metal-to-metal scoring, helps prolong equipment life
- Reduces radial movement, extends seal life
- Built-in lubricant for lower coefficient of friction between mating surfaces
- Split continuous coil accommodates large diameter equipment
Technical Data
| Compressive Strength | 50000 PSI ( 345 Mpa ) |
|---|---|
| Temperature Min | -40 °F ( -40 °C ) |
| Temperature Max | 250 °F ( 121 °C ) |
| Permissible Compressive Load | 100 Mpa ( 14500 PSI ) |
| Speed Max | 1 m/s ( 200 fpm ) |

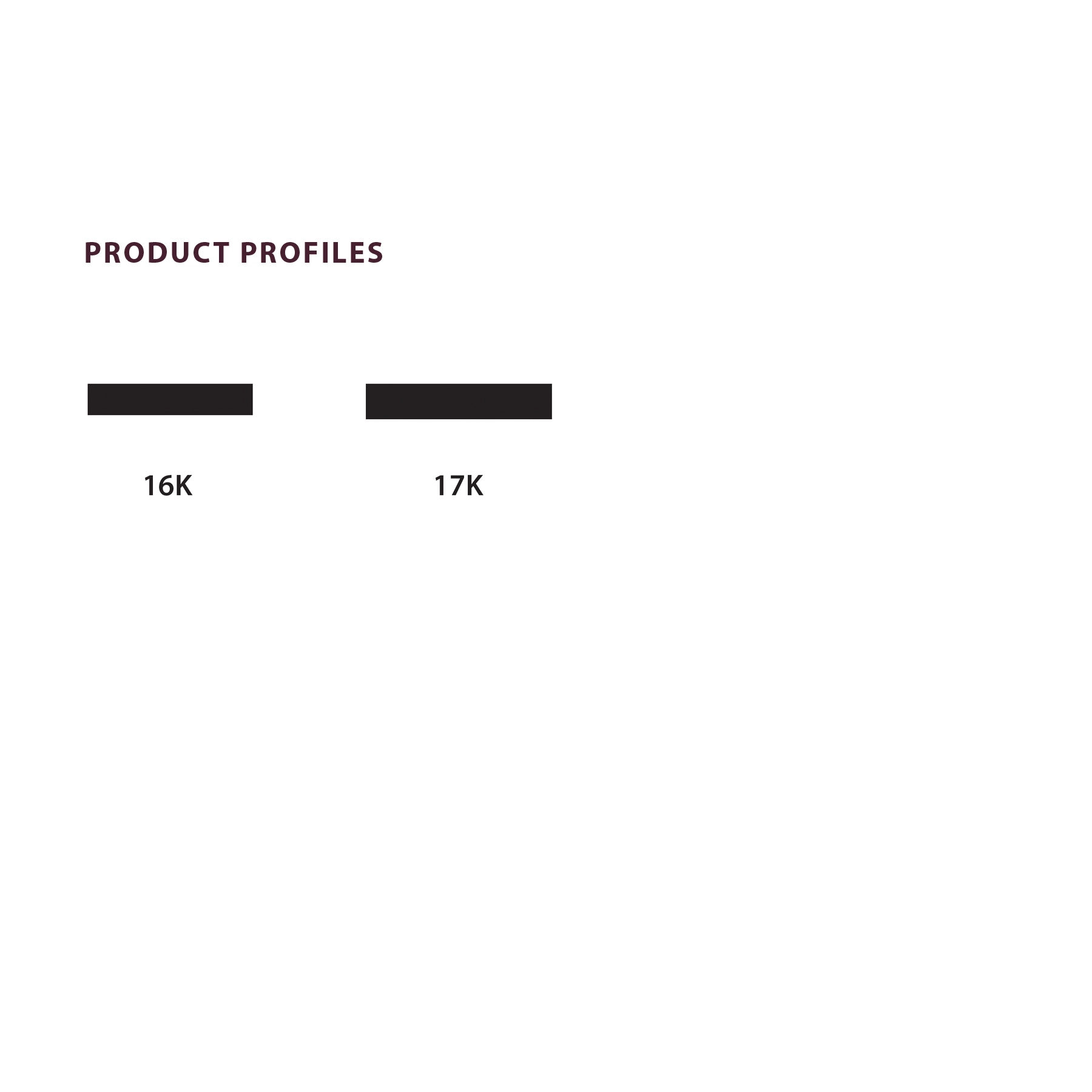

| Cross Section / Height / Diameter (mm) |
2.5 – 4.0 / 15 / 300 – 1575 2.5 – 4.0 /20 / 300 – 1575 2.5 – 4.0 / 25 / 300 – 1575 2.5 – 4.0 / 30 / 300 – 1575
|
| Notes |
Temperature and pressure for 640 material
|
