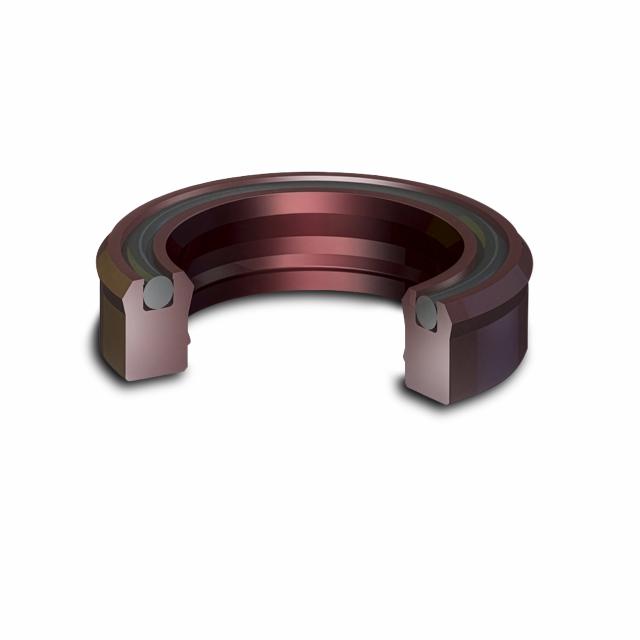

22KE Rod and Piston Seals
- Energized Dual Component for Added Stability

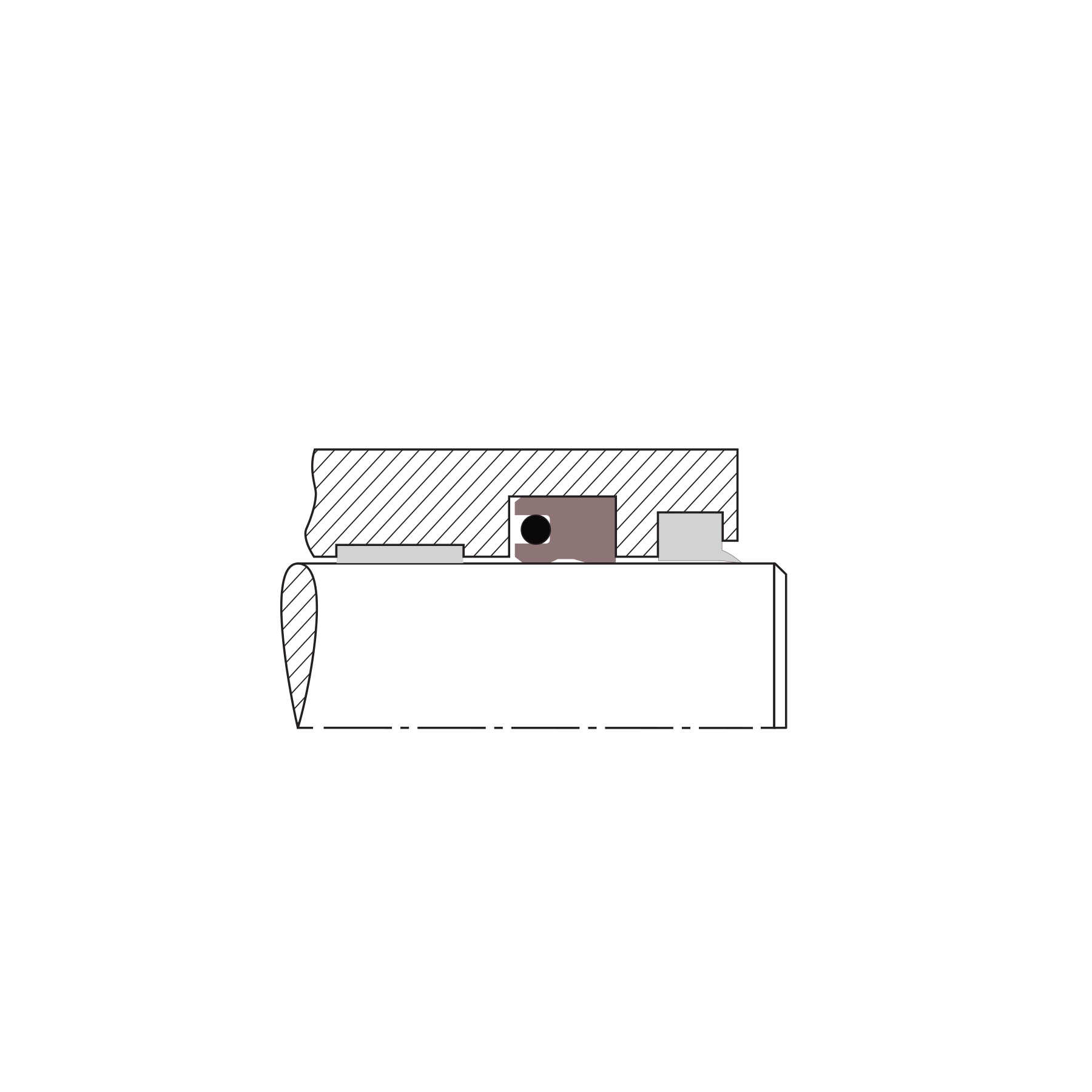

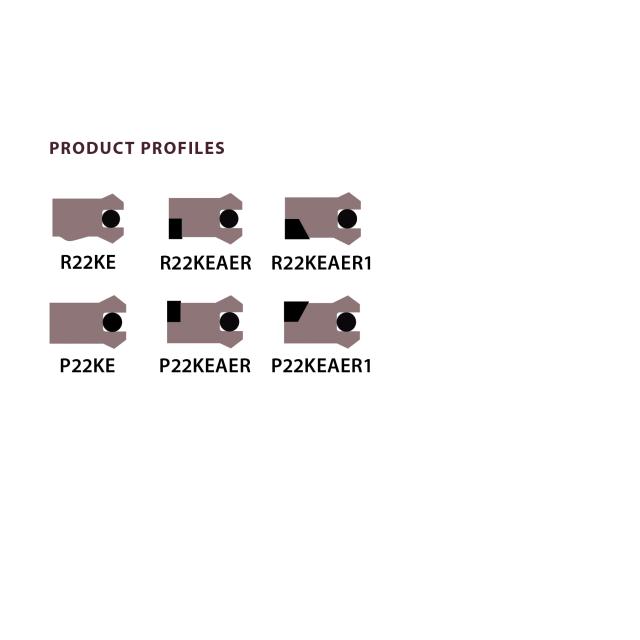

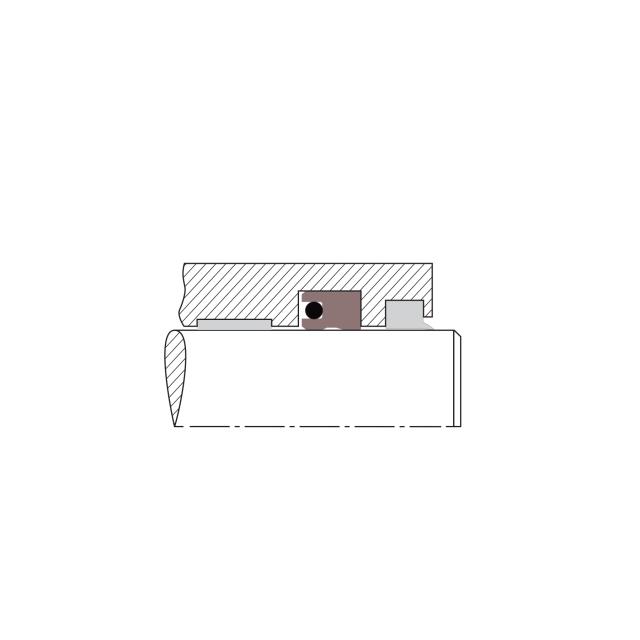

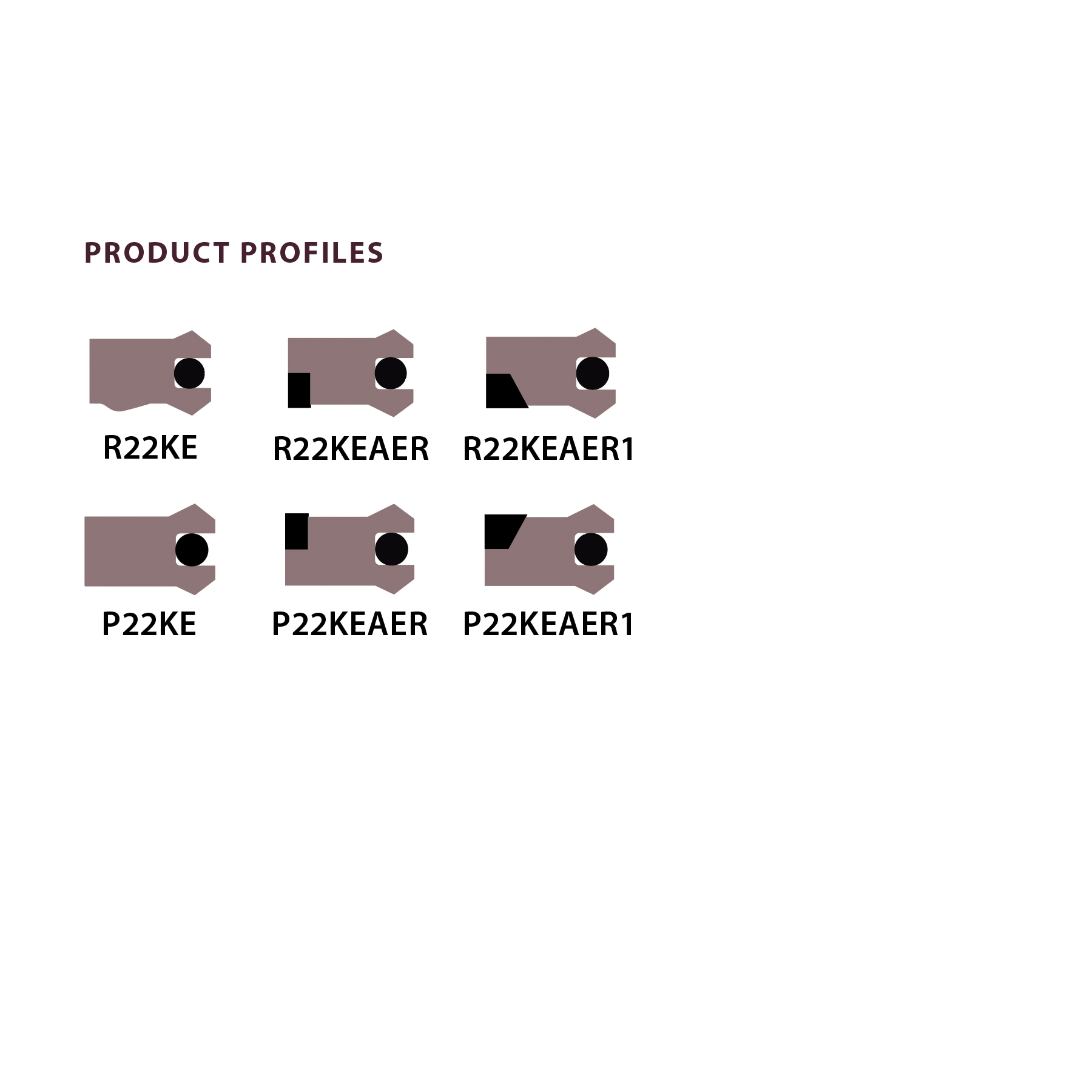

The 22KE is a single-acting, continuous U-Cup design, which incorporates the use of an O-Ring to increase pre-load capabilities. The O-Ring energizes the seal in the absence of system pressure and provides stability at higher temperatures. This seal design is offered as a rod or piston seal and provides excellent performance in hydraulic applications.
The 22KE design is manufactured using a machining process that allows the flexibility to create any size based on equipment dimensions. The special seal lip geometry provides an optimal pre-load to maximize performance, and the negative rake design eases installation.
Product Features
-
- Single-acting U-cup design, zero leakage throughout the entire operating range
- O-Ring loader energizes seal and provides stability at higher pressures
- Abrasion-resistant design, excellent performance in hydraulic applications
- Lip geometry stabilizes seal to minimize rolling and eases installation
- Machining process allows the flexibility to create any size
Technical Data
| Temperature Min | -60 °F ( -50 °C ) |
|---|---|
| Temperature Max | 185 °F ( 85 °C ) |
| Pressure | 103.5 MPa (15000 psi) |
| Speed Max | 1.00 m/s ( 200 fpm ) |
| Notes |
Data is for AWC800. Other materials available. |
