Custom Cap Seals (CCS)
- Dual Component System for Bi-Directional Sealing

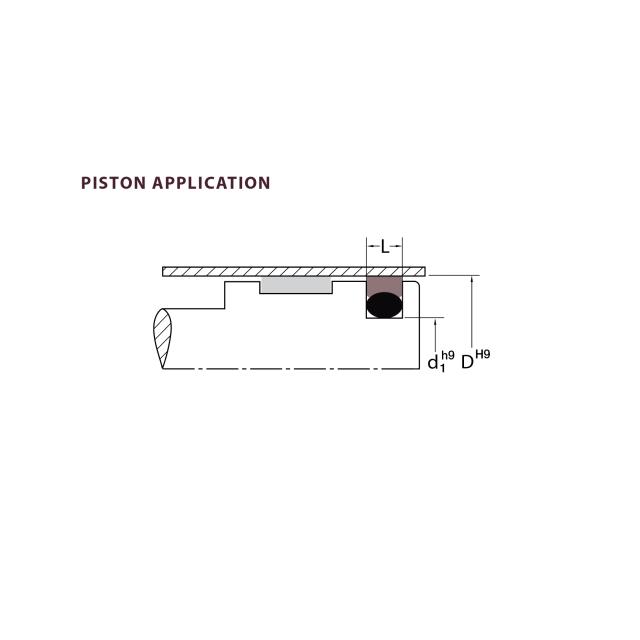

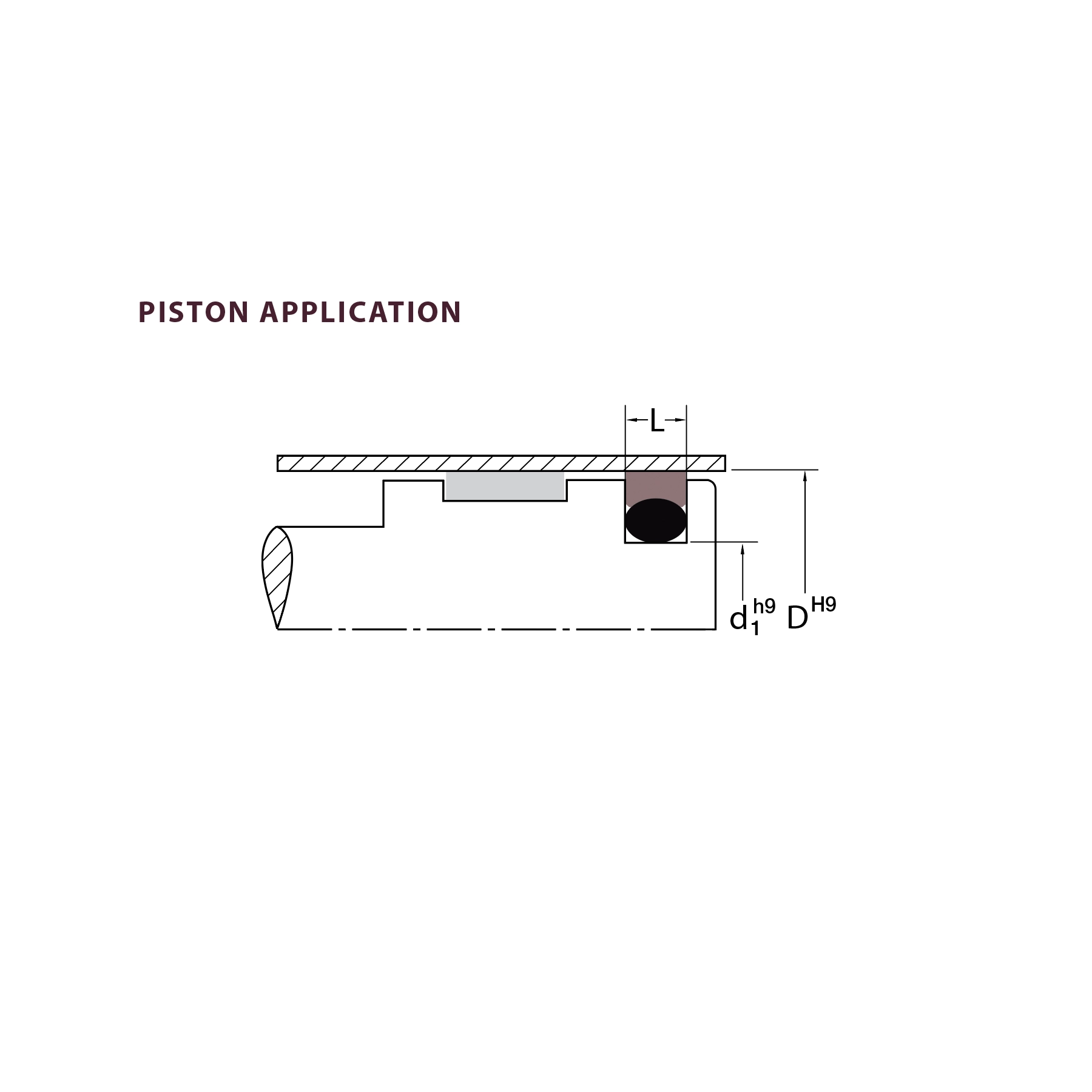

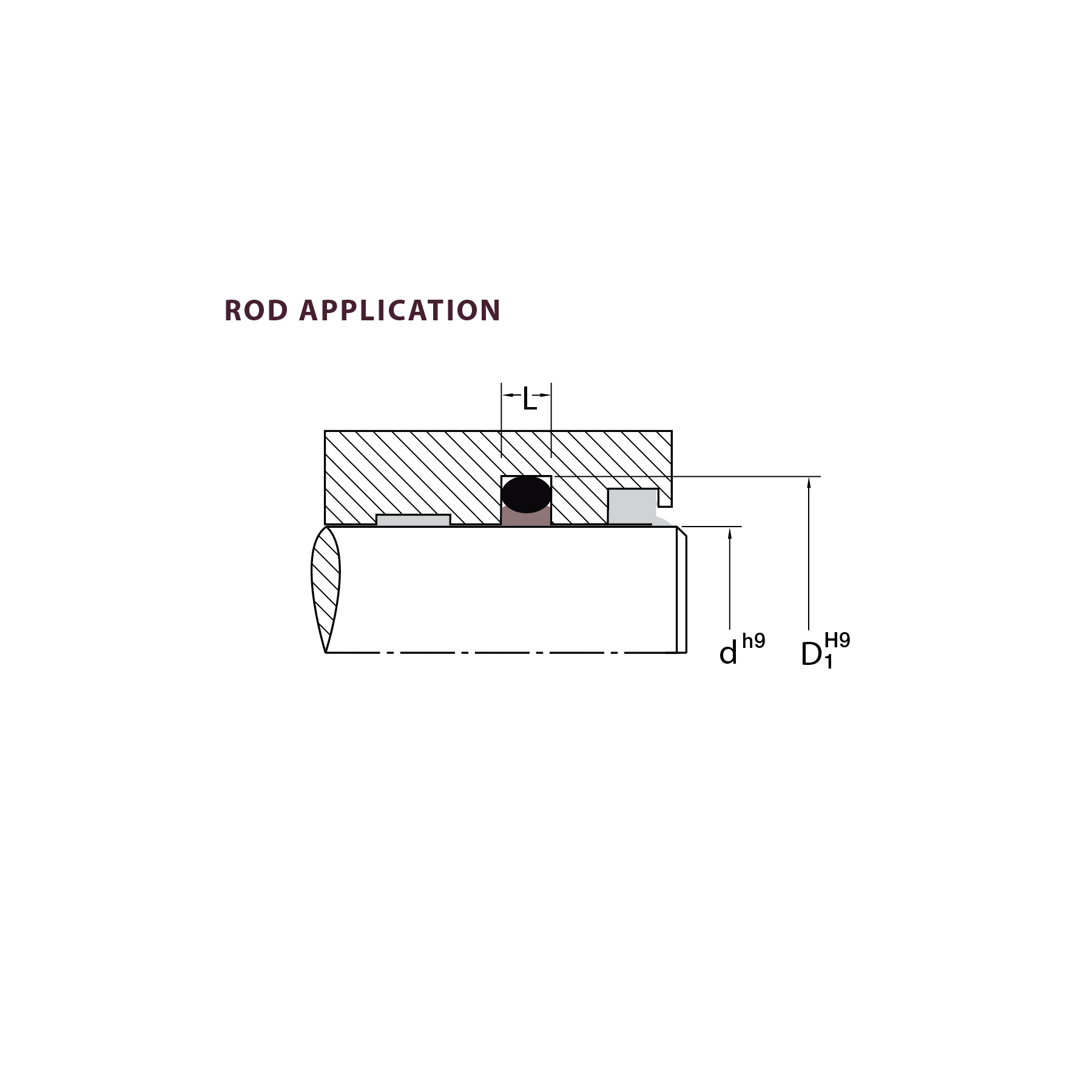

The Chesterton Custom Cap Seals (CCS) are custom manufactured, rod or piston mounted, bi-directional seals made from second generation PTFE. The second generation PTFE offers improved performance over conventional materials. Each seal is individually manufactured and provides excellent performance in single groove, double acting, hydraulic applications.

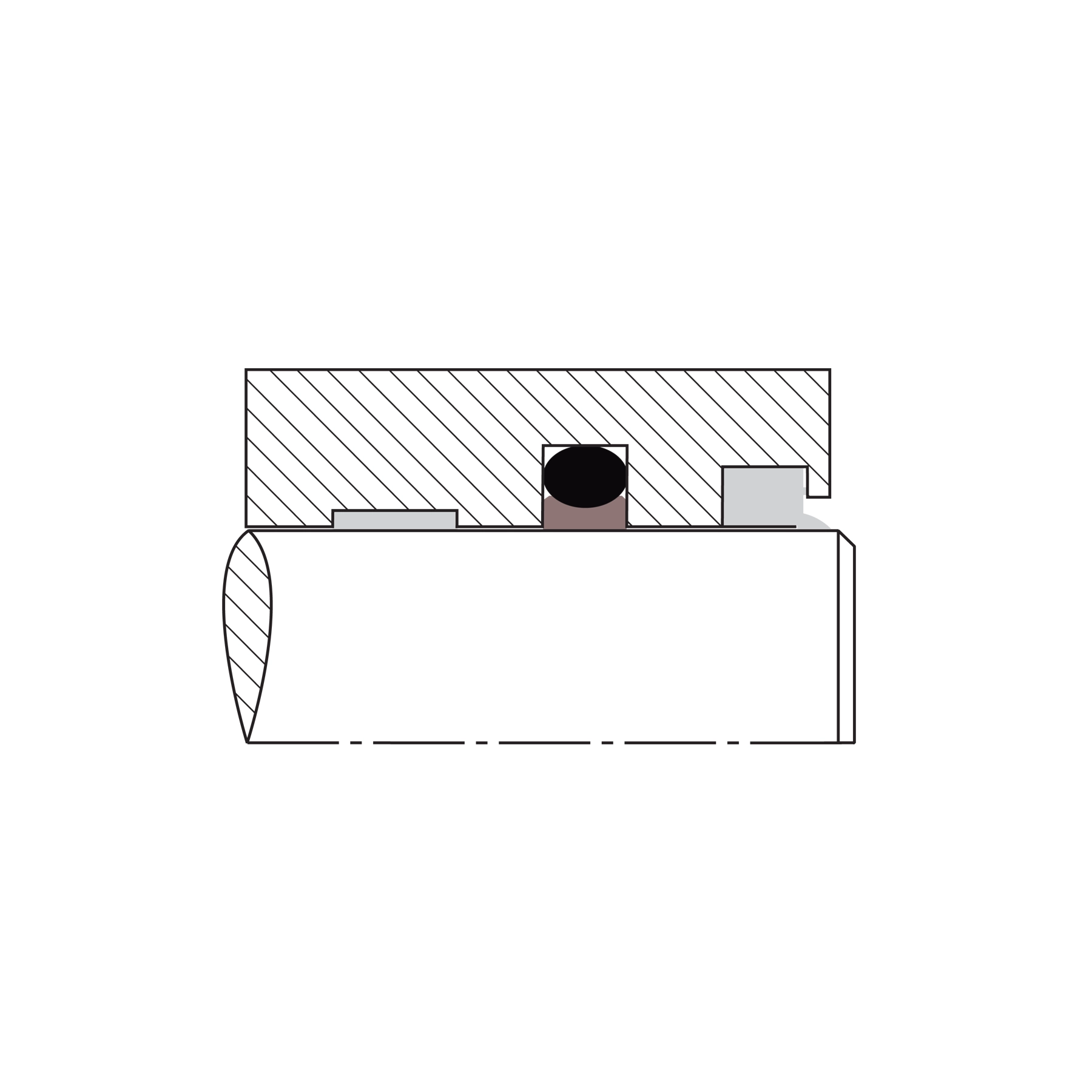

Each cap seal is made from our machining process which minimizes the need for tooling costs associated with new sizes. This cap seal design is comprised of a two-piece sealing system that uses an elastomeric cap with an O-Ring to create a very effective seal. The cap is used as the dynamic sealing element while the O-Ring energizes the cap and creates a static seal.

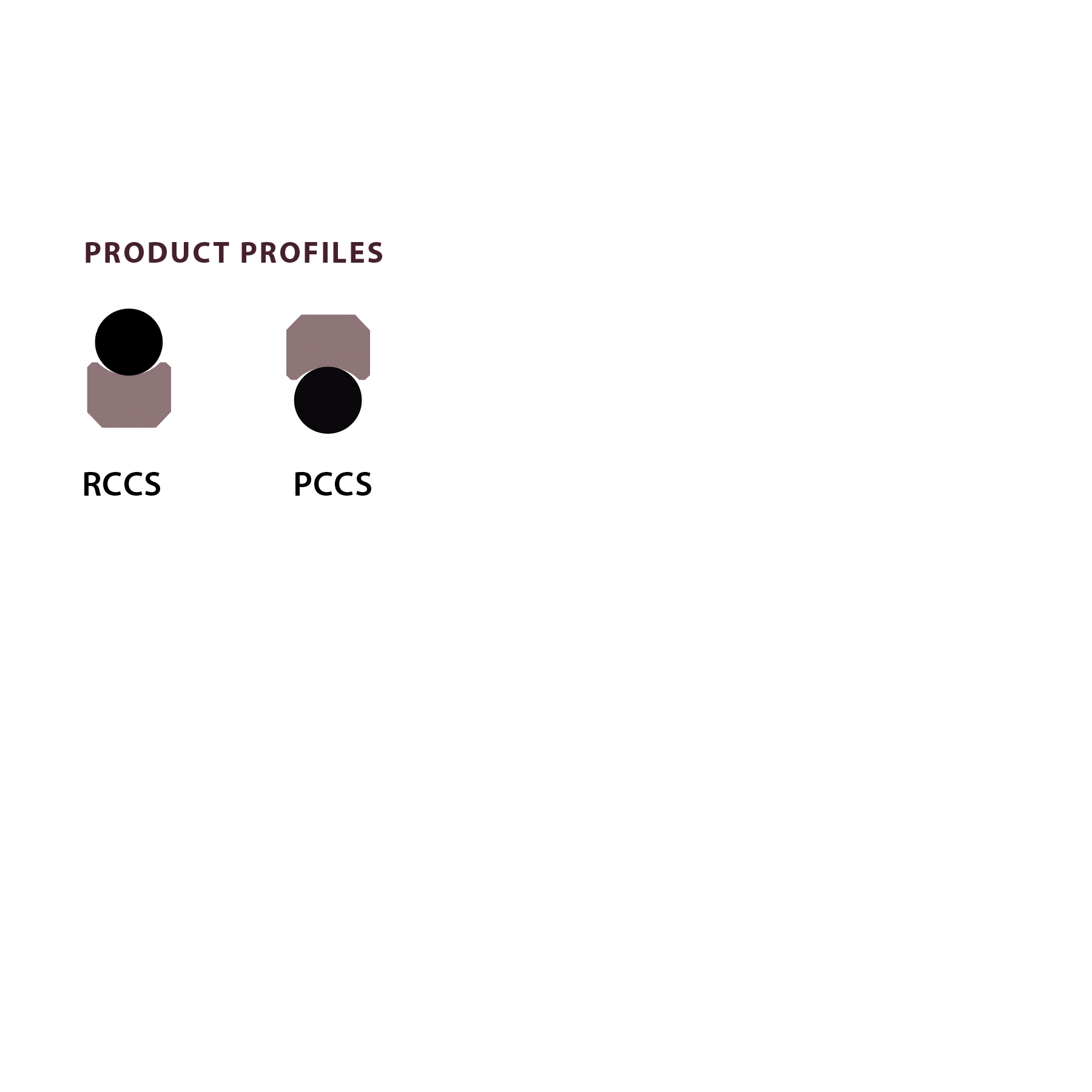

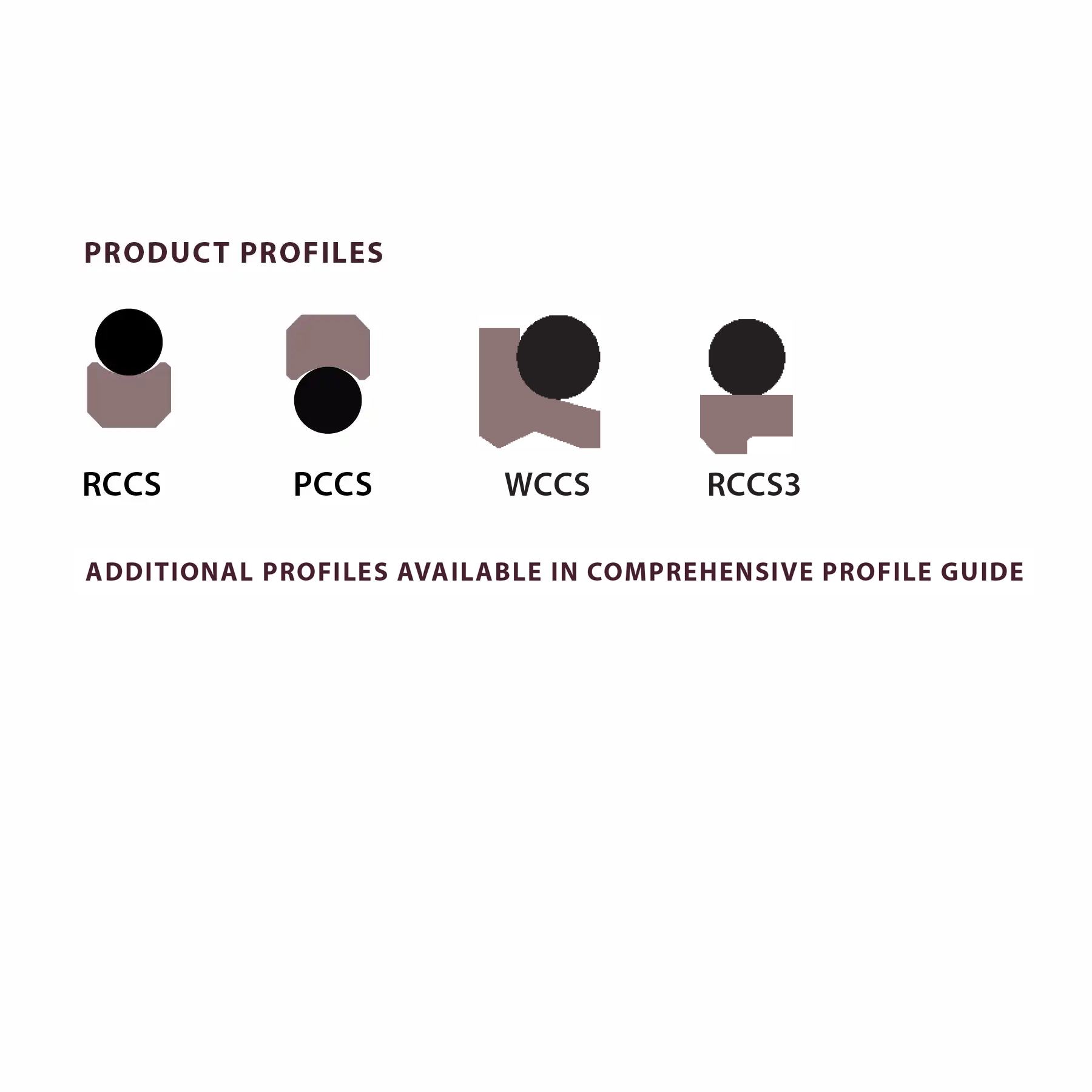

Additional designs were developed to meet specific application and equipment needs. Both components are available in a range of engineered materials to best suit the specific operating requirements.
Product Features
-
- Second generation PTFE and high performance polymers offer improved performance
- Compression seal design increases sealing force with system pressure
- Proven seal design provides predictable performance
- Sizes made to accommodate international standards including ISO and DIN
Technical Data
| Temperature Min | -30 °F ( -35 °C ) |
|---|---|
| Temperature Max | 185 °F ( 85 °C ) |
| Speed Max | 0.9 m/s ( 185 fpm ) |
| Notes |
Temperature and pressure for AWC800 material.
|
