11K Rod Seal
- Patented, Simple Dual-Component, Split Seal Assembly for Hydraulic Sealing
The Chesterton 11K Rod Seal is a single-acting, two-part unit recommended for use in hydraulic cylinders and presses. The unique, split design minimizes the need for equipment disassembly and shimming. The simplified design reduces friction and wear as observed in conventional elastomer V-ring assemblies. The net effect is an improvement in the life of the equipment.

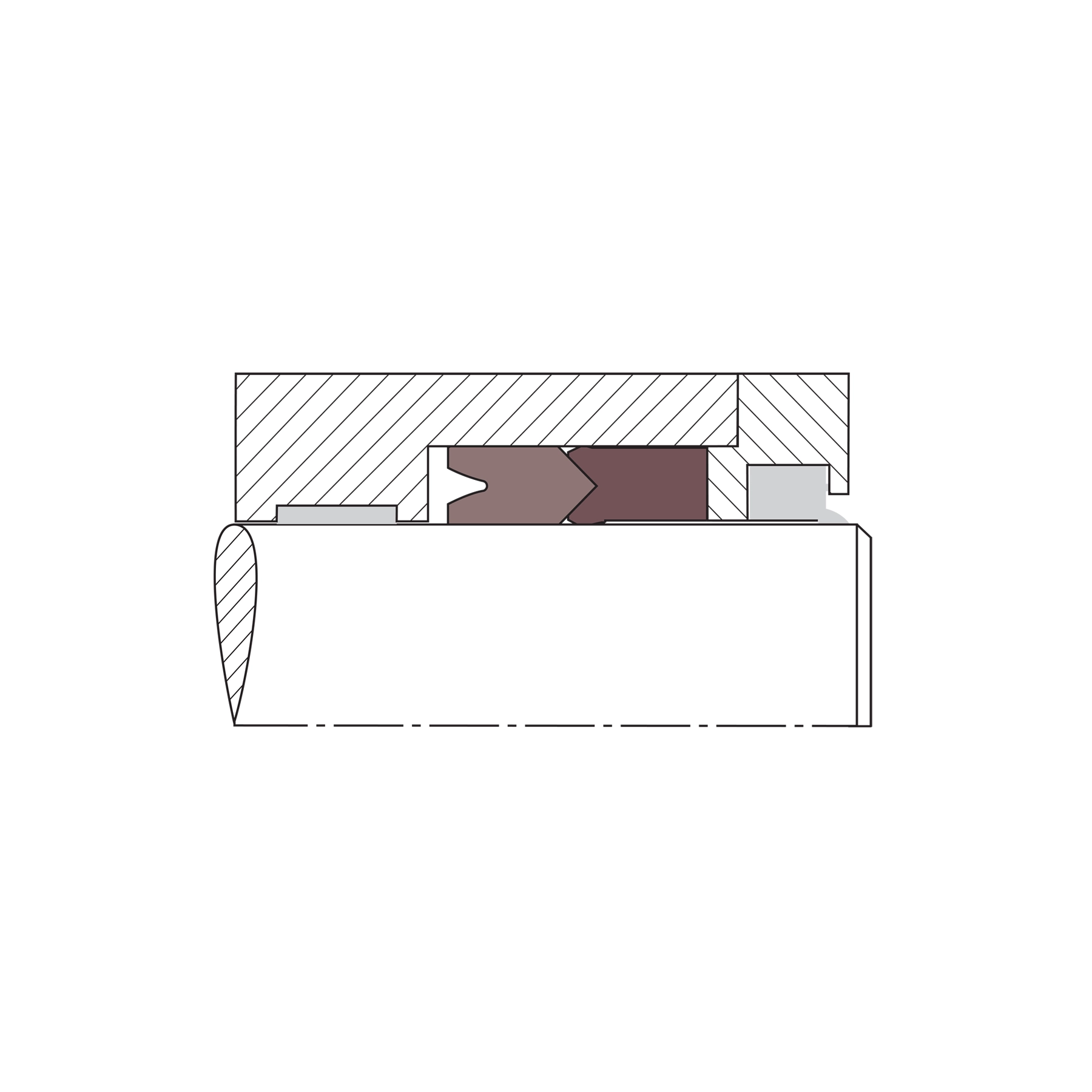

The 11K has a negative rake lip profile to optimize operating performance and ease installation into the stuffing box cavity. The set is available in various material combinations to accommodate new or used equipment, and can be supplied in split or solid designs. The bottom ring is the primary sealer, while the top ring provides secondary sealing and works as an anti-extrusion ring.
The 11KE is a popular profile used in telescoping cylinders and cylinders with long-stroke or high-side loads. It is an O-ring–energized rod seal that offers higher contact loads against the rod.
The 11K can be manufactured using a machining process that allows the flexibility to create any size based on equipment dimensions.
Product Features
-

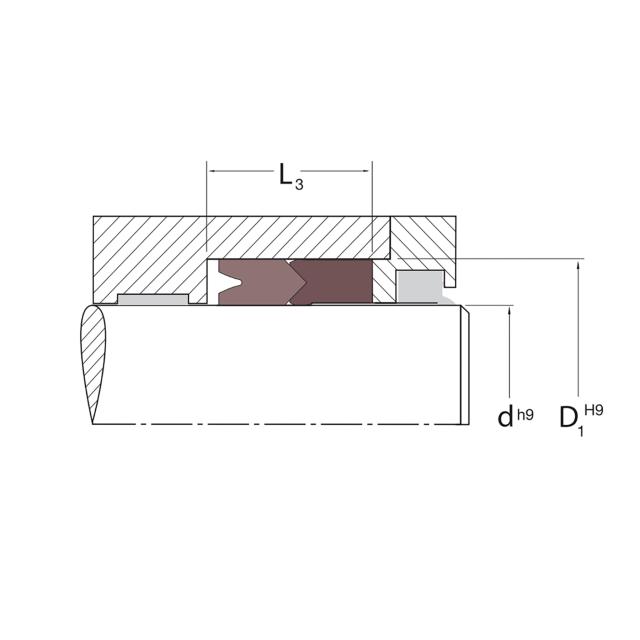

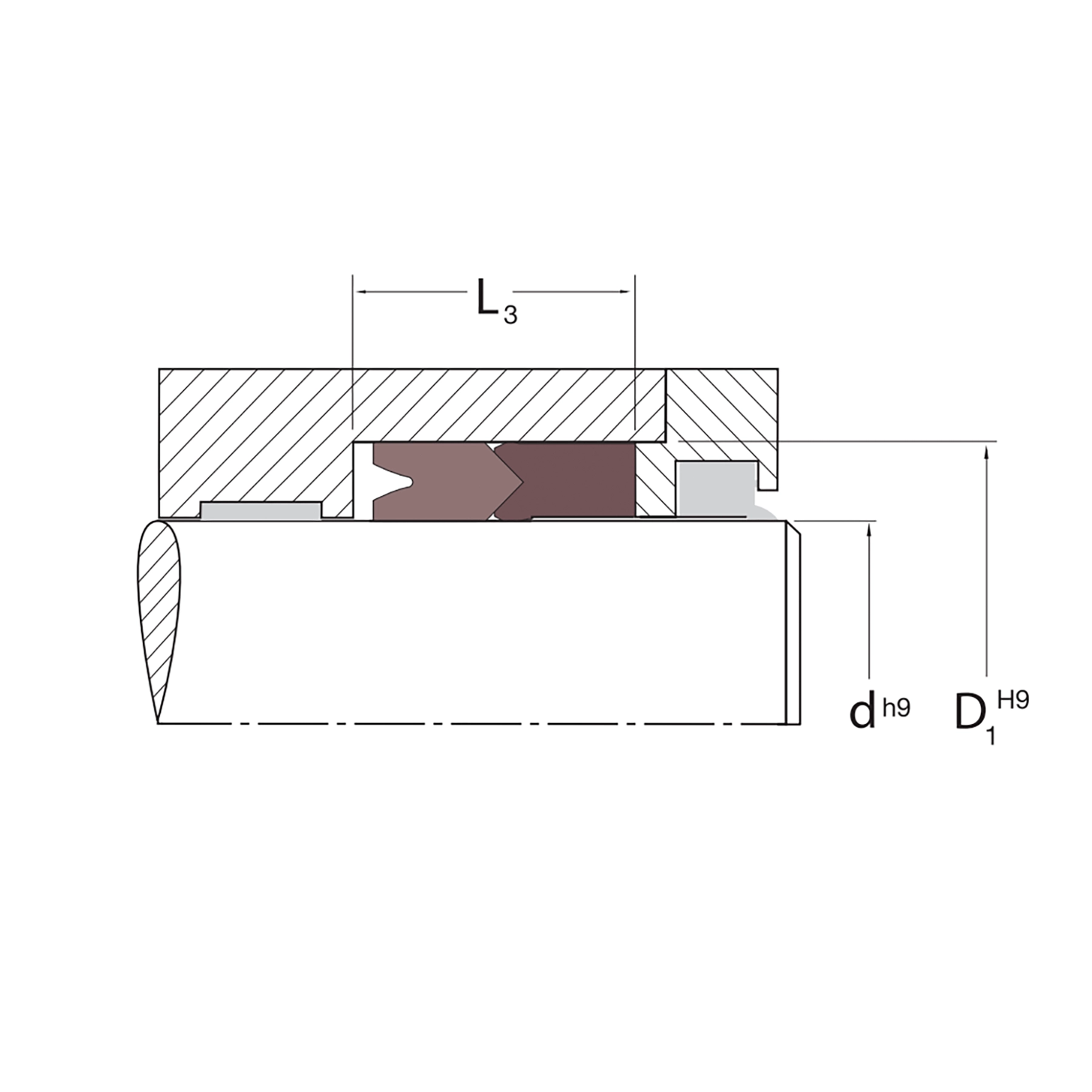

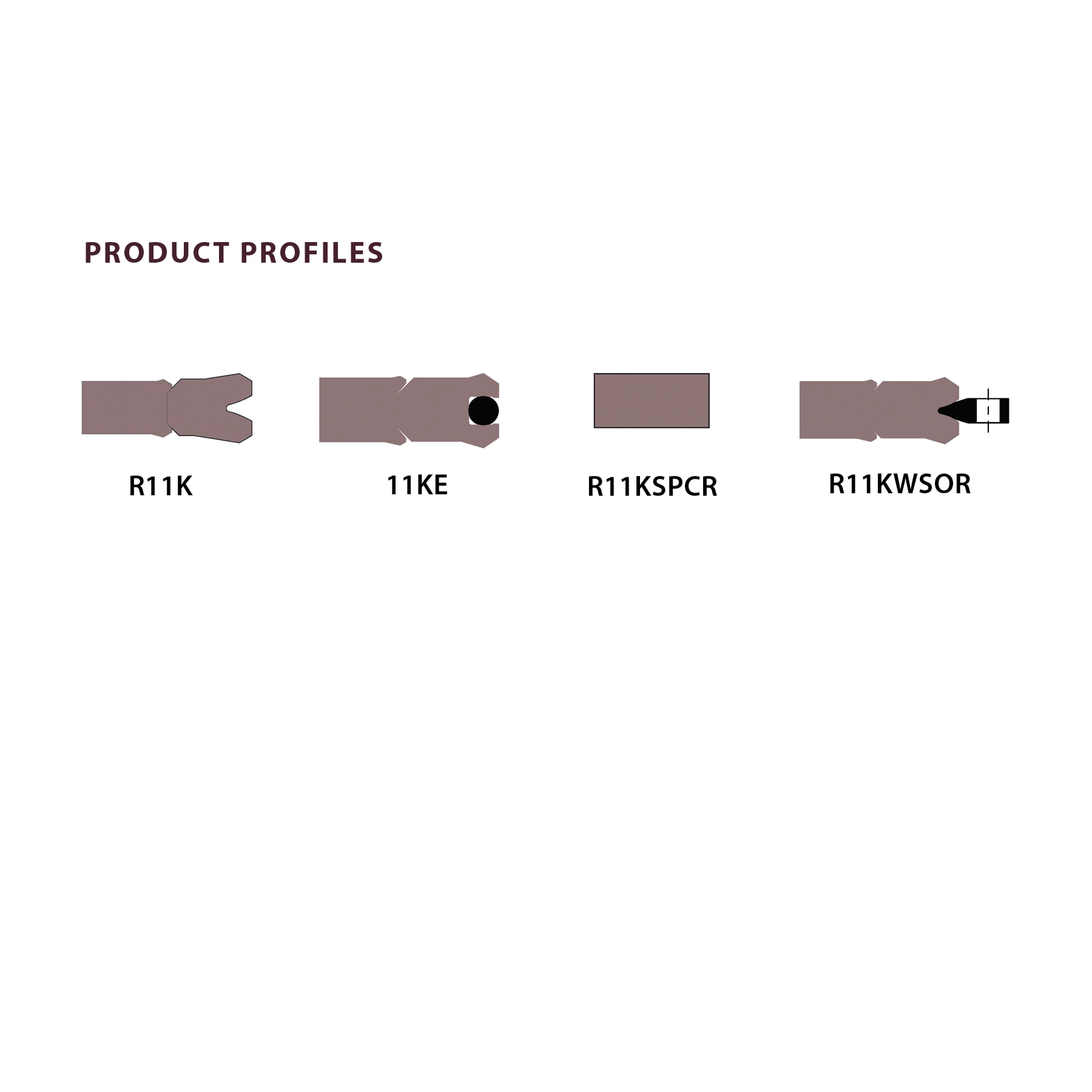

- Negative lip profile optimizes operating performance and eases installation
- No shimming; reduces tedious calculations and future adjustments
- Dual material combination works on both new and worn equipment
- Sizes made to accommodate international standards including ISO and DIN
Technical Data
| Temperature Min | -20 °F ( -30 °C ) |
|---|---|
| Temperature Max | 400 °F ( 200 °C ) |
| Speed Max | 1.5 m/s ( 300 fpm ) |
| Notes |
Temperature and pressure for AWC704 material
|
Let's talk
For inquires about products, sales, or to request a quote, please contact our Sales Office.
