    30KC Polymer Seal

    Cartridge Design for Sealing Powders and Viscous Fluids

    The Chesterton 30KC Polymer Cartridge Seals are used in dynamic rotary seal applications. This cartridge design uses high‑performance, filled PTFE materials proven to withstand the high shear rates, frictional heat, and abrasives that are common when pumping high‑viscosity products or moving powders.

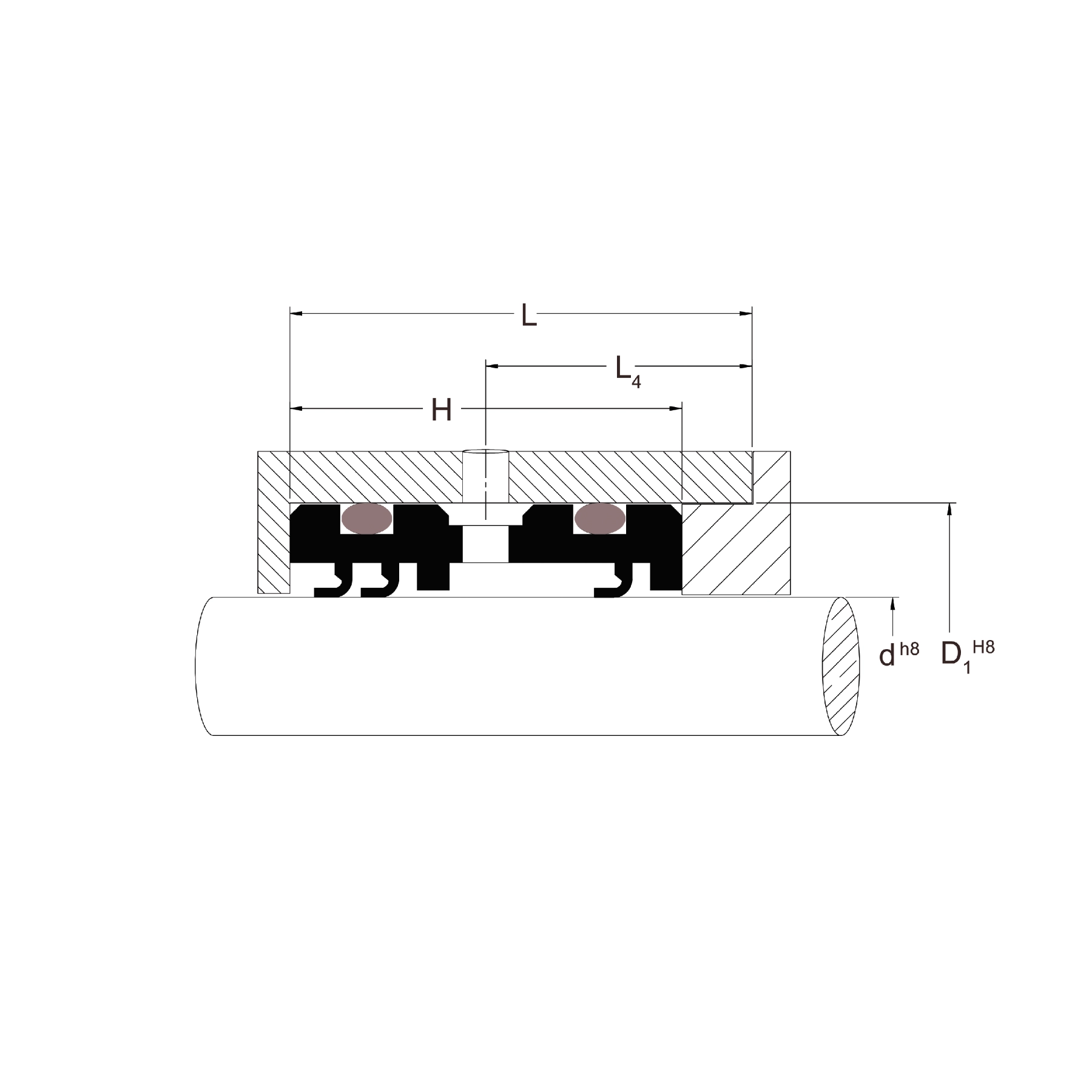

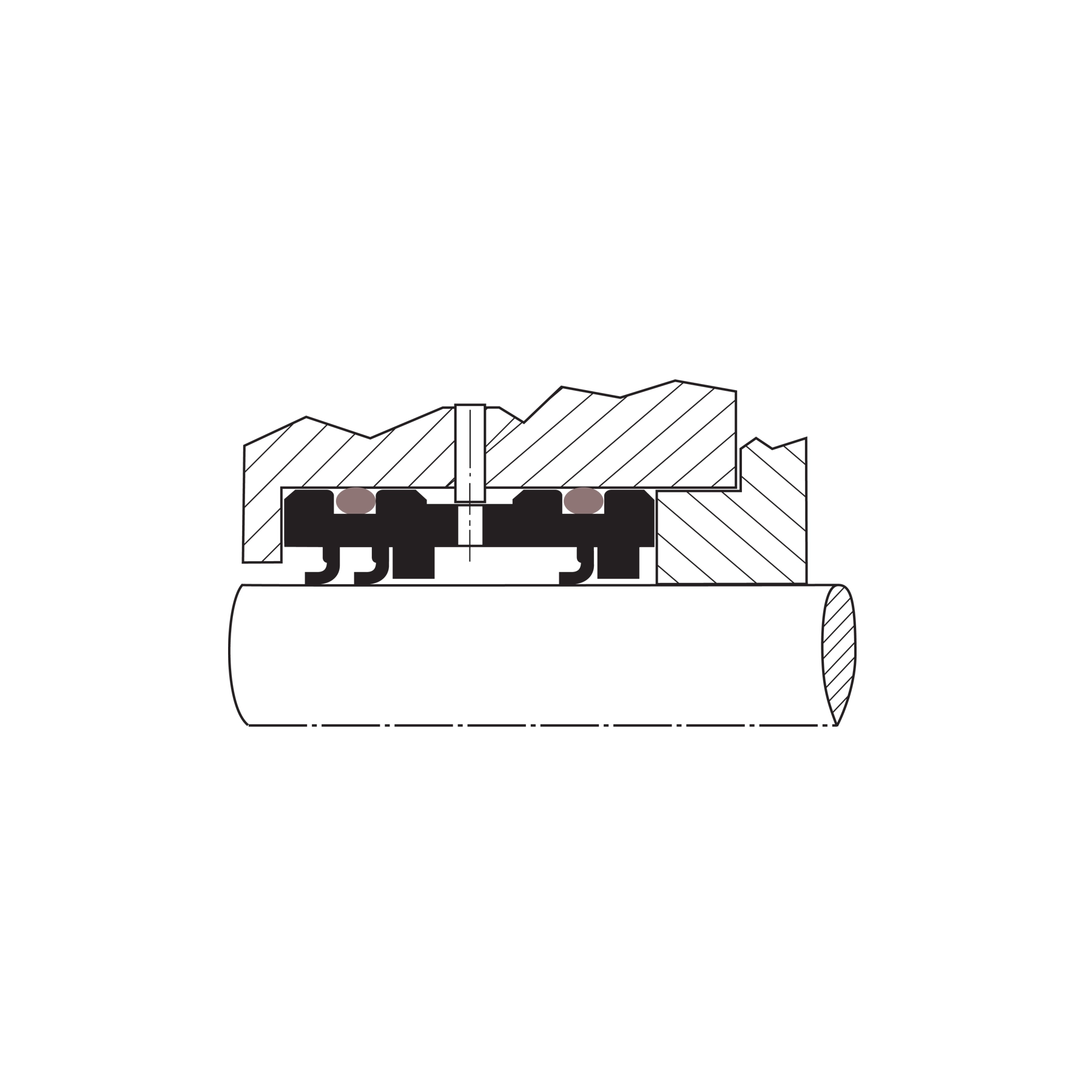

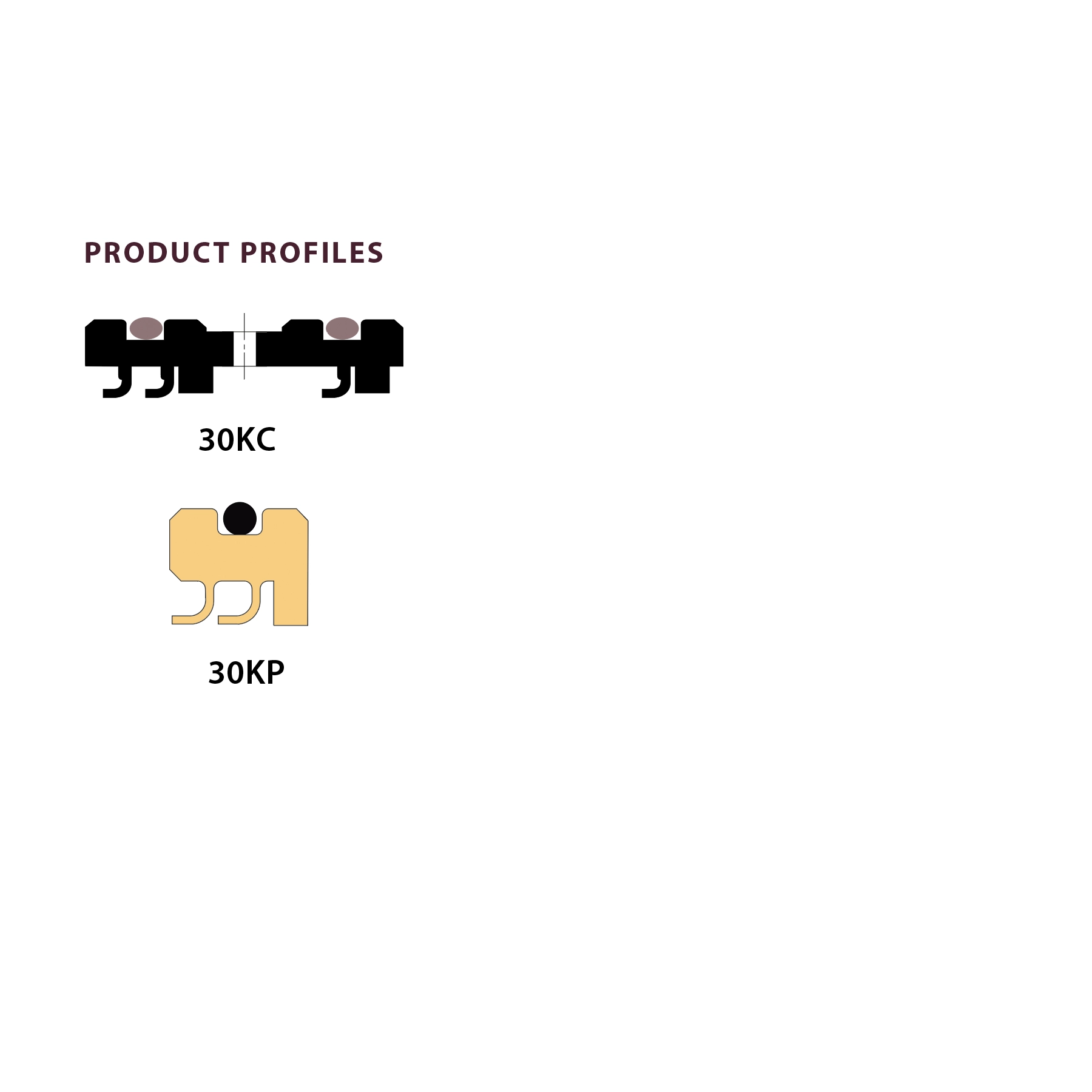

    The 30KC is designed with an inboard sealing element, an outboard sealing element, and built‑in flushing ports. The inboard lip seals process fluid, the outboard lips seal barrier fluid, and the flush port allows for flushing. The versatile cartridge design is extremely tough and able to withstand adhesion between the sealing surfaces and shaft due to reacted material and dry‑running capabilities.

    The 30KC high‑performance, filled PTFE compounds are coupled with the unique seal design to provide excellent fluid compatibility, temperature resistance, and reduced frictional force, thus improving performance and reliability in demanding applications.

    All engineered cartridges are custom manufactured to equipment dimensions, eliminating the need for equipment modifications.



    Product Features

    • Outperforms conventional packing, sealing viscosity fluids, and dry powders
    • Decreases downtime, easy-to-install, versatile cartridge design
    • Improves performance of compression packing, distinct PTFE materials
    • Custom-designed cartridges made to equipment dimensions

    Product Literature

    UDETAIL4086
    UDETAIL3527
    UDETAIL3389

    Technical Data

    Temperature Min -30 °F ( -35 °C )
    Temperature Max 400 °F ( 200 °C )
    Permissible Compressive Load 1 Mpa ( 150 PSI )
    Speed Max 5 m/s ( 984 fpm )
    Mating surface (Rockwell C) >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45, >45
    Recommended Use

    AWC 100 /Excellent dry / Excellent low viscosity (<2,000cp) Powders, oil, resins, glues, paints /No water or steam
    AWC 300 /Excellent high viscosity (>2,000cp) Good dry, water or steam
    AWC 400 /Excellent in water or steam Good dry and low viscosity pow- ders, asphalt, clay, slurries
    AWC 510 /Excellent dry Good in water or steam  chocolate and syrups / No petroleum liquids
