Matrix Seal

Easy-to-Install, Patented, Split Rotary Seal for Worn Shaft Applications

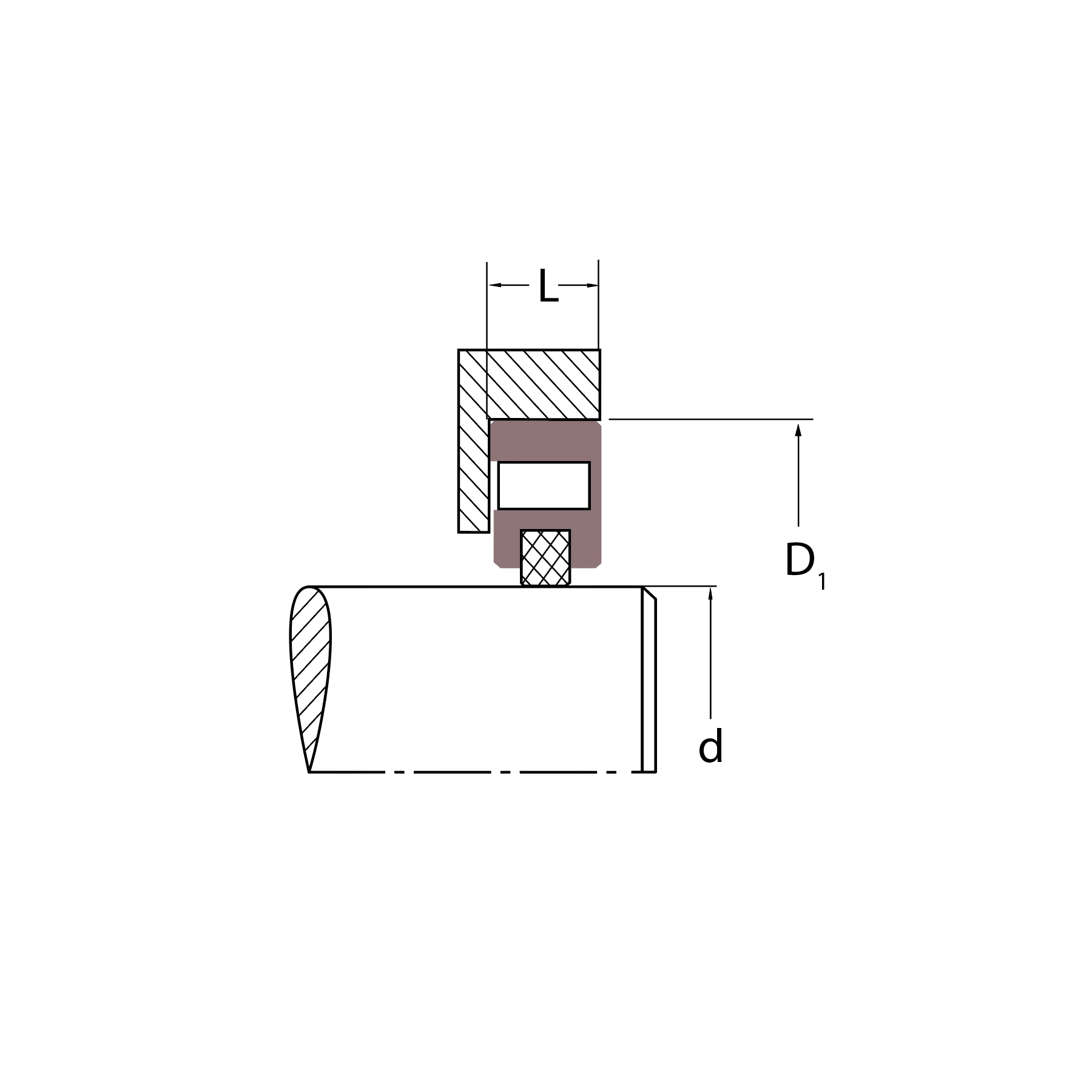

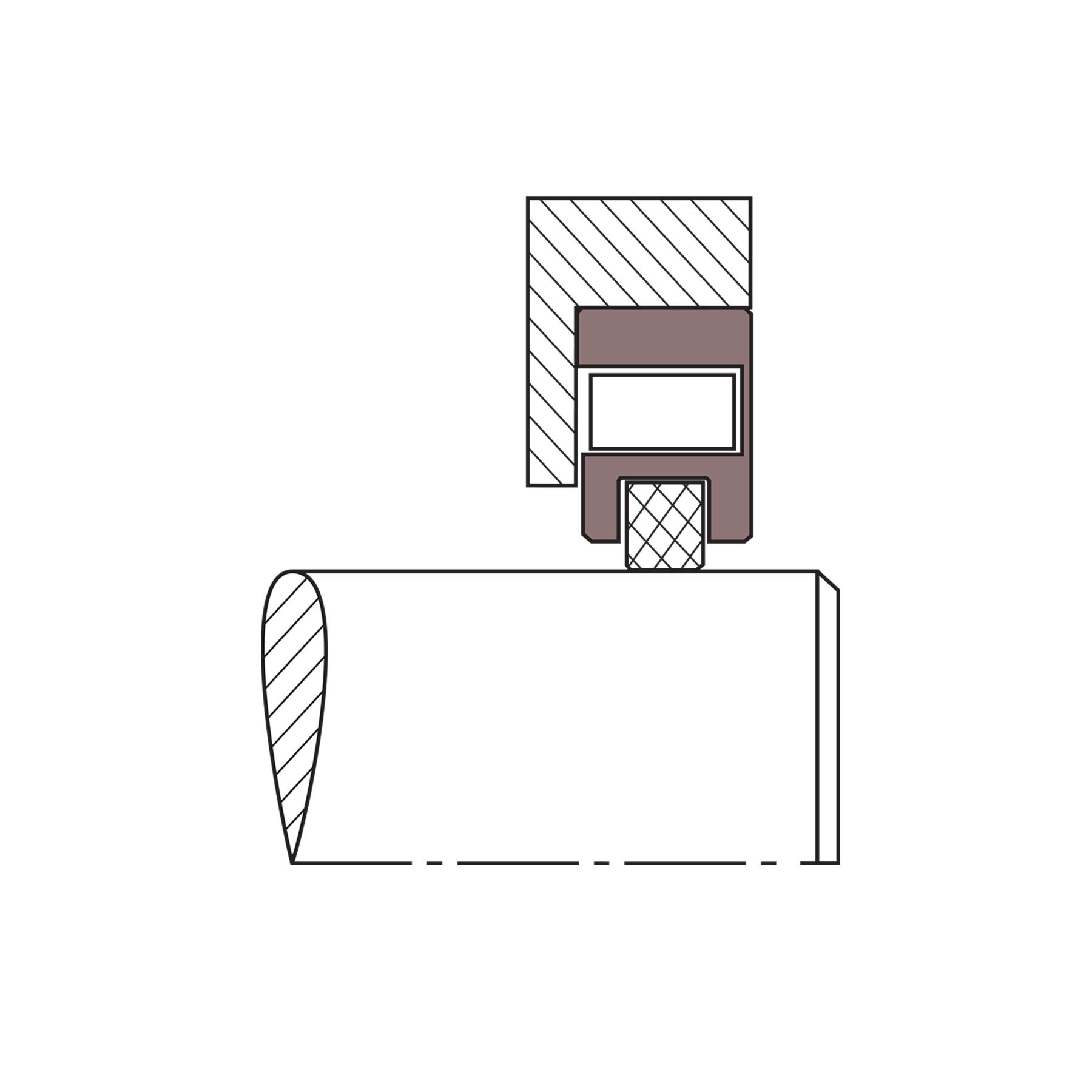

The Chesterton patented Matrix Rotary Seal is a split-bearing seal developed  to work on worn equipment and large runout shafts. This unique seal protects pumps, gearboxes, and other rotating equipment. The innovative split design minimizes equipment disassembly, and downtime to help ensure optimal continuous operation of critical equipment. This product is a robust, maintenance-friendly, easy-to-install solution to address equipment with: Worn Shafts/Sleeves, High Vibration, Large Runout, and Blind Installations. Matrix Split Seal Design and Function: The innovative unitized design combines Chesterton’s leading polyurethane and impregnated synthetic fiber packing technology to maximize seal performance and reliability.



Product Features

  • Engineered for large runout and worn equipment
  • Minimizes cumbersome equipment teardown and downtime
  • Excludes external  contamination, preserves internal lubrication
  • Flexible design provides ease of installation
  • Manufactured to custom equipment dimensions and requirements
  • Suitable for various industries, including steel, mining, paper, and agricultural

Technical Data

Applications
  • Pumps
  • Gearboxes
  • Conveyors
  • Motors
  • Fans
Temperature Max 185 °F ( 85 °C )
Speed Max 15 m/s ( 3000 fpm )
Notes
Compatible with all commonly used bearing and gearbox oils and greases
