20KD Face and Static Seals
- High Performance O-Ring Upgrade for Static Sealing

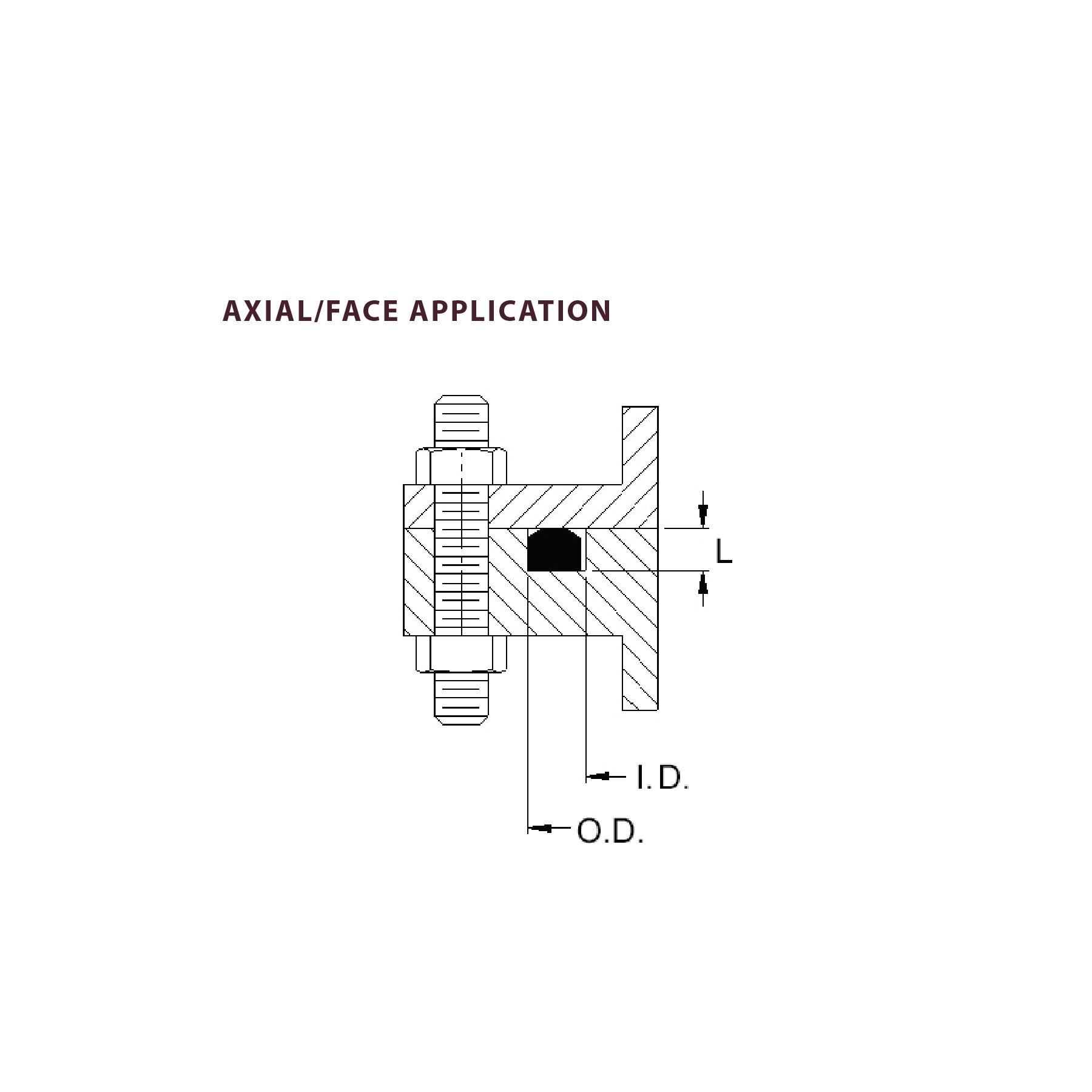

The Chesterton 20K D-Ring is a continuous compression seal designed for use in static applications, and is often applied as an upgrade to conventional face seals or O-Rings. The 20KD design provides excellent performance in static applications in hydraulic or pneumatic equipment including flange and valve control units.
Product Features
-
- Upgrade performance from conventional face seal and O-Ring designs
- Superior wear and extrusion resistance versus conventional materials
- Low compression set characteristics
- Unique manufacturing process allows the flexibility to create any size*
- Sizes made to accommodate international standards including ISO and DIN
Technical Data
| Temperature Min | -30 °F ( -20 °C ) |
|---|---|
| Temperature Max | 400 °F ( 200 °C ) |
| Permissible Compressive Load | 16 Mpa ( 2320 PSI ) |
| Size Low | 6 mm ( 0.25 inch ) |
| Size High | 304.8 mm ( 12 inch ) |
