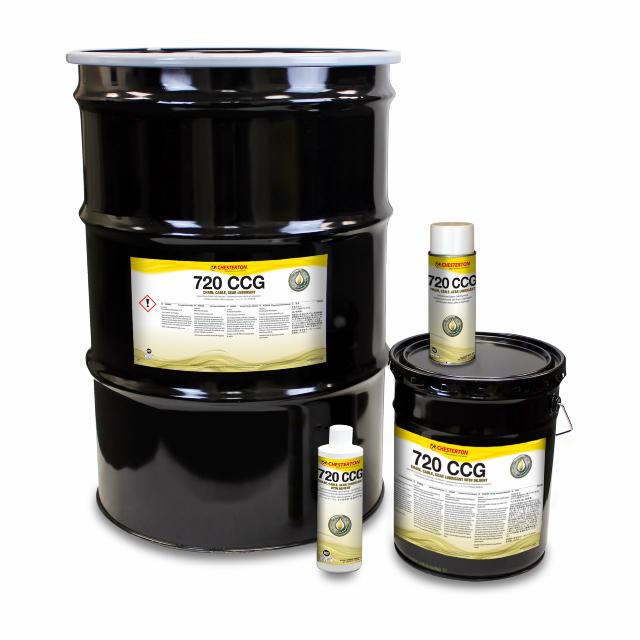

720 CCG Chain, Cable, and Gear Lubricant

Extreme Pressure, Water, and Corrosion Resistant; Tacky, Semi-Fluid Grease
Chesterton 720 CCG is a multi-use, off-white translucent, polymer-modified synthetic lubricant. This product is well suited for applications requiring a high-pressure resistance and a durable film to protect equipment.

Due to high shear strength and self-adhering film, 720 CCG will not fling off or extrude like ordinary oils and greases. Chesterton 720 CCG forms a robust “wear shield” which stays in place even under the most extreme pressures. The contact surfaces are cushioned, thereby extending life of chains, sprockets, wire ropes, and gear drives.

720 CCG lubricant’s anti-corrosion action and water resistance protect chains, wire ropes, and gears exposed to moisture and corrosive liquids and vapors, far exceeding conventional grease technology.




Product Features

  • Lubrication and protection in one product
  • Polymer-modified synthetic base
  • Self-adhering, non-dripping lubricant
  • High pressure resistant
  • Water and corrosion resistant
  • Shear stable lubricant
  • Light color, translucent film; off-white
  • NSF registered H1

Technical Data

Applications
  • Chain drives/sprockets
  • Small pitch open gears
  • Hoists/cranes, wire ropes/cables
  • Oven chains and chain conveyors
  • Worm drive gearboxes, motor-operated valves

ASTM D2422, DIN 51 519 - ISO VG 680
Texture Tacky, Semi-Fluid Grease
Color White
Apparent Viscosity (Brookfield at 25C) 150000 cPs
ASTM D 2596 - Four Ball Weld - Weld Load 1763 Lbf ( 800 Kgf )
ASTM D2266, DIN 51 350/5 - Four Ball Wear Test 0.57 mm ( 0.02 in )
Corrosion Resistance (5% NaCI - ASTM B117) >1000 hrs. @50 micron thickness
Available Container Sizes

Size

  • 20 L
