1810

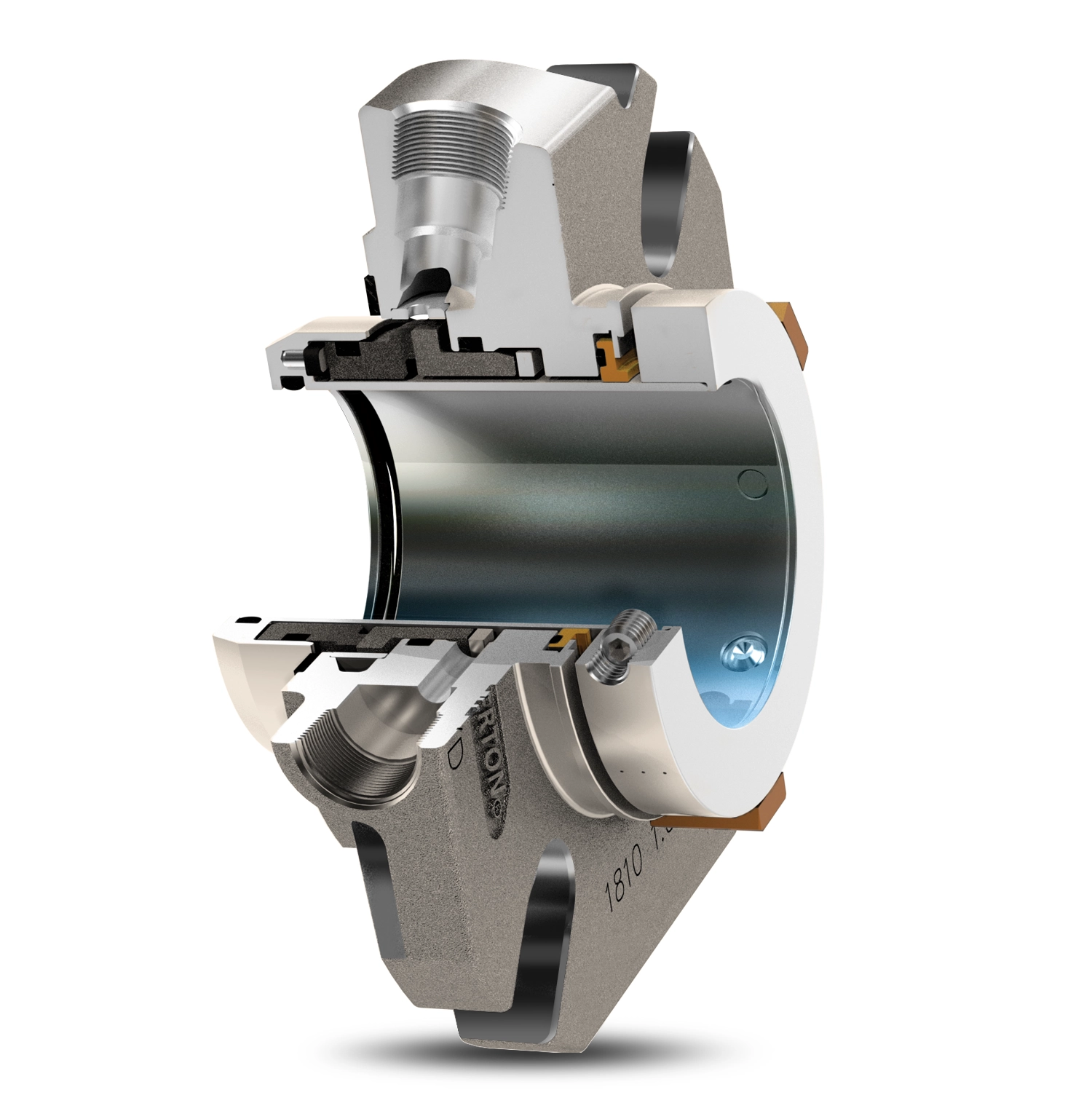

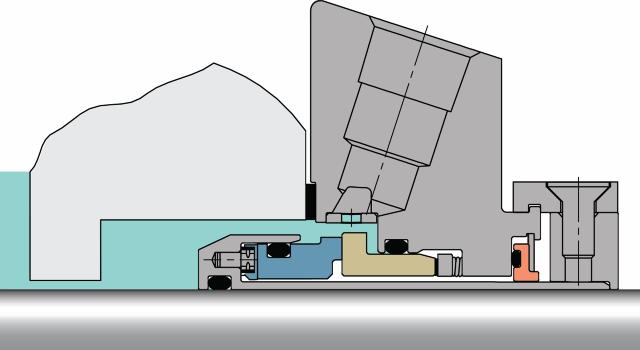

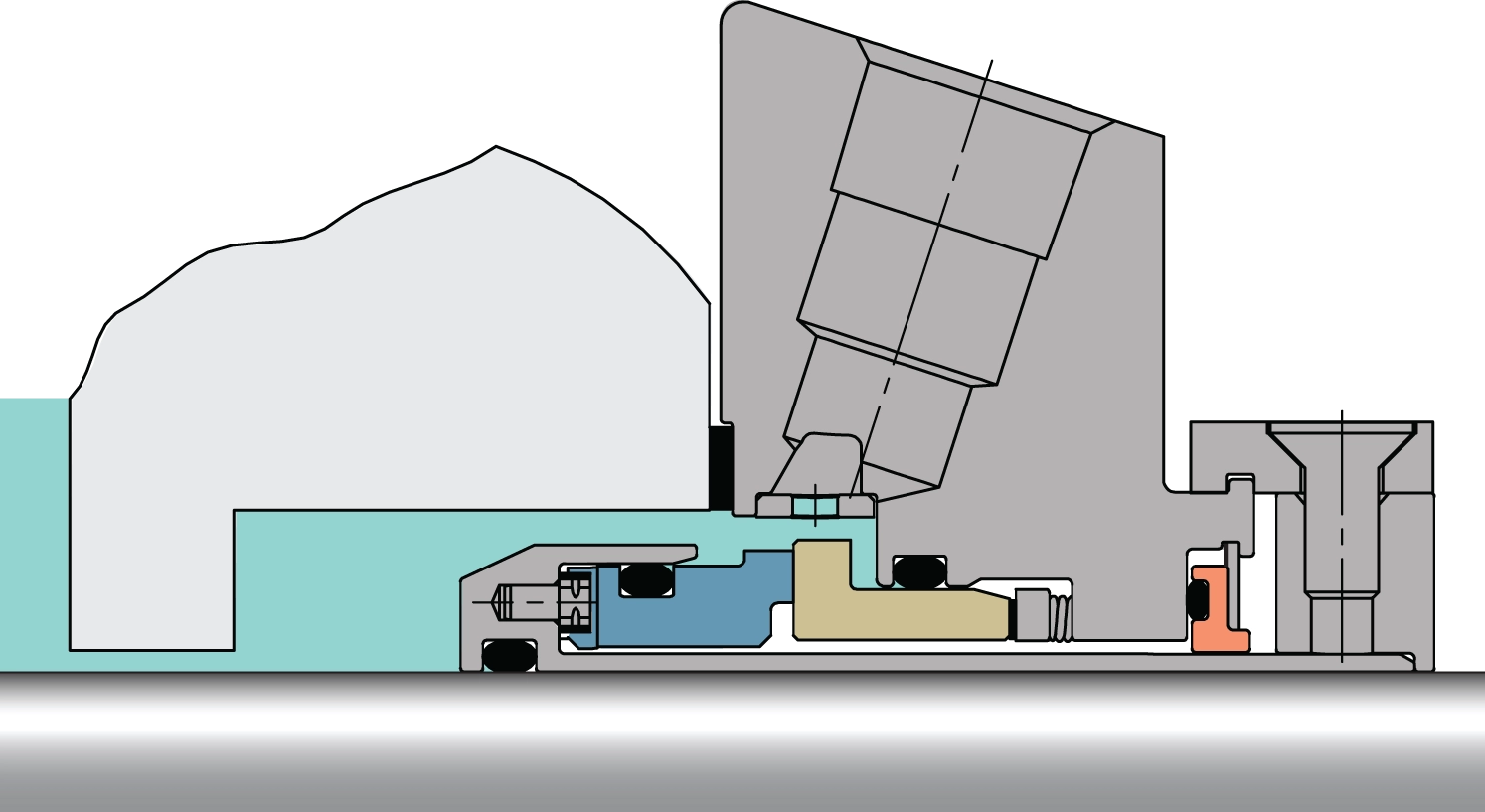

Heavy-Duty Modular Single Cartridge Seal

Built on Chesterton’s AXIUS™ modular platform for simple configuration and installation plant-wide

The 1810 Single Cartridge Seal offers you the ultimate in  seal quality, flexibility, and convenience. Leveraging Chesterton’s proprietary AXIUS modular platform, the 1810 can be configured with several different face profiles and auxiliary components which allows seal performance to be tailored to a wide range of  process conditions. A plant-wide sealing solution, the 1810 is effective for both simple and highly demanding applications. It offers selectable features around a common gland housing. This flexibility allows for the creation of the best sealing parameters for your equipment and application needs to maximize single seal reliability.



Product Features

  • Simplifies configuration and maximizes seal performance with the AXIUS™ modular platform
  • Maintains reliability through-out temperature cycling and stop/start processes with monolithic seal faces
  • Increases face life and reduces contact stress with cushioned drive pins
  • Allows for easy, positive seal identification with ViewIn™ technology
  • 5 Key Seal Design Features: * Balanced Design * Non-Fretting * Monolithic Seal Faces * Stationary Design * Protected Springs

Technical Data

Size Range 25 to 200 (1 to 8 )
Standards and Approvals ISO-3069-S, ASME B73.1, ASME B73.2, NSF61

Materials

Springs EN 2.4819 (Alloy C-276)
Elastomers FKM, EPDM, FEPM, FFKM
Faces CB, TC, SSC
Metals 316SS, EN 1.4401, Other Metallurgies available on request


Operating Conditions

Pressure Limit Vacuum 711 mm Hg Vacuum ( 28 in Hg vacuum )
Pressure Limit Rotating 600 PSIg ( 40 BARg )
Speed Max 25 m/s ( 5000 fpm )
Temperature Max 570 °F ( 300 °C )
Temperature Min -67 °F ( -55 °C )
Notes

Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering.
