2510
- General Duty Double Cartridge Seal
Simple Installation and Increased Plant-Wide Reliability in General-Duty Applications

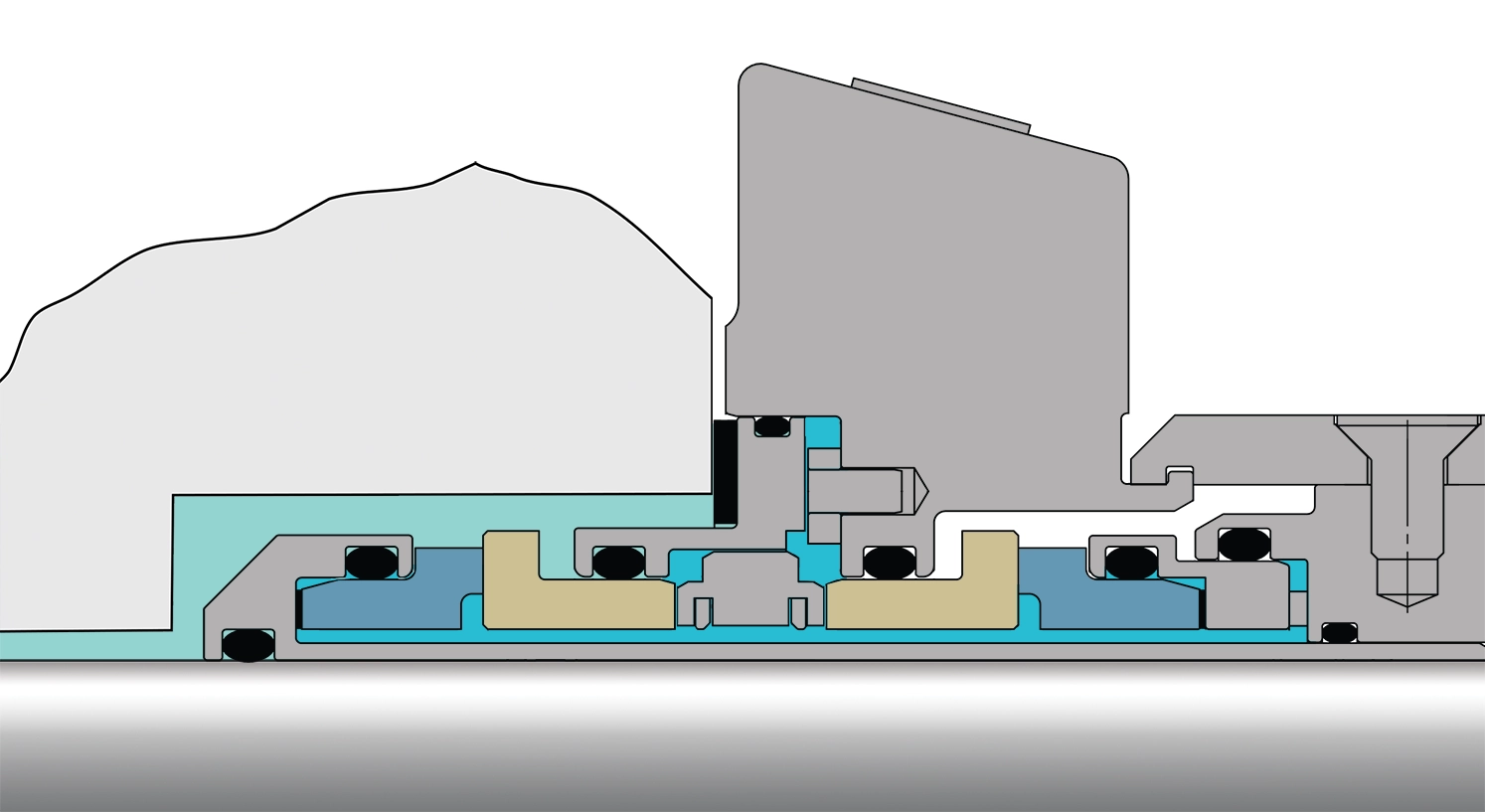

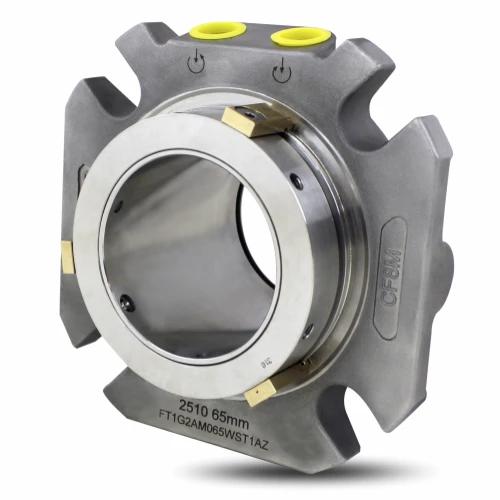

Built on Chesterton’s AXIUS™ platform of performance cartridge seals,the Chesterton® 2510 Double Cartridge Seal is designed for maximum reliability, making it an ideal solution for plant-wide standardization of general-duty applications in a field-repairable package. Engineered with a hydraulically double balanced construction, the seal is designed to endure any pressure reversals, shifts, or surges, keeping the faces reliably closed.

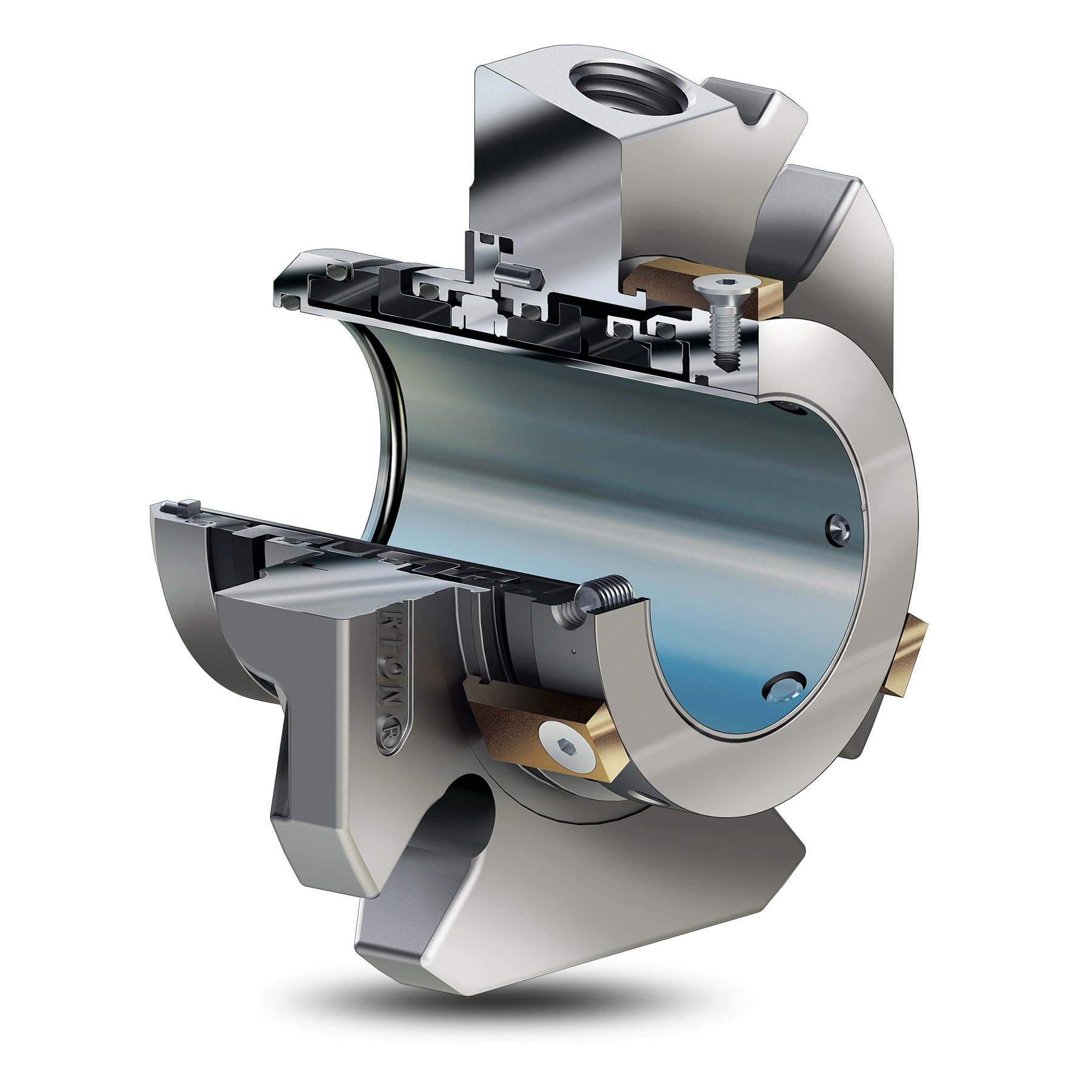

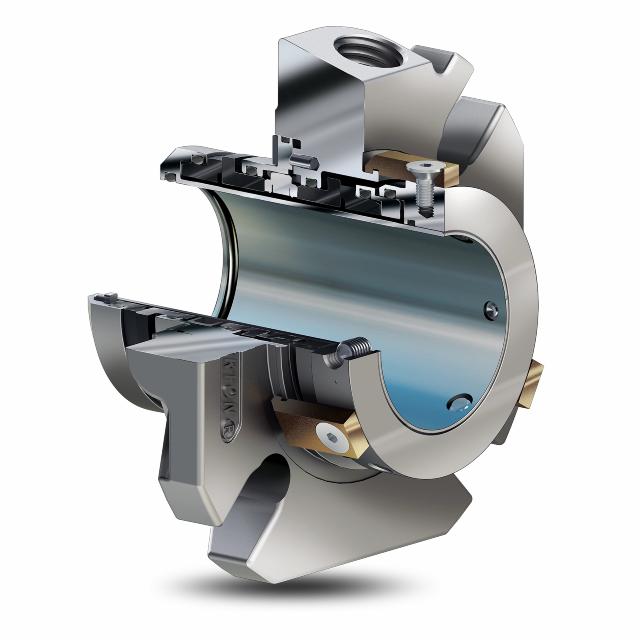

The 2510 Double Cartridge Seal offers increased cooling and flow capabilities, resulting in cooler operating seal faces – even at elevated temperatures – through the design of unique sleeve and gland features. Integrating proven technologies from Chesterton’s long history of mechanical seal designs, the 2510 Double Cartridge Seal sets the new standard for general-duty double cartridge seals.
Product Features
-
- Improved motion capabilities to handle both static/dynamic misalignments and shaft motion
- Reliable through temperature cycling and intermittent operation due to monolithic seal faces
- Helps prevent damage to your equipment and internal components via true non-fretting design
Technical Data
| Size Range | 25 to 120 (1 to 4.75 ) |
|---|---|
| Standards and Approvals | ISO-3069C, ASME B73.1, ASME B73.2 |
Materials
| Springs | EN 2.4819 (Alloy C-276) |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Faces | CB, TC, SSC |
| Metals | EN 1.4401, Other Metallurgies available on request |
Operating Conditions
| Pressure Limit Vacuum | 711 mm Hg Vacuum ( 28 in Hg vacuum ) |
|---|---|
| Pressure Limit Rotating | 300 PSIg ( 20 BARg ) |
| Speed Max | 25 m/s ( 5000 fpm ) |
| Temperature Max | 570 °F ( 300 °C ) |
| Temperature Min | -67 °F ( -55 °C ) |
| Notes | Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering. |
