S10
- High Performance Single Cassette Seal

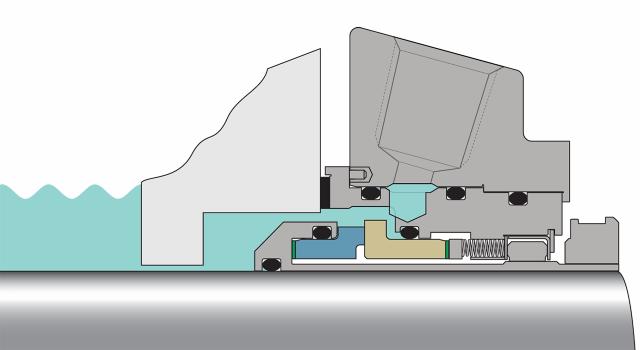

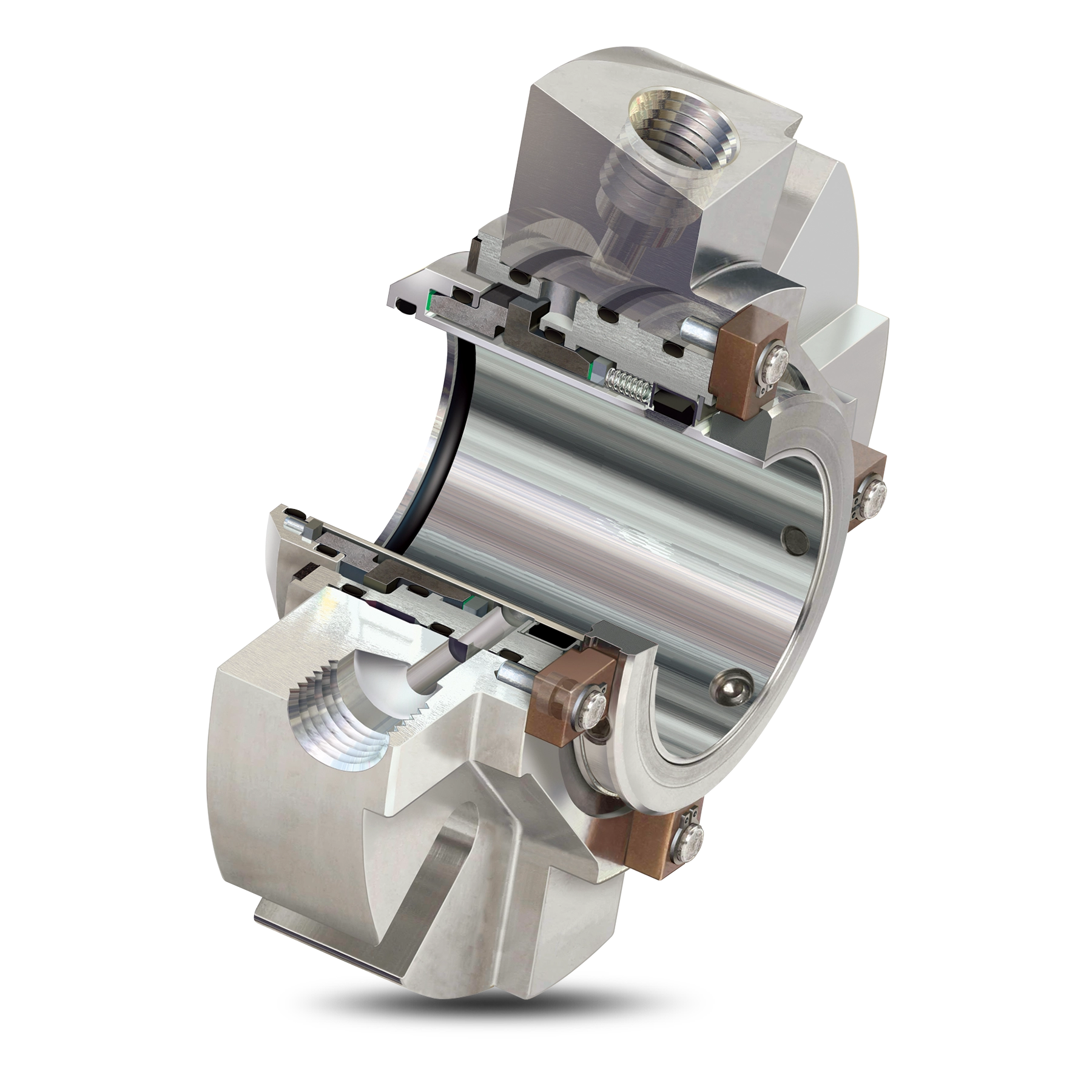

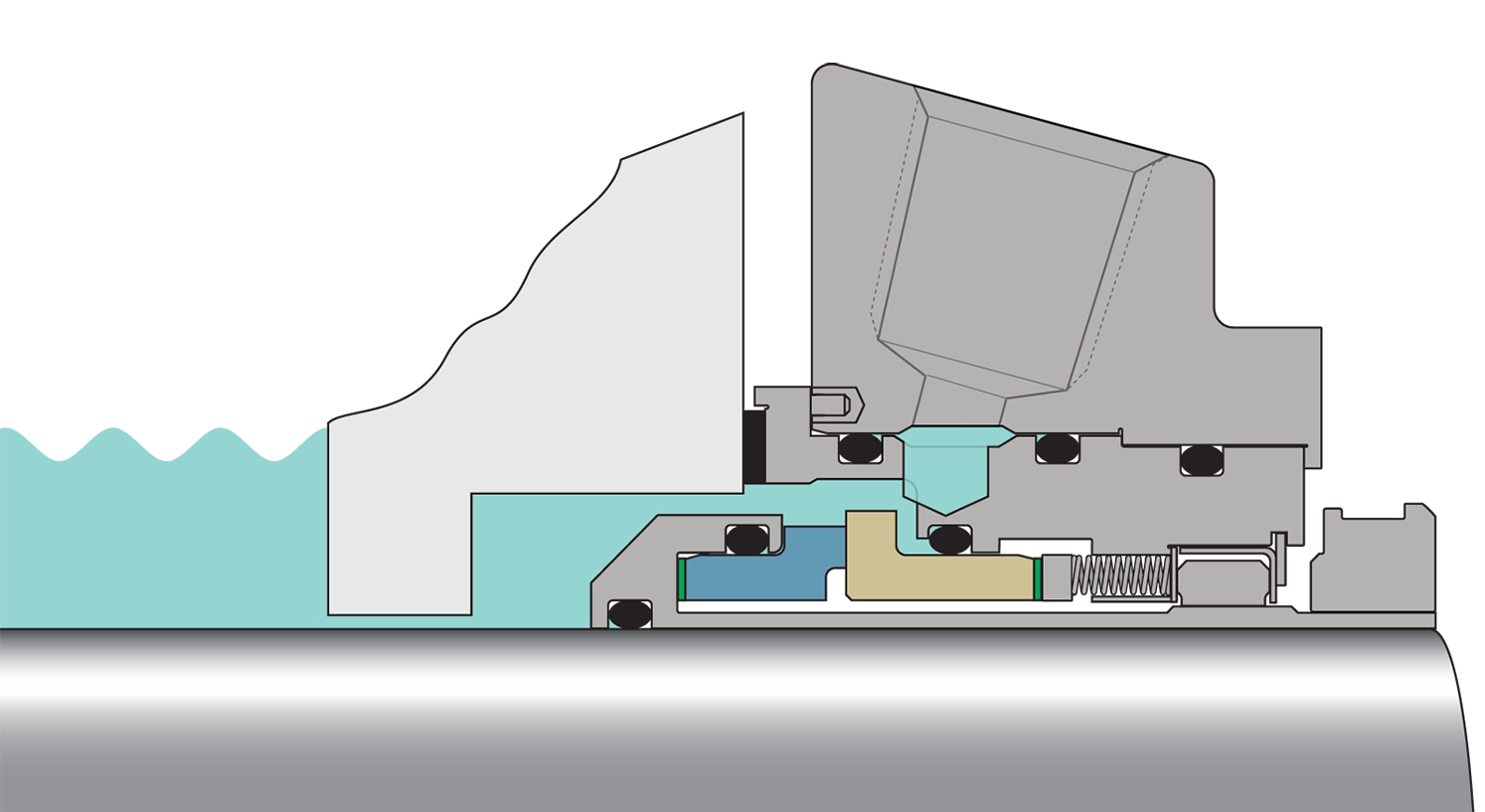

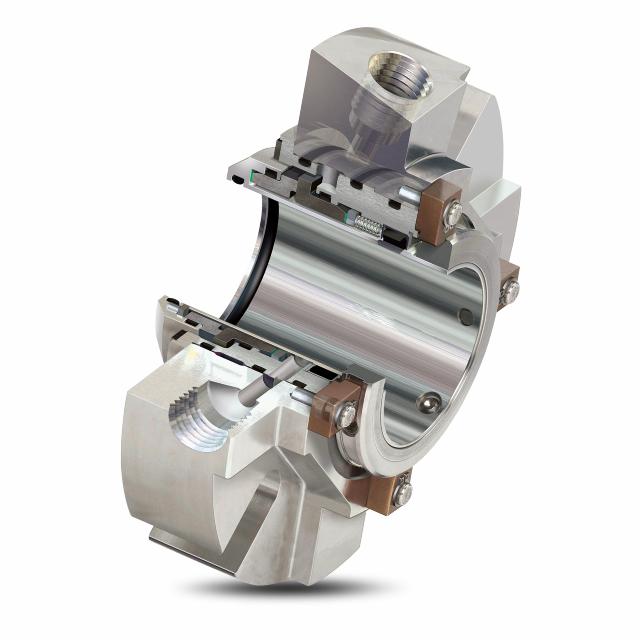

Unique modular cassette that combines advanced seal technology with flexibility in maintenance and repair.

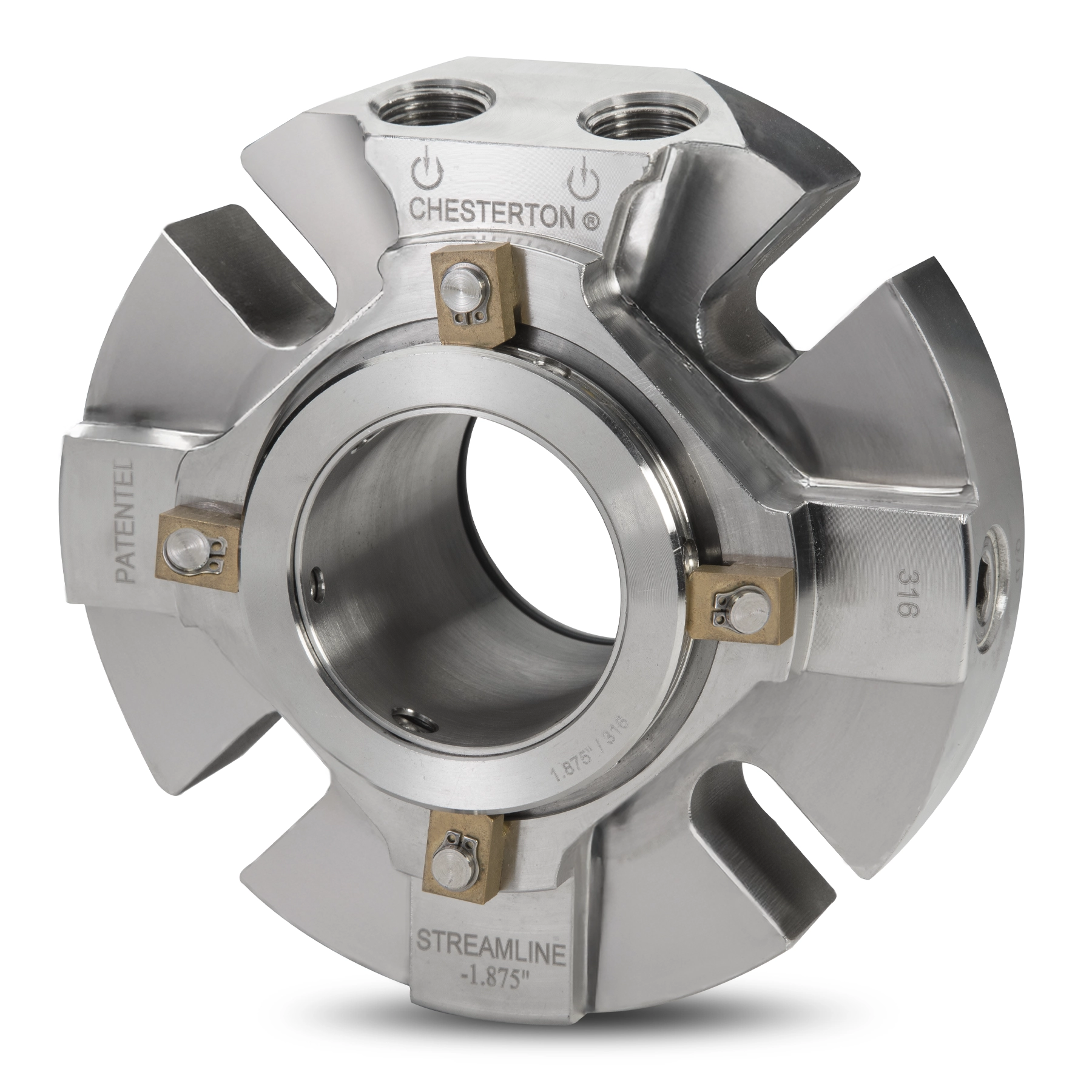

Simplify seal maintenance and increase equipment reliability with Chesterton's S10 Cassette Seal. Featuring a Self Centering Lock Ring and Self Releasing Setting Clips, the S10 offers quick, easy and accurate installation. The seal design increases seal capabilities and reduces the likelihood of seal-related downtime and associated overhaul costs. The unique cassette system allows for fast seal repair and plant-wide standardization.
Product Features
-
- One optimized sealing concept for plant-wide standardization
- Full-featured universal gland with quench/drain and multi-port flush
- Quick to repair with innovative cassette feature
Technical Data
| Size Range | 25 mm to 120 mm (1.000 inch to 4.750 inch) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ISO-3069C, ASME B73.1 |
Materials
| Faces | CB, TC, SSC |
|---|---|
| Metals | EN 1.4401 (316SS), Other Metallurgies available on request |
| Springs | EN 2.4819 (Alloy C-276) |
Operating Conditions
| Pressure | 711 mm (28") Hg Vacuum to 30 BARg (450 PSIg) |
|---|---|
| Temperature | -55 to 300 °C (-67 to 570 °F) |
| Speed | 25 m/s ( 5000 fpm ) |
| Notes | Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering. |
