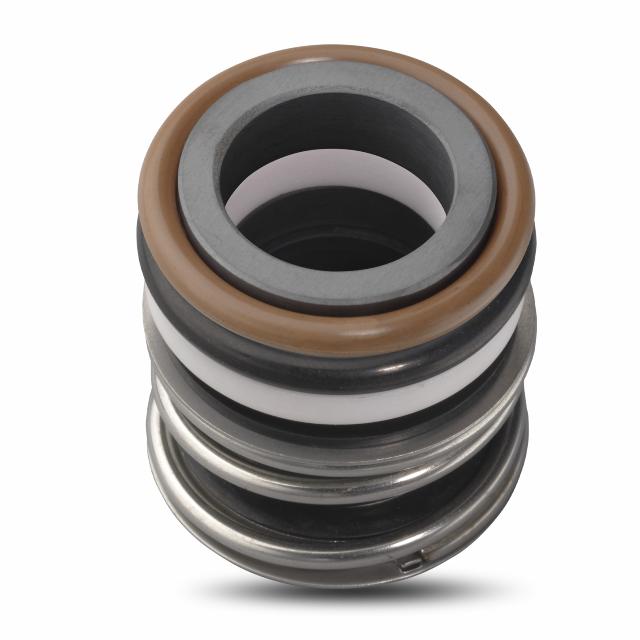

RBS Single Component Seal
- For Sealing Where Axial Space is at a Premium
With proven Chesterton quality, the RBS seal is the ideal choice for sealing small pumps where axial space is limited. Designed with a robust friction drive and large spring format, the RBS provides reliable sealing for a large range of fluids. The RBS seal fits in seal chambers according to EN12756 (L1k) standards as well as chambers with even shorter axial space. It comes with a choice of different mating stationary faces, allowing the RBS to fit in a wide pump population.
Product Features
-
- Bidirectional seal with short axial length—fits most small pumps
- Balanced
- Non-clog isolated springs
- Dynamic O-Ring is positioned on a replaceable component surface
- Fits EN12756 L1K dimension
Technical Data
| Size Range | 10 mm to 60 mm |
|---|
Materials
Operating Conditions
| Pressure Limit Rotating (BARg) | 12 BARg |
|---|---|
| Speed Min (m/s) | 10 m/s |
| Temperature Max (C) | 200 °C |
| Temperature Min (C) | -15 °C |
Let's talk
For inquires about products, sales, or to request a quote, please contact our Sales Office.
Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Brochure: Chesterton RBS Single Component Seal (English) | 353 KB |
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Instructions: Rubber Bellows Single Component Seal (English) | 1405 KB |
