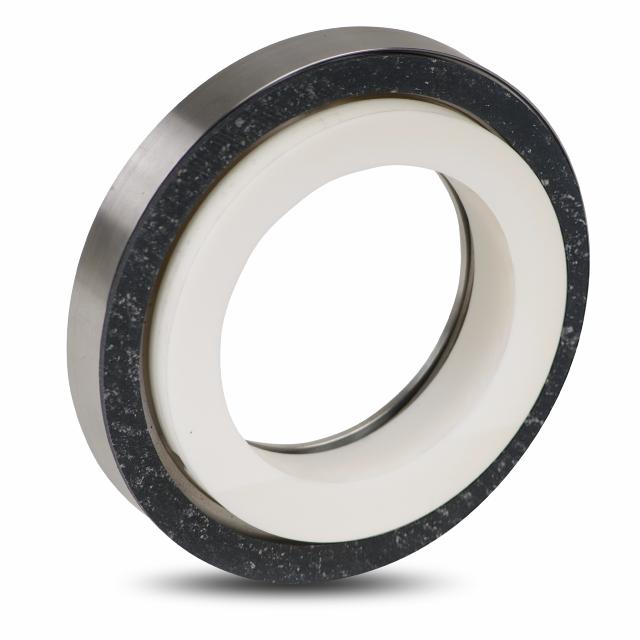

Self-Aligning Stationary Seal (SAS)
- Easy Installation; Compensates for Equipment Misalignment
This seal is specifically engineered to operate against Chesterton rotating seal units. The SAS compensates for equipment misalignment, resulting in optimized seal face tracking. The application of the Self-Aligning Stationary in conjunction with Chesterton rotating units results in a highly reliable sealing option for replacing lower technology OEM seals.
Product Features
-
- Self-aligning stationary face seal
- Designed for use with Chesterton rotating faces
- Reduces time of install and increases reliability
Technical Data
| Size Range | 25 mm to 110 mm (1.000 inch to 4.375 inch) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ASME B73.1, ASME B73.2, NSF61 |
Materials
| Faces | CR, SSC |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Metals | EN 1.4401 (316SS) |
Operating Conditions
| Temperature | -55 to 300 °C (-67 to 570 °F) |
|---|---|
| Speed | 20 m/s ( 4000 fpm ) |
