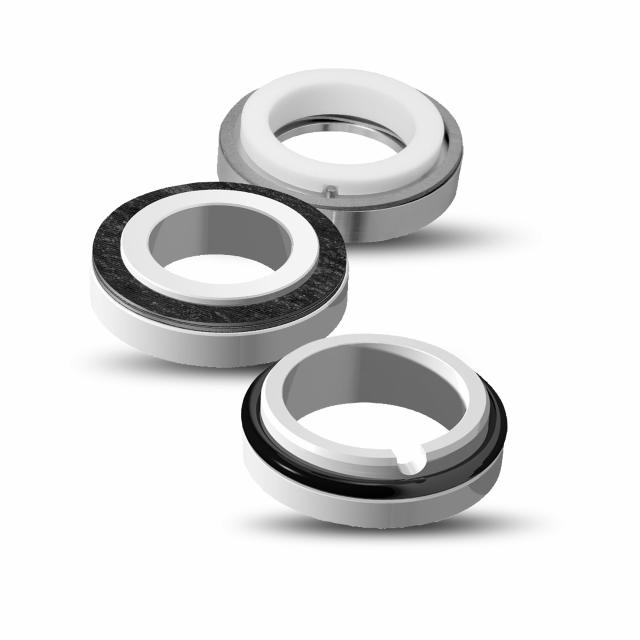

Stationary Seal Rings
- Versatile stationary seal rings primarily used with component seal designs
Various stationary seal ring designs can be assembled with Chesterton rotary units to make one complete, reliable replacement seal of the component design. These seal rings are designed to accommodate popular ANSI and DIN specifications.
Chesterton stationary replacement seal rings come in an array of designs and sizes. Chesterton seal rings are not plated nor are they combined with other inferior materials. They are all manufactured with high quality monolithic materials, which result in greater reliability.
Product Features
-
- Diverse material and profile options
- High pressure capable
- Monolithic design for enhanced reliability
Technical Data
| Size Range | 16 mm to 200 mm (.750 inch to 8.000 inch) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ASME B73.1, ASME B73.2, NSF61 |

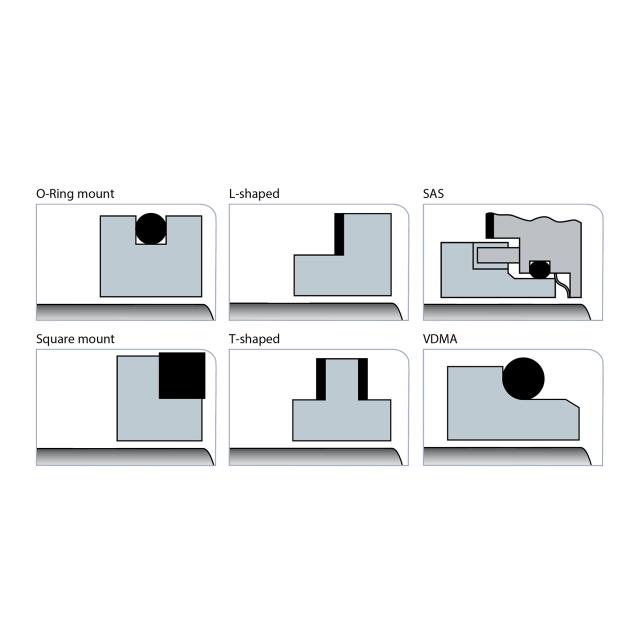

| Variants |
732 - O-Ring Mount 755 - O-Ring Mount, Slotted 773 - O-Ring Mount 782 - O-Ring Mount 414 - T-shaped 725 - Square Mount 714 - L-shaped 723 - L-shaped, Small OD 777 - L-shaped, ISO VDMA - DIN O-Ring Mount SAS - Self-Aligning Stationary |
Materials
| Faces | CR, TC, SSC |
|---|---|
| Elastomers | FKM, EPDM, FEPM |
Operating Conditions
| Temperature | -55 to 300 °C (-67 to 570 °F) |
|---|
