170L
- Slurry Single Cartridge Seal

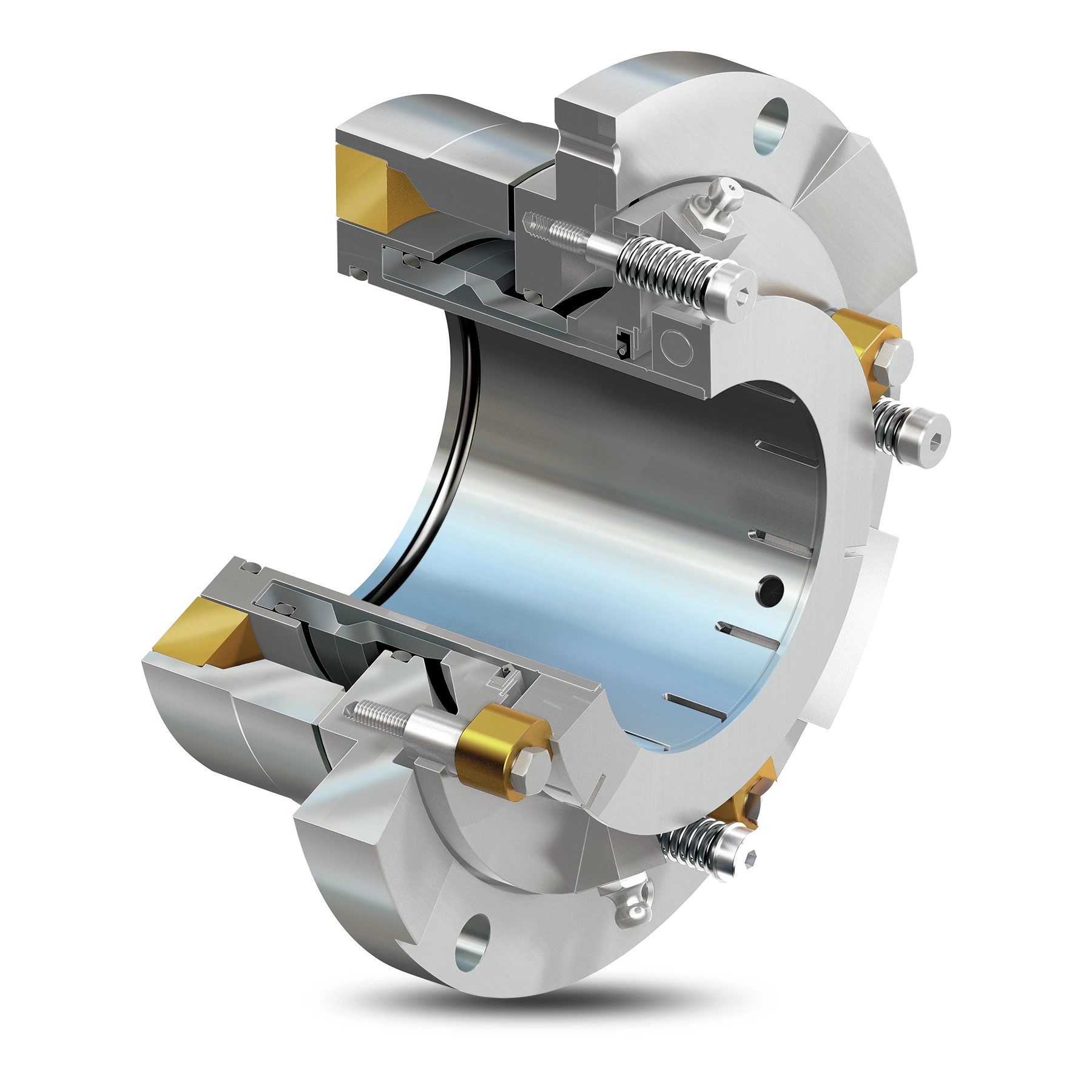

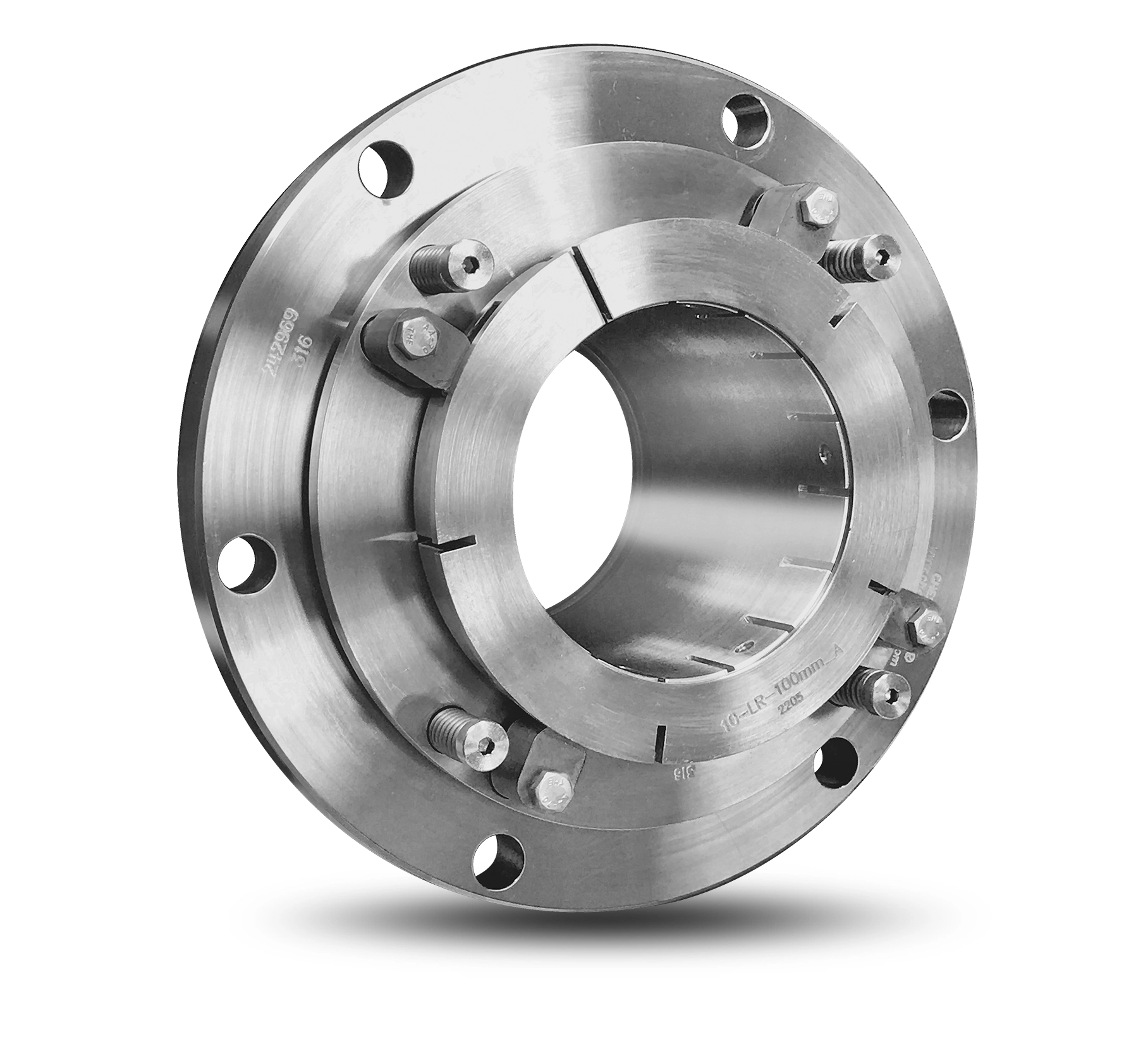

Engineered to operate in harsh, heavy consistency slurry environments and eliminate costly external seal flushes in the majority of applications, the 170L is designed for sealing mineral-based process materials such as ores, limestone, coal, sugar, and phosphates. The innovative, non-clog seal utilizes a unique coil spring design in which the springs are located entirely outside the product. The 170L uses a single clamping screw which simplifies seal removal in sticky or viscous fluids or where solids clog up the set screws. The 170L has large clearance and rugged components designed to resist the effects of heavy slurry environments. Plant optimization can be achieved through reduced product dilution and higher production rates.
Product Features
-
- Runs longer in heavy abrasive slurries without the need for flush or quench water
- Stationary springs located outside the seal for maximum reliability
- Clamp ring available for ease of installation
Technical Data
| Size Range | 50 mm to 220 mm |
|---|---|
| Variants |

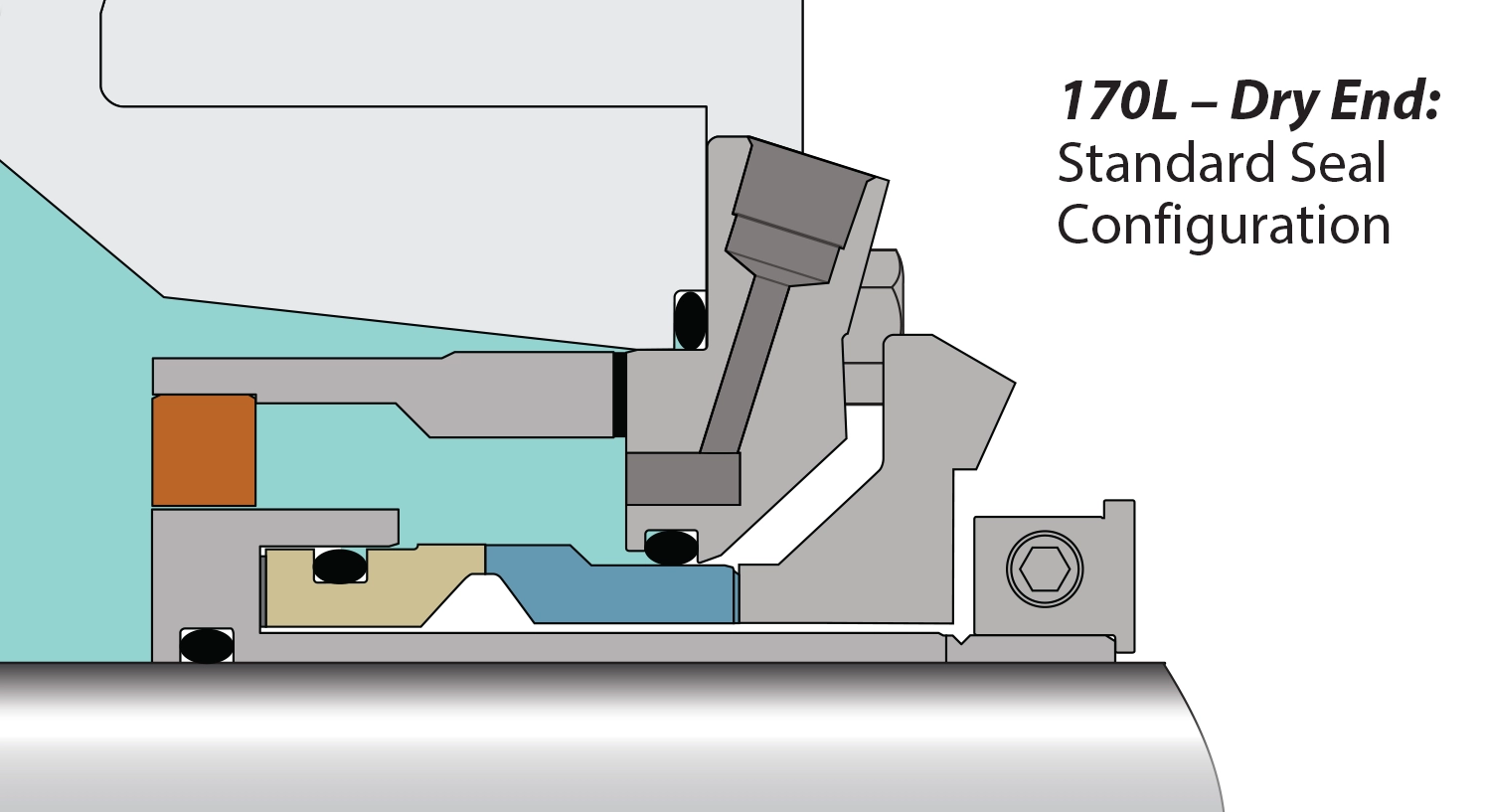

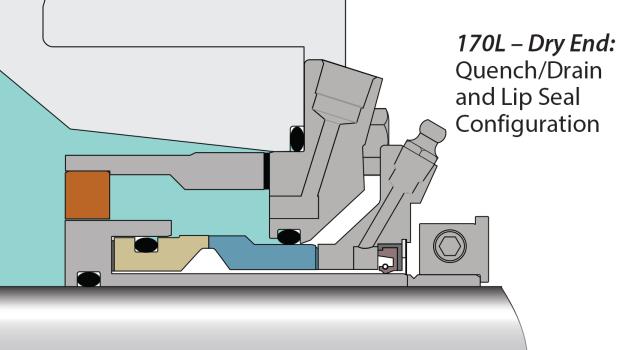

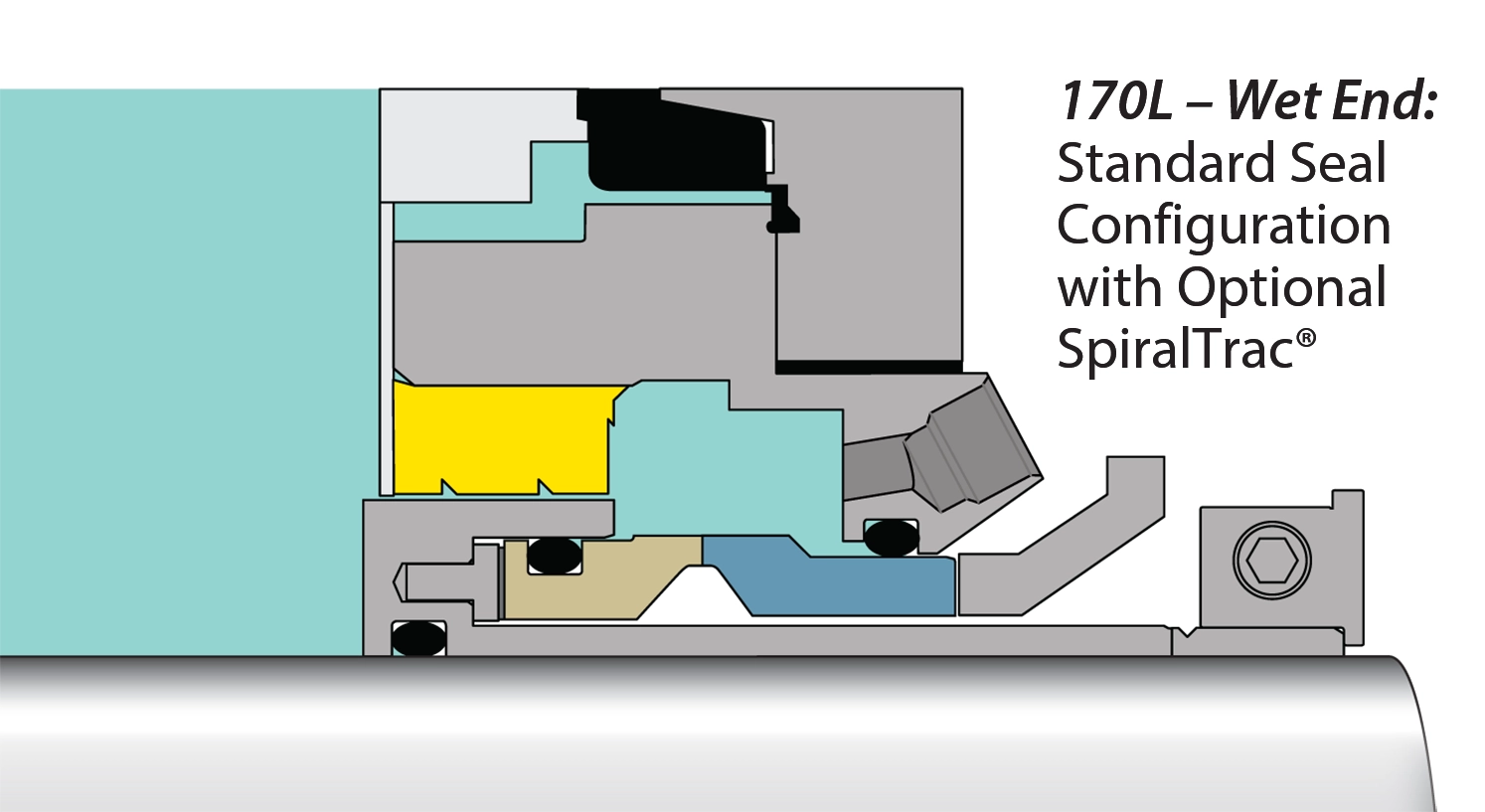

170L Wet End Install 170L Dry End Install Quench & Drain Lip Seal |
Materials
| Faces | TC, SSC |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Metals | EN 1.4401 (316SS), EN 1.4462 (A2205), Other Metallurgies available on request |
| Springs | EN 2.4819 (Alloy C-276) |
Operating Conditions
| Pressure | 711 mm (28") Hg Vacuum to 17 bar g (250 psig) |
|---|---|
| Temperature | -55 to 300 °C (-67 to 570 °F) |
| Speed | 11 m/s ( 2200 fpm ) |
| Notes |
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering. |
Let's talk
For inquires about products, sales, or to request a quote, please contact our Sales Office.
Resources
| Name | Download | File type | |
|---|---|---|---|
|
|
Installation Instructions: Chesterton 170L Wet Slurry Seal - Single Cartridge (English) | 1770 KB |
