442/442HP
- Eliminates the need for equipment disassembly during seal installation and red

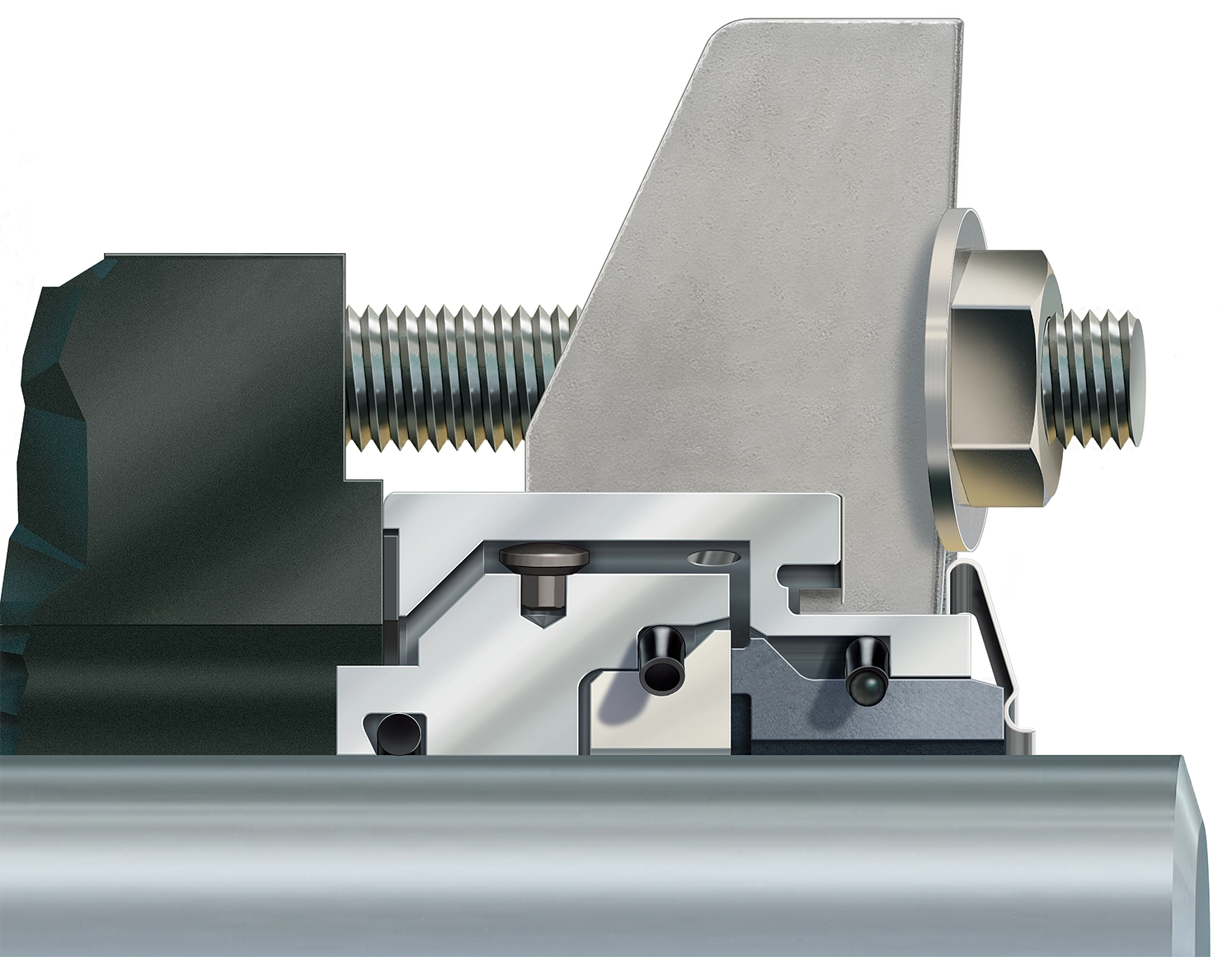

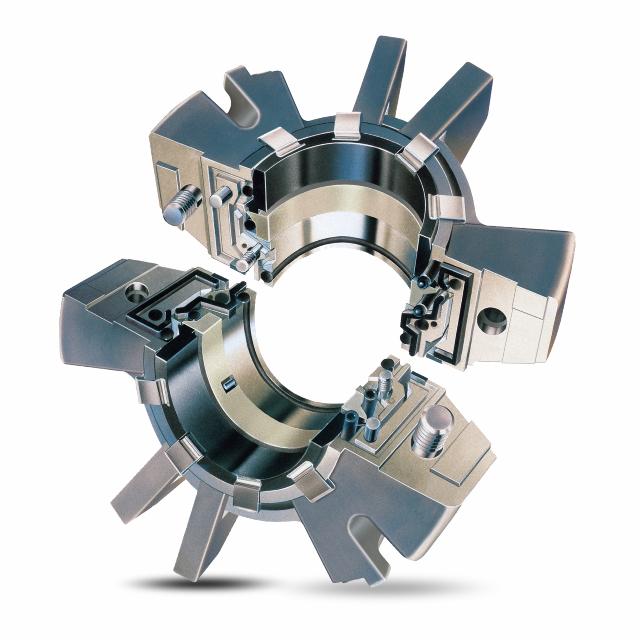

The 442 Split Mechanical Seal is ideal for equipment that is difficult and time-consuming to disassemble, such as large pumps, vertical pumps, and horizontal split case pumps. This proven, compact design can be used in a wide variety of equipment and process fluids.
The high performance split technology allows the 442 to operate from vacuum to high pressures. Its compact design allows for easy installation and a fit advantage on most equipment. Split, low-cost repair kits reduce ongoing maintenance costs even further. Designed with the installer in mind, the ball-and-socket O-Rings provide a quick and easy seal without the use of adhesives. Captive screws cannot fall out, making installation straightforward and reliable.
Note: The 442HP includes additional set screws, increasing the pressure capability of the seal to 30 bar g (450 psig).
Product Features
-
- Easy and fast to install without equipment disassembly
- Proven design with superior performance
- Designed for simple installation in large equipment
Technical Data
| Size Range | 25 mm to 915 mm (1.000 inch to 36 inch) |
|---|---|
| Applicable Standards and Approvals | ISO-3069-S, ASME B73.1, ASME B73.2, NSF61, ATEX |
| Variants |
442HP - High Pressure Holder 442M - Split Mixer Seal 442PR - Pumping Ring |
Materials
| Faces | CB, RSC, CR |
|---|---|
| Elastomers | FKM, EPDM, FEPM, FFKM |
| Metals | EN 1.4401 (316SS), Other Metallurgies available on request |
| Springs | Elgiloy® |
Operating Conditions
| Pressure | 711 mm (28") Hg Vacuum to 20 bar g (300 psig) |
|---|---|
| Speed | 20 m/s ( 4000 fpm ) |
| Notes |
Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering. |
