442C

Enhanced design for simple installation and greater sealing reliability

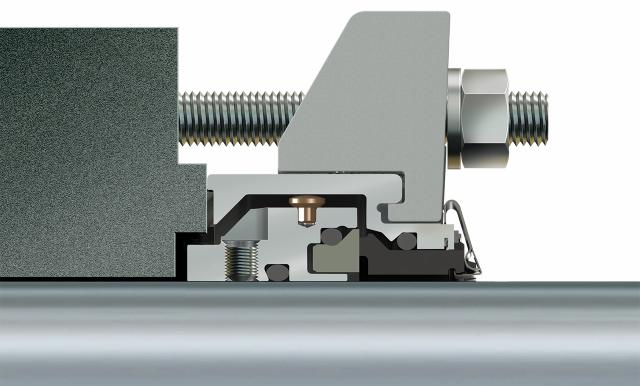

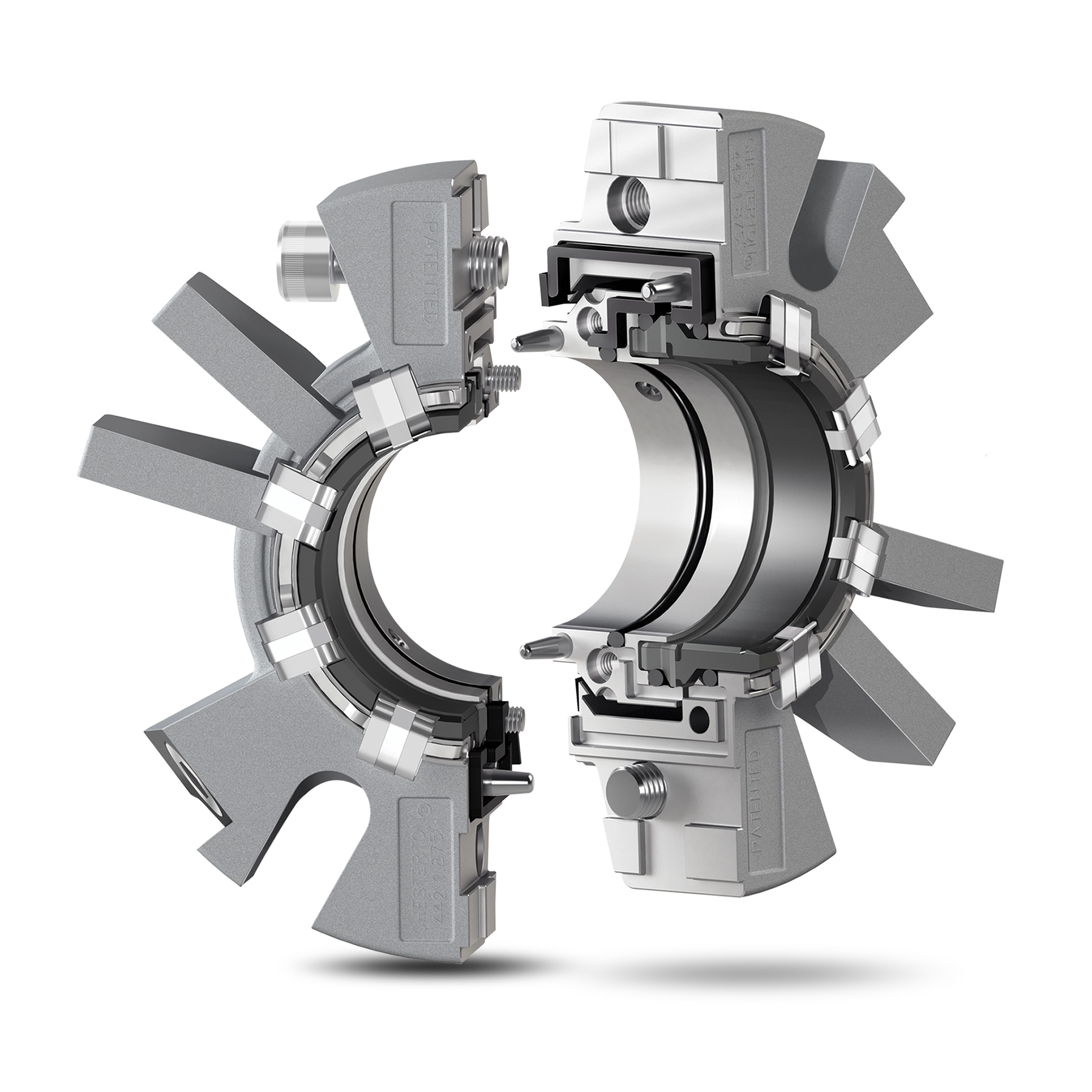

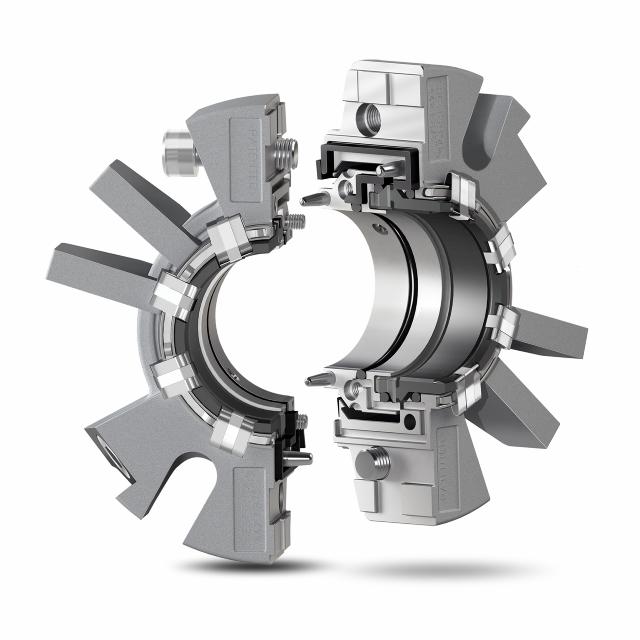

The 442C Cartridge Split Mechanical Seal is the latest innovation in split seal technology combining superior performance with the ease of installation of a cartridge split seal. Our split seal technology addresses the inherent limitations found in conventional cartridge split seal designs by minimizing installation complications and excessive leakage. As with all split seals, it offers easy installation and replacement without the need for teardowns.

The 442C design also offers maximum installation flexibility with its short axial length and flexible gland positioning. It simplifies split mechanical seal repair by using a standard spare parts kit, enabling you to lower your inventory costs to maintain operations.



Product Features

  • Simplified split seal installation—without equipment disassembly
  • Innovative cartridge split design with superior performance
  • Compact gland design fits most rotating equipment

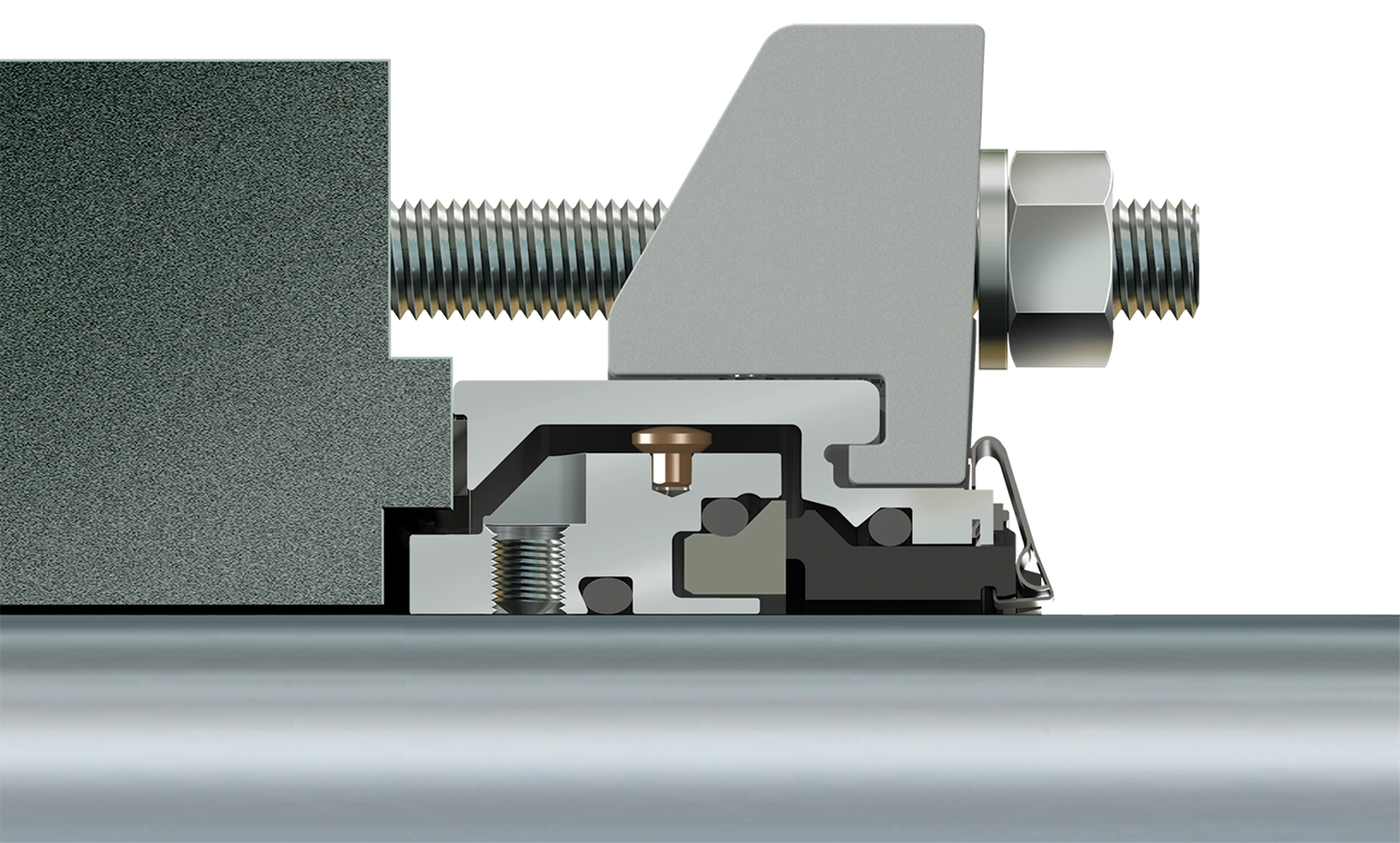

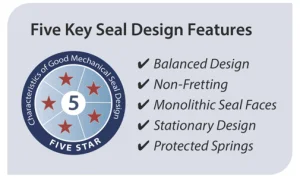

Five Key Seal Design Features

Technical Data

Size Range 25 mm to 195 mm (1.000 inch to 7.75 inch)
Applicable Standards and Approvals ISO-3069-S, ASME B73.1, ASME B73.2, NSF61, ATEX

Materials

Faces CB, RSC, CR
Elastomers FKM, EPDM, FEPM, FFKM
Metals EN 1.4401 (316SS), Other Metallurgies available on request
Springs Elgiloy®

Operating Conditions

Pressure 711 mm (28") Hg Vacuum to 30 bar g (450 psig)
Speed 20 m/s ( 4000 fpm )
Notes

Seal pressure capabilities are dependent on the fluid sealed, temperature, speed, and seal face combinations. For operation outside the limits and additional materials consult Chesterton Mechanical Seal Engineering.
