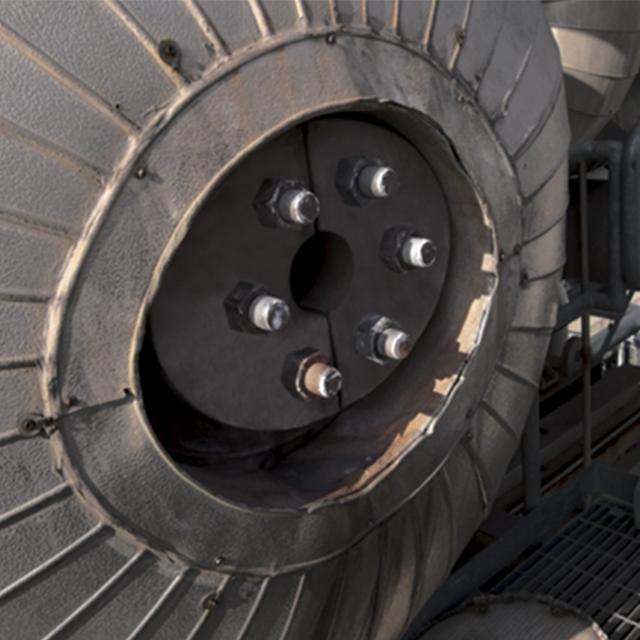

SteelTrap Manway Gaskets
- Encapsulated Within the Stainless Steel Metal Carrier, Enhanced Reliability
Improper manway sealing can result in a door gasket failure and significant safety risks. The SteelTrap gasket technology is designed to encapsulate the graphite sealing elements within the stainless steel metal carrier, resulting in enhanced reliability. It is applicable for use in steam to (650˚C) 1200˚F and pressures to 415 bar g/6000 psig.
Please contact your local Chesterton Representative to help you select the best product for your application.
Product Features
-
- Thin design and soft sealing material encapsulation provides increased blowout safety
- Replaces sheet gaskets without equipment modification
- Can be manufactured in virtually any shape
Technical Data
| Material |
Metal carrier from virtually any metal with graphite, PTFE, or ceramic sealing elements
|
|---|---|
| Pressure Limit Stationary | 6000 PSIg ( 415 BARg ) |
| Temperature Min | -328 °F ( -200 °C ) |
| Temperature Max | 932 °F ( 500 °C ) |
| Notes |
Steam up to 650°C (1200°F) Inert media -200°C – 900°C (-328°F – 1650°F)
|
| Chemical Resistance (High) | 14 pH |
