377 CarbMax
- Superior Carbon Fiber Packing

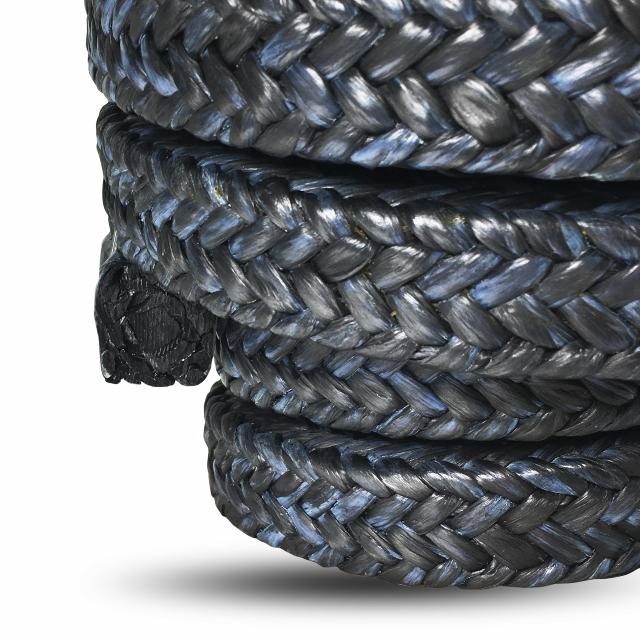

Chesterton 377 CarbMax™ packing combines one of the highest carbon-content fiber yarns using the latest formulations with the newest blocking agents. This yarn provides the enhanced strength and toughness of a continuous multi-filament carbon fiber with additional increased durability.
Product Features
-
- Densely and tightly braided strong resistance to abrasives
- High carbon content for tensile strength
- Low relaxation reduces maintenance
- High thermal conductivity ensures extended packing life
- High chemical resistance
Technical Data
| Applications | Pulpers, stock pumps, agitators, fan pumps, vacuum pumps, condensate pumps, screw feeders, and refiners |
|---|---|
| Material | Continuous filament carbon yarn with a non-silicone proprietary lubricant |
| Pressure Limit Rotating | 500 PSIg ( 34.5 BARg ) |
| Speed Max | 15 m/s ( 3000 fpm ) |
| Temperature Max | 550 °F ( 288 °C ) |
| Chemical Resistance (High) | 14 pH |
| Chemical Resistance Notes | except oleum, fuming nitric acid, aqua regia, and fluorine |
