477-1

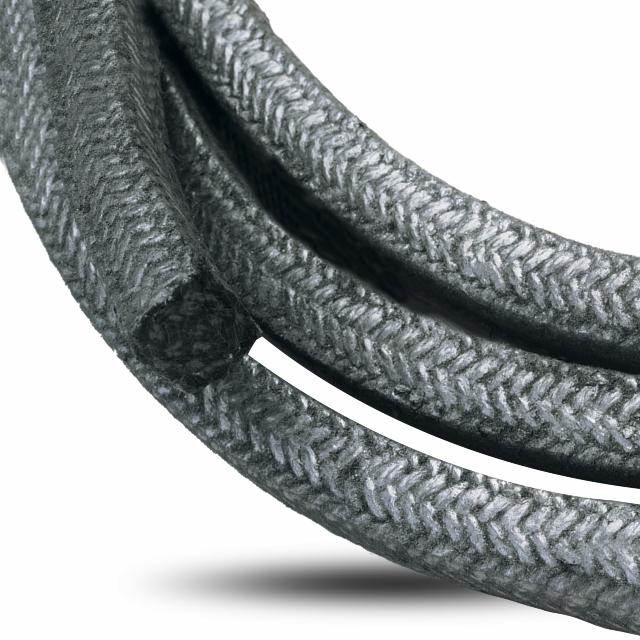

- Carbon Fiber Packing
A carbon yarn formulation combined with superior blocking agents for greater flexibility and sealing.
Product Features
-
- Strong, yet pliable, continuous filament carbon yarn
- Unique inorganic blocking agent inhibits gas/liquid penetration
- Molybdenum-based corrosion inhibitor protects against stem pitting
Technical Data
| Applications | Virtually all pumps and valves against most solvents, gases, and other liquids |
|---|---|
| Material | Low modulus carbon fiber |
| Size Low | 3.2 ( 0.125 inch ) |
| Size High | 25.4 ( 1 ) |
| Pressure Limit Stationary | 3600 PSIg ( 250 BARg ) |
| Pressure Limit Rotating | 200 PSIg ( 14 BARg ) |
| Speed Max | 15 m/s ( 3000 fpm ) |
| Temperature Max | 1050 °F ( 565 °C ) |
| Chemical Resistance (High) | 13 pH |
| Chemical Resistance Notes | Except with strong oxidizers |
