DualPac® 2211

Severe Slurry Packing

​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​​Until now selecting the correct packing for your application has been a balancing act between different materials. Aramids are tough and resilient but have high friction and fret shafts and sleeves, and PTFEs are extremely low friction and kind to shafts but can consolidate and extrude. All of these issues cause a loss of compression, resulting in leakage and requiring packing adjustments.

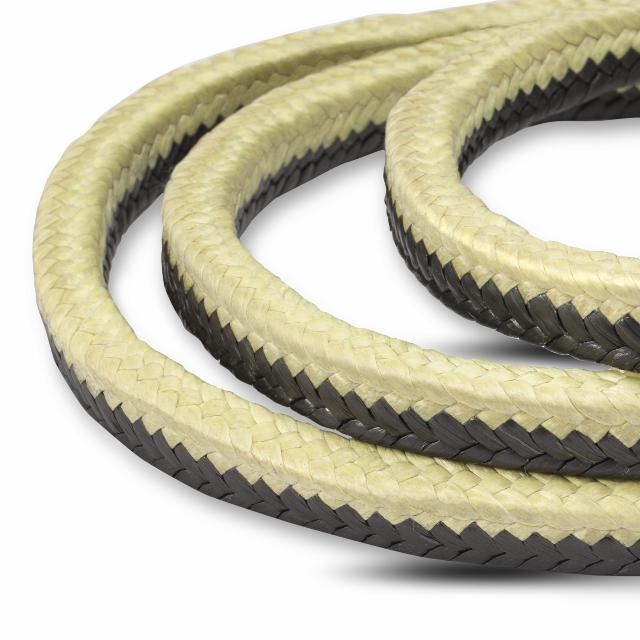

Chesterton​​ DualPac®​ 2211 is built to address these issues by combining two complimentary materials in one packing. Using our patented braiding technology graphite filled ePTFE can be placed against the shaft where it provides superior sealing and low friction, and a high strength and resiliency aramid is placed against the stuffing box bore to resist consolidation without shaft wear.  Both lab and field tests have shown that DualPac requires fewer gland adjustments, resulting in drastically extended life in severe service applications.​



Product Features

  • Achieves significantly longer packing life
  • Low friction and gentle on shafts​
  • Resists consolidation and extrusion​​​​
  • Multiple configurations to eliminate need for end rings
  • Exclusive design using DualPac packing technology​​​​​​​​​​​

Technical Data

Applications Slurry processing applications such as ore slurries, mineral handling, and dewatering tailing pumps.
Material ePTFE and aramid
Size Low 8 ( 0.31 )
Size High 25.4 ( 1 )
Pressure Limit Rotating 300 PSIg ( 20 BARg )
Speed Max 10 m/s ( 2000 fpm )
Temperature Max 500 °F ( 260 °C )
Chemical Resistance 3 pH ( 11 pH )
