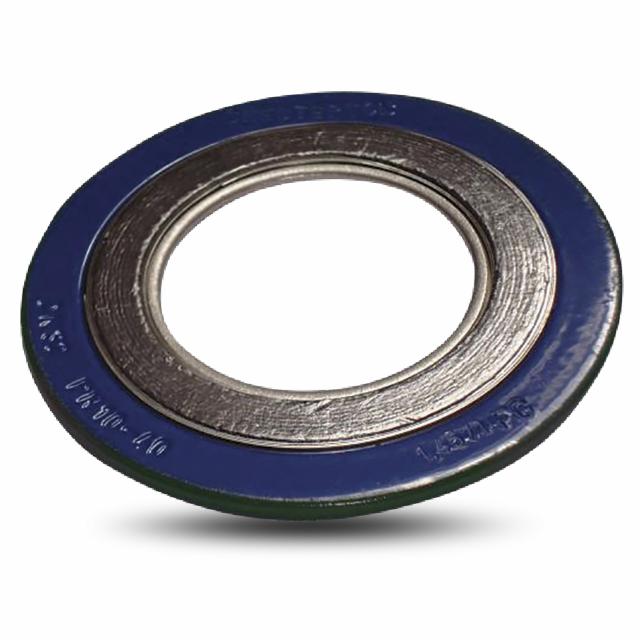

    Spiral Wound

    Economical, Semi-Metallic Gasket
    Excellent emission performance in an all-around general plant gasket.



    Product Features

    • Economical, semi-metallic solution
    • Low emissions
    • DIN and ANSI standard gaskets and custom shapes available
    • Various configurations

    Product Literature

    Technical Data

    Material
    Stainless steel windings with graphite or PTFE sealing layer, stainless steel inner ring, coated carbon steel outer ring (more materials available)
    Applications
    Pipe flanges, vessels, reactors, valve bonnets, and housings
    Presssure Limit 350 bar g (725 psig)
    Temperature Limit graphite sealing layer 450°C (840°F)
    PTFE sealing layer 300°C (570°F)
    Chemical Resistance pH 0 – 14
