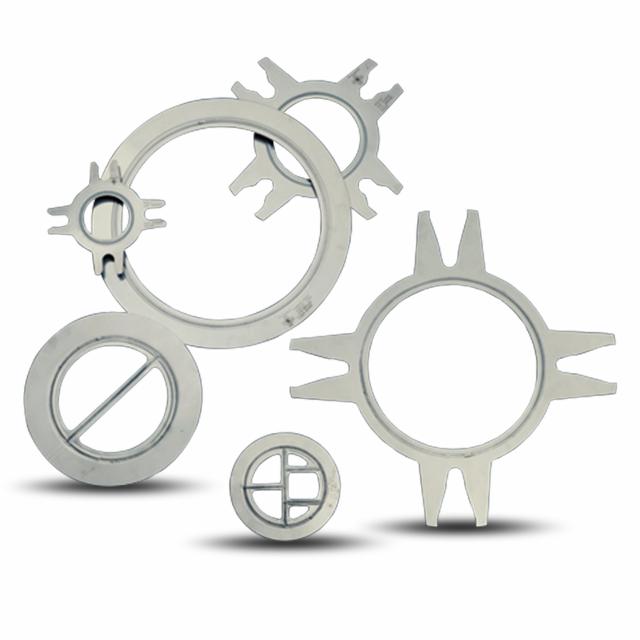

Steel Trap™

High Performance, Semi-Metallic Gasket
Safe and Permanent Sealing of Flanges in Severe Services



Product Features

  • Thin design and soft sealing material encapsulation provide increased blow-out safety
  • Replaces sheet gasketing without equipment modification
  • Can be manufactured in virtually any shape


Technical Data

Applications
Pipe flanges, heat exchangers, vessels, reactors, valve bonnets, and housings

Material
Metal carrier from virtually any metal with graphite, PTFE, or ceramic sealing elements

Pressure Limit Stationary 6000 PSIg ( 415 BARg )
Temperature Min -328 °F ( -200 °C )
Temperature Max 932 °F ( 500 °C )
Notes
Steam up to 650°C (1200°F) Inert media -200°C – 900°C (-328°F – 1650°F)"
