184
- Expanded PTFE Sheet Gasket

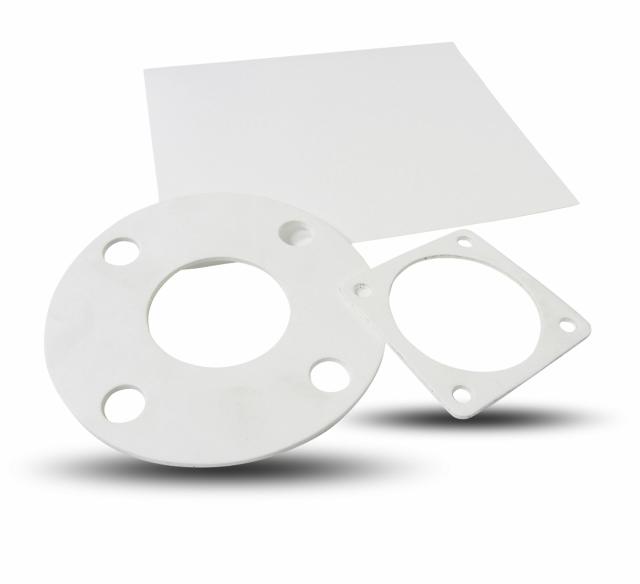

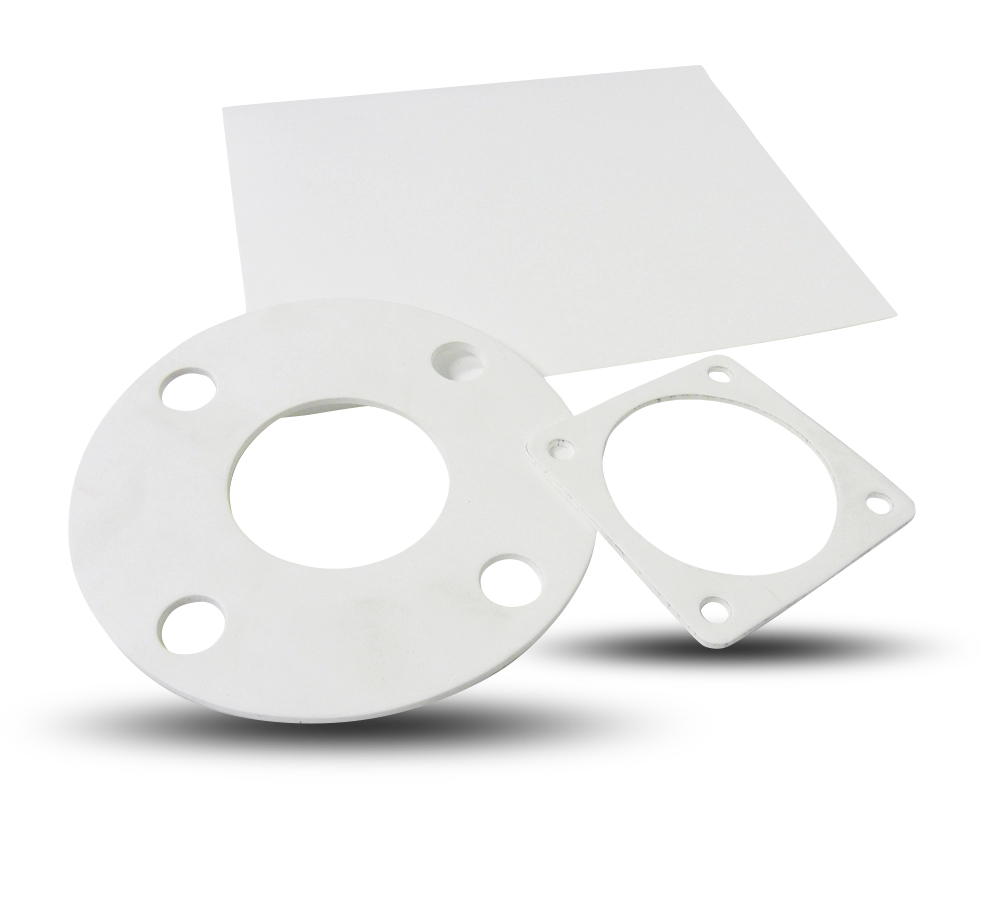

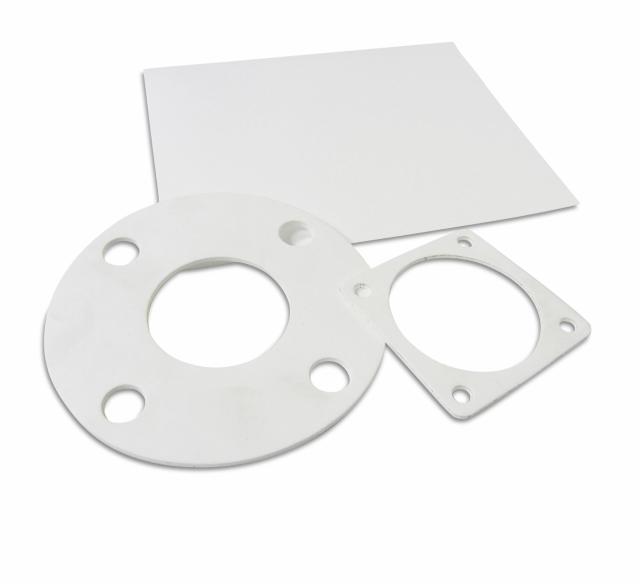

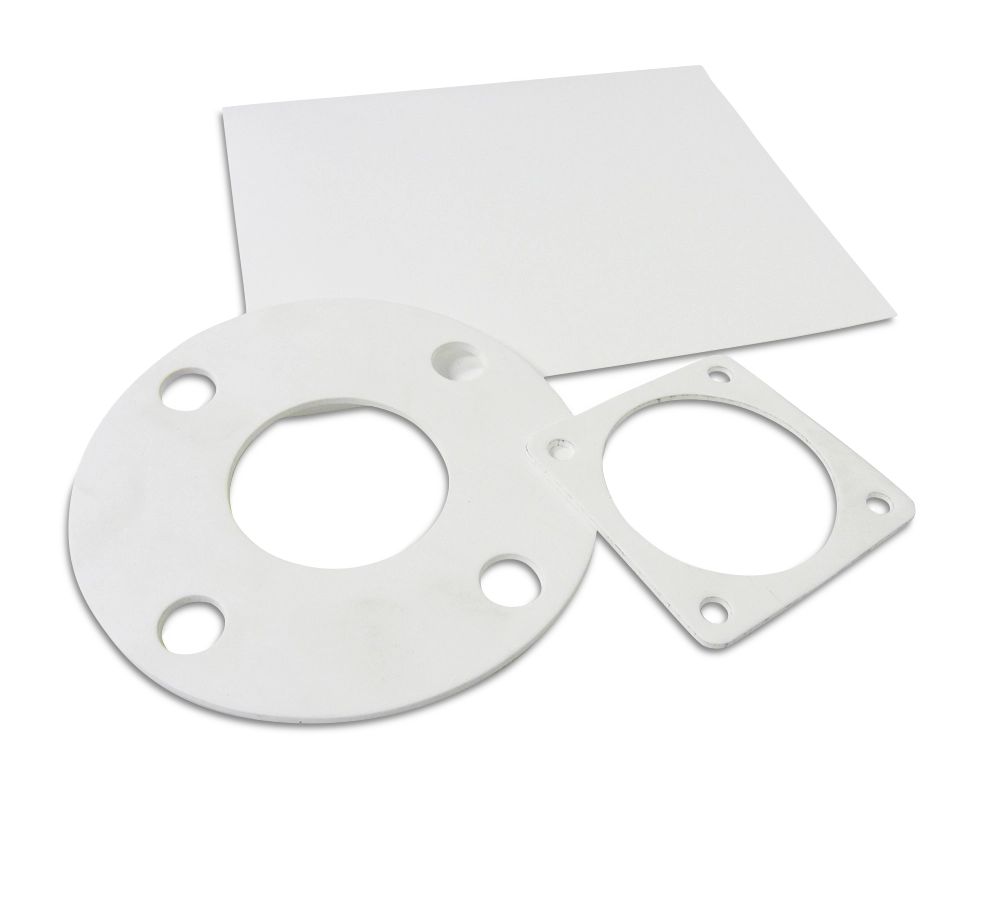

Chesterton 184 is an expanded PTFE gasket with micro-fibrillated internal structure for excellent stability. This structure turns ordinary PTFE into a dimensionally strong, creep-resistant gasketing material. Its benefits include:
Product Features
-
- A long lasting, highly reliable seal with minimum retorque requirements
- Soft and pliable material that conforms to worn or uneven services and effects a tight seal
- Allows for cutting of gaskets using just a pair of scissors or knife
- Soft and pliable to conform to uneven flange service
Technical Data
| Applications | Excellent chemical resistance. For large areas and cut gasketing |
|---|---|
| Presssure Limit | Full vacuum to 210 bar g (3000 psig) |
| Temperature Limit | -267°C – 315°C (-450°F –600°F) |
| Chemical Resistance | pH 0 – 14 inert to all common chemicals except elemental fluorine and molten alkali metals |
| Size Low | 1.6 mm ( 0.0625 inch ) |
| Size High | 3.2 mm ( 0.125 inch ) |
| Notes | Color: White |
