ECS-B
- PTFE Sheet Gasket Suitable for Maximum Compresibility

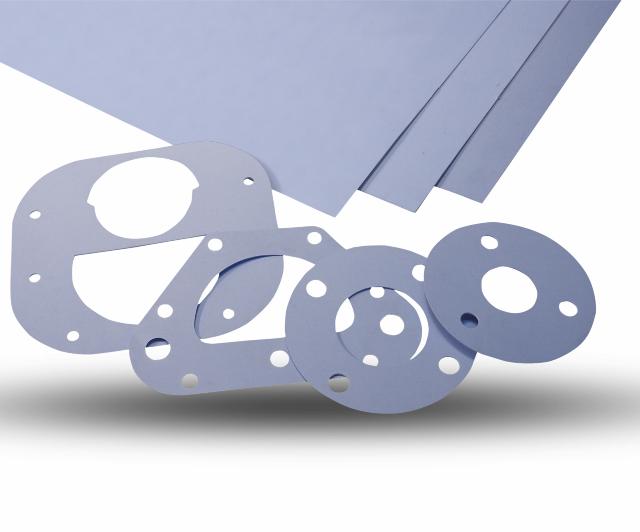

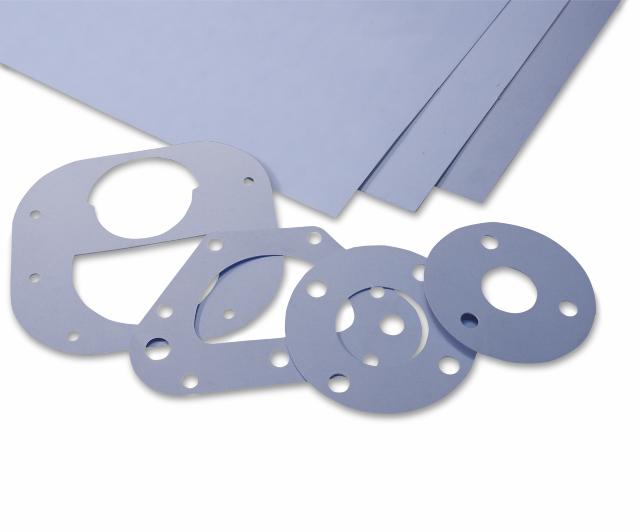

ECS-B is a blue, FDA approved structured PTFE sheet gasket suitable for chemically aggressive services. It is recommended for services with water, steam hydrocarbons, hydrogen peroxide, solvents, refrigerants, cryogenic products, caustics, and strong acids.
Product Features
-
- High chemical resistance
- Excellent in strong acids
- Suitable for aggressive services
Technical Data
| Presssure Limit | 55 bar g (800 psig) |
|---|---|
| Temperature Limit | -210˚C – 260˚C (-346˚F – 500˚F) |
| Chemical Resistance |
pH 0 – 14 Molten alkali metals, fluorine, and certain fluorine bearing compounds. |
| Size Low | 0.8 mm ( 0.031 inch ) |
| Size High | 3.2 mm ( 0.125 inch ) |
