ECS-T

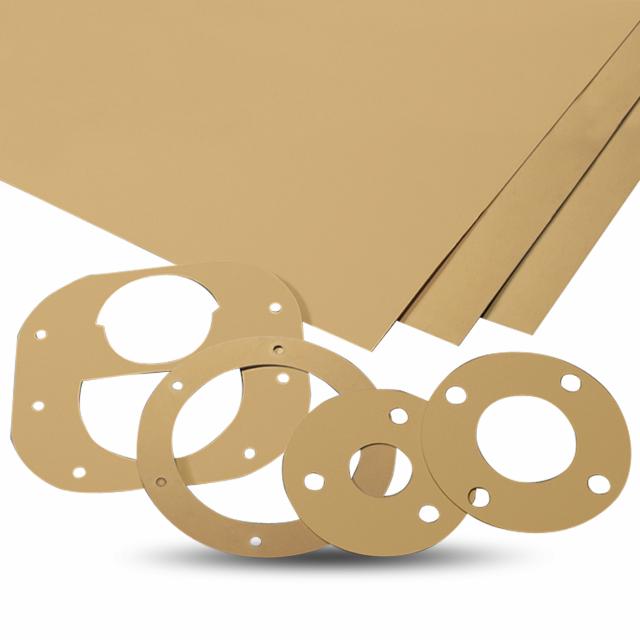

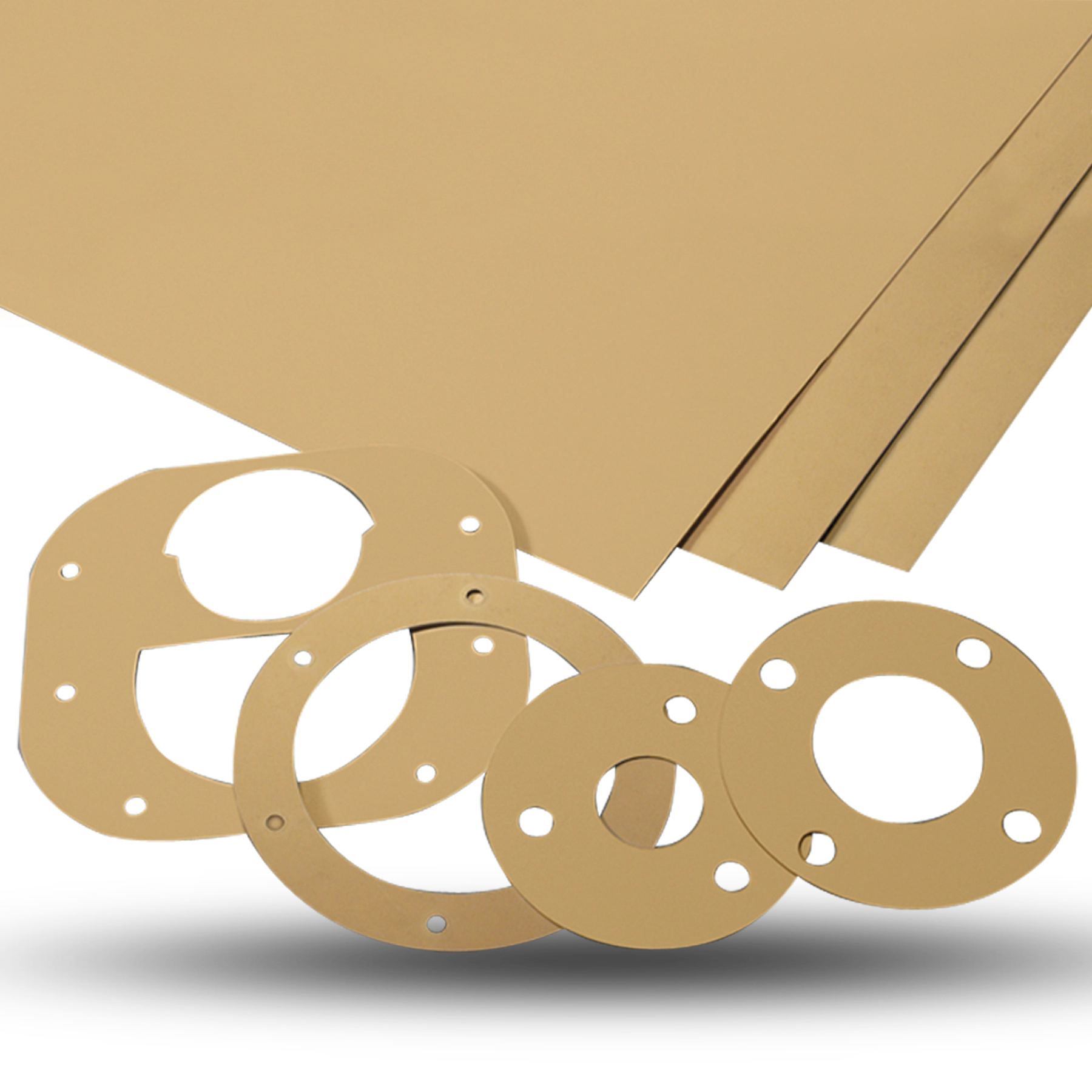

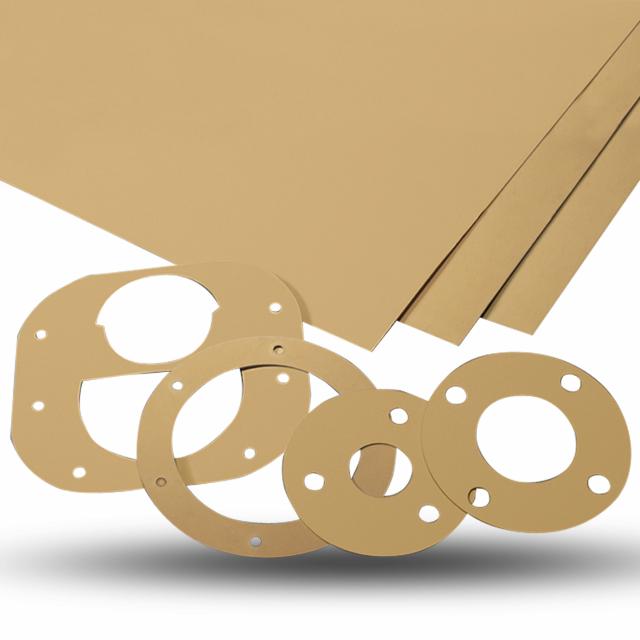

- PTFE Sheet Gasket
Filled PTFE sheet with excellent mechanical properties and outstanding chemical resistance.
Product Features
-
- High chemical resistance
- Excellent in strong acids
Technical Data
| Applications |
High pressure and temperature services, especially in chemical and hydrocarbon plants in strong acids
|
|---|---|
| Material |
PTFE with fillers
|
| Size Low | 1 ( 0.031 inch ) |
| Size High | 3.2 ( 0.125 inch ) |
| Pressure Limit Stationary | 1200 PSIg ( 83 BARg ) |
| Temperature Max | 500 °F ( 260 °C ) |
| Notes |
High pressure and temperature services, especially in chemical and hydrocarbon plants in strong acids
|
| Chemical Resistance (High) | 14 pH |
