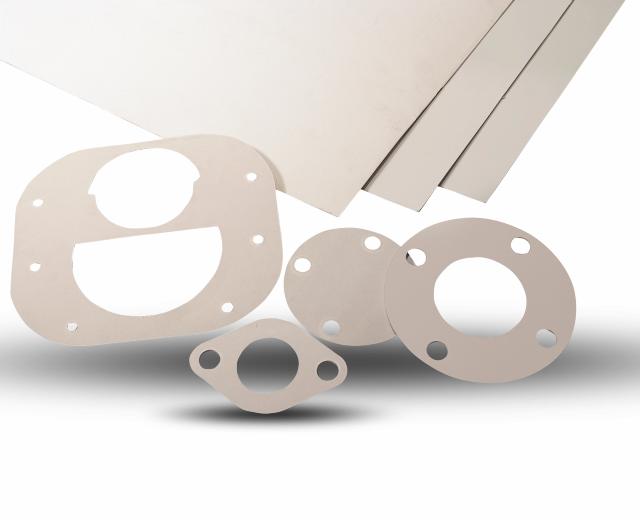

ECS-W
- PTFE Sheet Gasket with Outstanding Chemical Resistance
ECS-W is a white, PTFE sheet gasket suitable for general service in a wide variety of fluids, strong caustics, acids, chlorine, gases, water, steam, hydrocarbons, hydrogen, and aluminum fluoride.
Product Features
-
- High chemical resistance
- Excellent in strong acids
- Suitable for general service in a wide variety of fluids
Technical Data
| Applications |
Suitable for general service in a wide variety of fluids, strong caustics, acids, chlorine, gases, water, steam, hydrocarbons, hydrogen, and aluminum floride |
|---|---|
| Presssure Limit | 83 bar g (1200 psig) |
| Temperature Limit | -210˚C (-346˚F) – 260˚C (500˚F) |
| Chemical Resistance |
pH 0 – 14 Molten alkali metals, fluorine, and certain fluorine bearing compounds. |
| Size Low | 0.8 mm ( 0.031 inch ) |
| Size High | 3.2 mm ( 0.125 inch ) |
