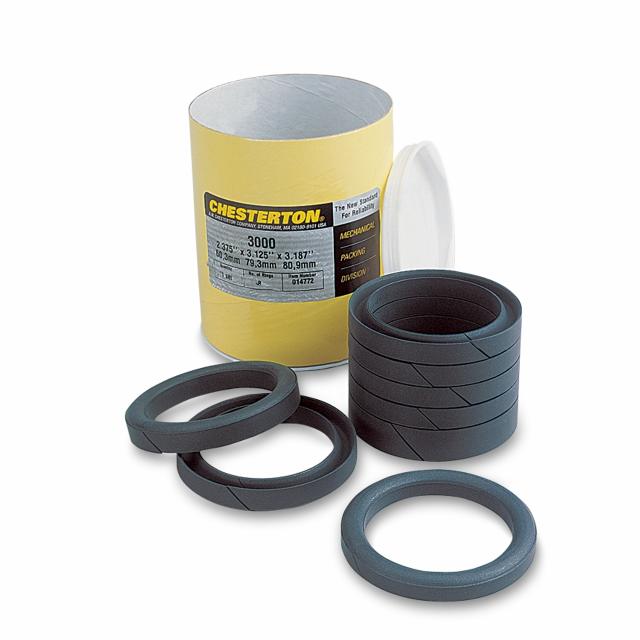

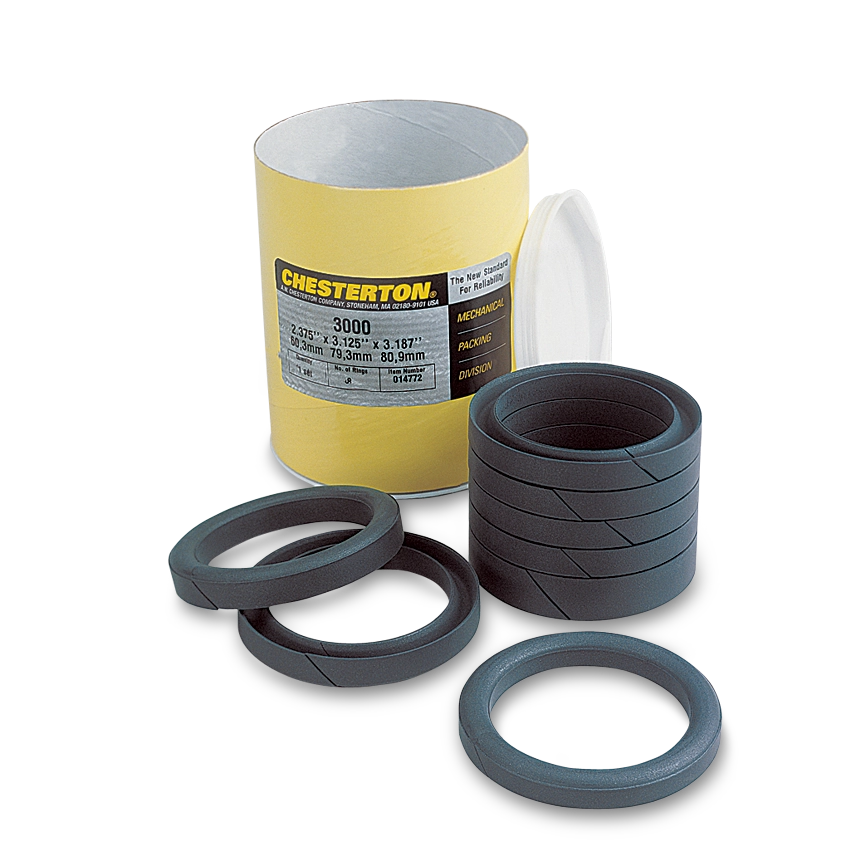

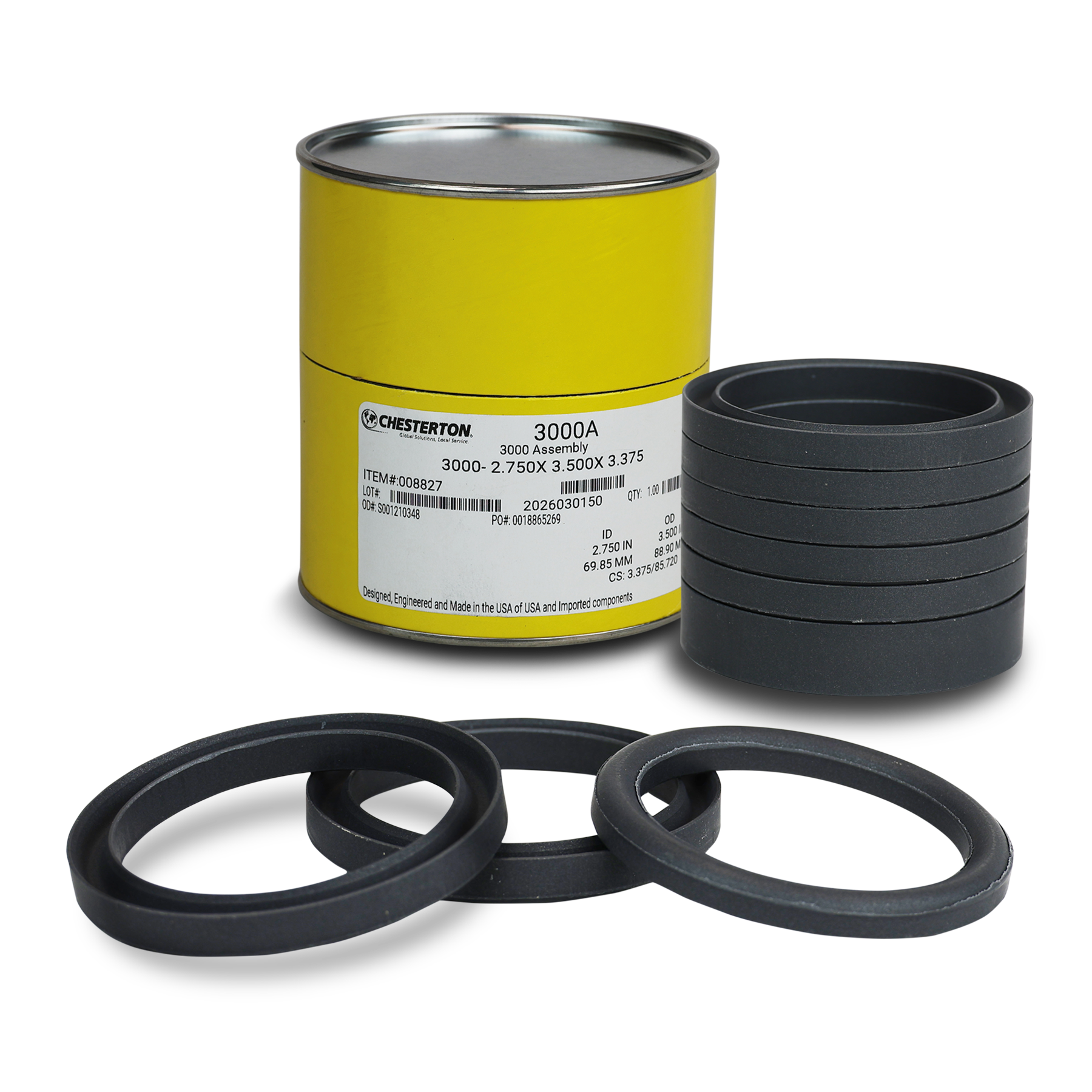

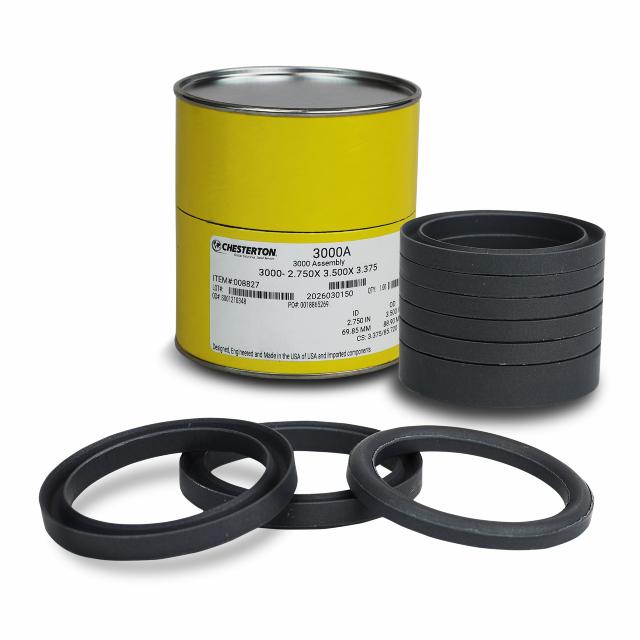

3000
- Sootblower Set
Chesterton 3000 Sootblower Sets are molded from an exclusive mixture containing graphite and PTFE along with other materials. 3000 sets are designed with a thicker than usual top ring to act as a bearing for the set and to resist extrusion. All rings are split to go over the rod without being deformed. Exclusive Chesterton formulation and processing allow rings to slip over rod and return to their molded contour without cracking.
Sealing rings are designed so the top of each ring protects the ring above it. This eliminates the majority of lip damage normally associated with early set failure. Sealing ring lips expand inward and outward as increased gland pressure is applied.
Product Features
-
- Exclusive materials provide resilient, self-lubricating, extrusion-resistant sets
- Resilient tapered lips for positive sealing
- Bendable cut rings for easy installation
- Up to 50% longer life than braided sets; no braided material to wear out or fray away
Technical Data
| Material | PTFE with graphite |
|---|---|
| Applications | Water, steam, acids and alkalies, solvents, and gases |
| Temperature Limit | 260°C (500°F) |
| Chemical Resistance | pH 0 – 14 |
